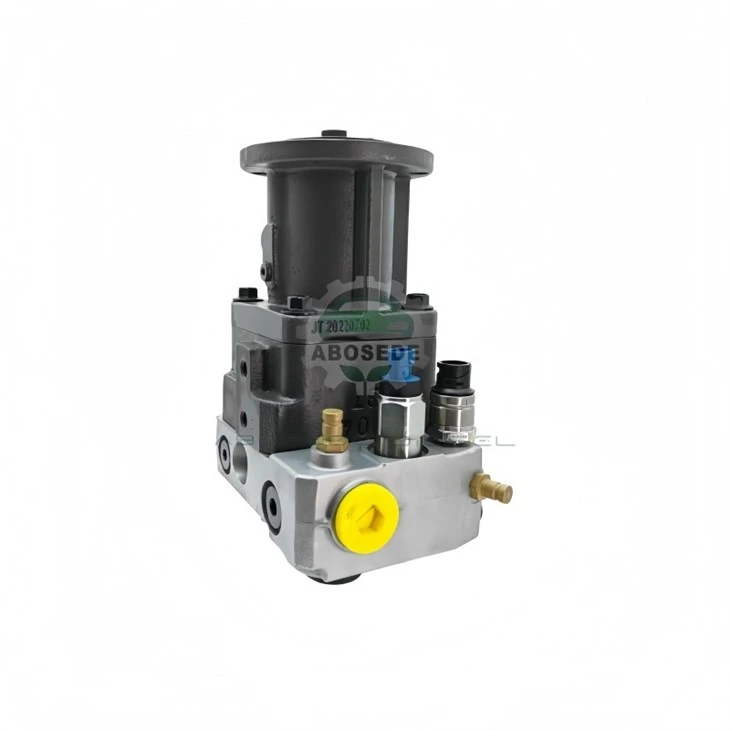

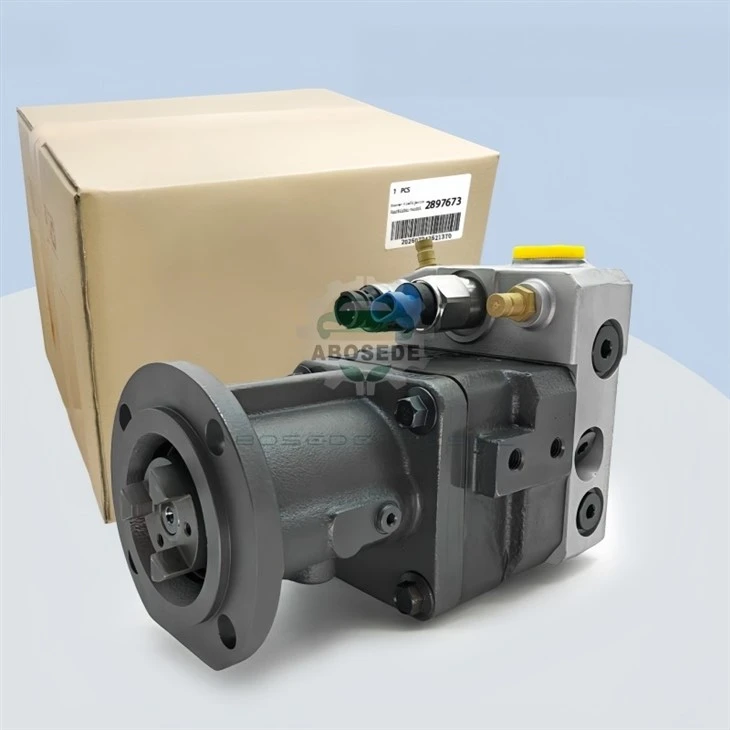

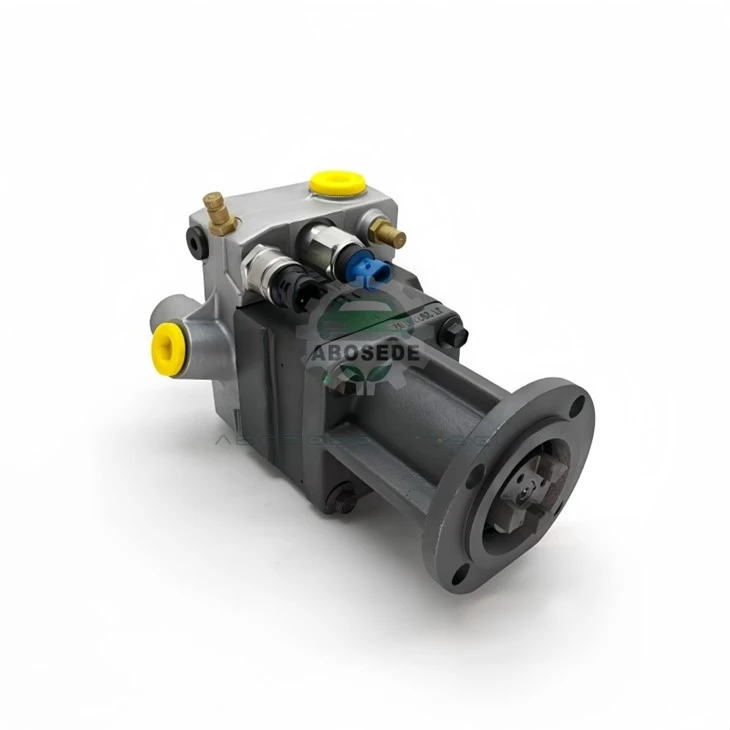

2897673 QSK60 High-Pressure Fuel Pump – Pumping Element Assembly For 60-Litre High-Horsepower Engines

For engines that move mountains - literally - the fuel system must deliver extraordinary volumes of fuel at pressures that would rupture standard components. The QSK60 engine, a 60‑litre V‑16 behemoth producing up to 2,500 hp, demands a fuel pump that is not merely scaled‑up, but fundamentally re‑engineered for sustained high‑load operation. The 2897673 is the high‑pressure fuel pump assembly for the QSK60, featuring a dual‑pumping‑element design that delivers up to 2,200 bar rail pressure. This is not a standard heavy‑duty pump; it is a modular, serviceable unit with replaceable pumping elements, allowing workshops to rebuild rather than replace the entire pump - a critical consideration for mine sites and marine operators where downtime is measured in dollars per minute. This article details the pump's internal architecture, flow characteristics, application mapping, and service procedures for the 2897673.

The 2897673 incorporates two independent pumping elements (plunger‑barrel pairs) operating in parallel. This design provides:

Redundancy: If one element fails, the engine can continue operating at reduced power (limp‑home mode) until a replacement is available.

Capacity: Each element delivers approximately 1,200 mm³/stroke at rated speed, for a combined flow of over 2,400 mm³/stroke - sufficient to fuel a 60‑litre engine at full load.

Balanced loading: The two elements are phased 180° apart, smoothing the torque demand on the camshaft and reducing vibration.

Key pump parameters:

Unlike many high‑pressure pumps that are sealed units requiring complete replacement, the 2897673's pumping elements are serviceable. Each element consists of:

Plunger : Hardened tool steel, ground to ±0.001 mm tolerance, with a spiral‑ground helix for precise fuel cutoff.

Barrel : Nitrided steel, with a matching ground bore (clearance 3‑5 μm at 20 °C).

Inlet valve : A one‑way check valve that prevents fuel back‑flow during the compression stroke.

Outlet valve : A delivery valve with retraction that controls pressure decay after injection, preventing nozzle dribble.

The plunger and barrel are matched pairs - they are ground together and must be replaced as a set. The 2897673 pump assembly includes both elements, but replacement elements are available separately (part number 2897674‑A for the left element, 2897674‑B for the right).

The 2897673 pump head incorporates a pressure control valve (PCV) that regulates the rail pressure by bleeding off excess fuel. The PCV is electronically controlled by the engine ECU, receiving a PWM signal (typically 100‑200 Hz) to modulate the opening.

PCV specifications:

Control range : 300 → 2,200 bar

Response time (0 → 100% duty) : < 50 ms

Leak‑off rate (at 1,600 bar) : 0.5‑1.5 l/min (returned to tank)

Solenoid resistance : 6 Ω (measured across the two pins)

The pump also features a mechanical pressure relief valve (set to 2,300 bar) as a safety backup - a critical feature for engines operating in remote locations where electronic control failure could otherwise cause catastrophic pressure spikes.

The 2897673 is used exclusively on the Cummins QSK60 engine platform, which is found in:

Cross‑reference: The 2897673 is the direct OEM replacement for Cummins part number 2897673. It supersedes earlier part numbers 2868225 and 2872147, which had a different plunger profile and are not directly interchangeable without calibration changes.

Q1: How often should the pumping elements be replaced on a QSK60 pump?
A: In normal service (mining, power generation), the 2897673's pumping elements typically last 6,000‑8,000 hours. However, in marine applications with continuous high‑load operation, they may last up to 12,000 hours. Monitor the leak‑off rate - when it exceeds 1.0 l/min at 1,600 bar (measured at the pump's return port), the elements should be inspected and likely replaced.

Q2: Can I replace just one pumping element on the 2897673?
A: Yes, the elements are independent and replaceable. However, we strongly recommend replacing both elements simultaneously. If one element is worn, the other is likely near the end of its service life. Replacing only one element can cause cylinder‑to‑cylinder imbalance and may confuse the ECU's fuel trim adaptions.

Q3: What causes the PCV on the 2897673 to fail prematurely?
A: The most common cause is contaminated fuel - abrasive particles wear the PCV's spool and bore, causing erratic pressure control. Also, high fuel temperatures (>70 °C) can degrade the solenoid insulation. Ensure the fuel cooler (if fitted) is functioning correctly and that the fuel filters are changed at the recommended interval.

Q4: Can I retrofit the 2897673 to a QSK45 or QSK38 engine?
A: No. The 2897673 is specifically calibrated for the QSK60's displacement and firing order. The QSK45 and QSK38 use different pumps (part numbers 2897670 and 2897671 respectively) with different plunger diameters and delivery curves. Installing the wrong pump would cause severe over‑fuelling or under‑fuelling.

Q5: What is the correct method to prime the pump after a filter change?
A: Use the manual priming pump (if fitted) and pump until you feel firm resistance, then pump 5‑6 more times. Alternatively, cycle the ignition key to activate the lift pump for 20‑30 seconds. Do not rely on cranking the engine to prime the pump - the injection pump is not designed to operate without fuel; it will suffer rapid wear.

Q6: How do I check if the pumping element is worn without removing it?
A: Measure the leak‑off rate at the pump's return port at idle. If the leak‑off exceeds 1.0 l/min at 1,600 bar, the elements are likely worn. Also, check the fuel trim values in the ECU - if the ECU is compensating by more than ±10% for any cylinder, it indicates a pumping element imbalance.
