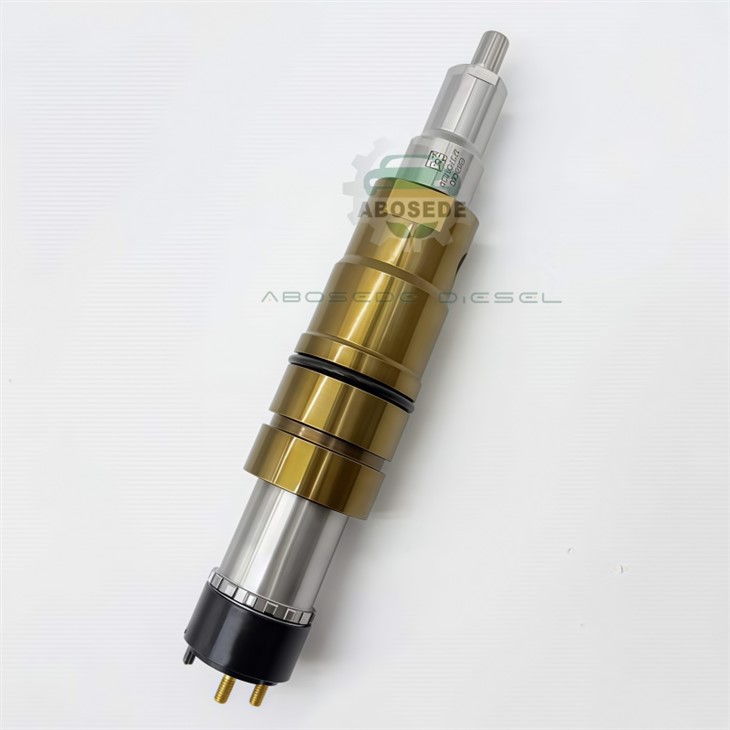

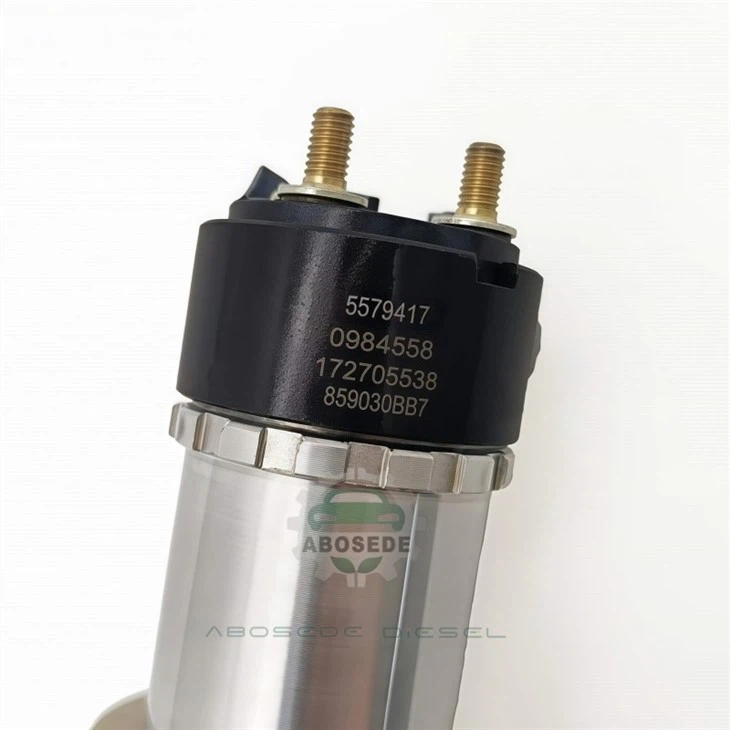

Cummins 5579417 Fuel Injector – Precision-Calibrated XPI Injector For ISX15/QSX15 Heavy-Duty Diesel Platforms

In modern high-pressure common rail (HPCR) systems, injector selection is no longer just about "fitment"-it's about calibration compatibility, spray uniformity, and ECU communication integrity. The Cummins 5579417 fuel injector is engineered specifically for EPA10-era ISX15 and QSX15 engines, where injection timing precision and fuel atomization directly impact emissions compliance and fuel economy.

Unlike legacy injectors, this model must be evaluated based on trim code synchronization, pressure response curve, and multi-event injection capability-making it a critical decision point for fleet operators and engine rebuilders.



📊 Technical Data & Performance Metrics



Parameter	Specification
Injection Pressure	Up to 2000+ bar (XPI system)
Spray Pattern	Multi-hole precision nozzle
Injection Events	Pilot / Main / Post injection
Electrical Control	ECU-driven solenoid
Response Time	Microsecond-level actuation
Flow Matching	≤ OEM tolerance (varies by supplier)

Advanced aftermarket variants even achieve spray variance below 2%, significantly improving cylinder balance and combustion efficiency.







In the Cummins XPI system:

High-pressure pump delivers fuel to common rail

ECU calculates injection timing & quantity

Injector (5579417) executes multiple injection events

Atomized fuel combusts with optimized air-fuel ratio

➡️ The injector acts as the final precision gatekeeper of combustion quality.





Common failure triggers:

Fuel contamination (water/particles)

Internal leakage (seal wear)

Electrical coil degradation

Best practices:

Use high-quality diesel filtration systems

Perform periodic injector balance tests

Monitor rail pressure & return flow rates





With tightening emissions regulations (EPA10 and beyond), injectors like 5579417 are critical for:

Reducing NOx and PM emissions

Maintaining fuel efficiency under load

Supporting EGR and aftertreatment systems

➡️ It's not just a spare part-it's a core emissions control component.



1. Can I install a single 5579417 injector without replacing the full set?

Technically yes, but not recommended. Flow imbalance may cause uneven combustion and long-term engine stress.

2. Do I need to program the injector after installation?

Yes. TRIM code calibration is essential for ECU synchronization and optimal performance.

3. What's the difference between 5579417 and 2872405?

They are cross-referenced and often interchangeable, but always verify engine serial number compatibility.

4. How do I identify injector failure early?

Look for:

Rough idle

Increased fuel consumption

White/black smoke

5. Is remanufactured 5579417 reliable?

Yes-if sourced from OEM-standard suppliers with full testing and warranty.

6. What happens if spray pattern is inconsistent?

It leads to incomplete combustion, higher emissions, and potential piston damage over time.
