Cummins 2894920 Common Rail Injector For ISX15 CM2250 – Advanced Fuel Delivery Unit For Emission-Critical Diesel Engines | OEM Precision & System Stability

In the evolution of heavy-duty diesel engines, injector selection has moved beyond hardware-it's now about how well the injector integrates with ECU calibration logic.

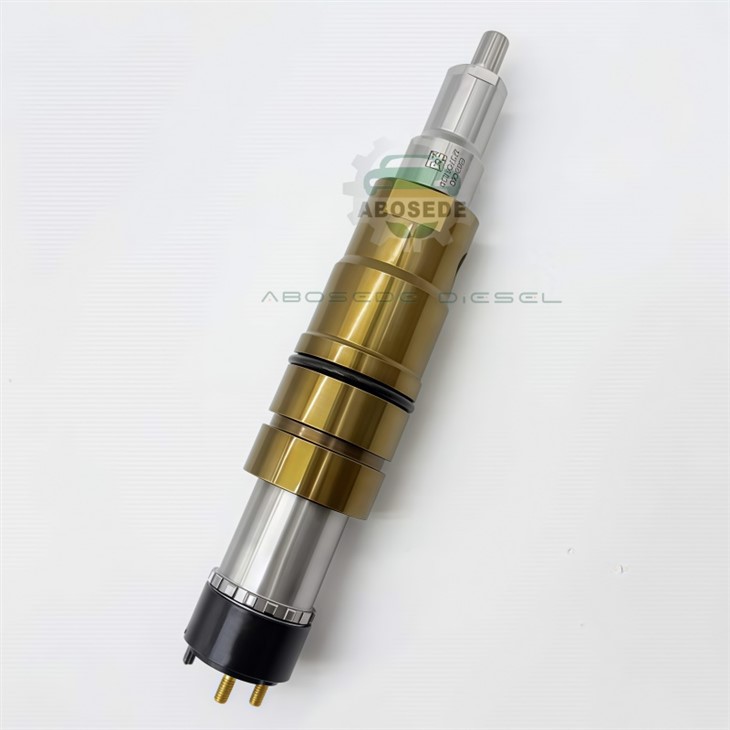

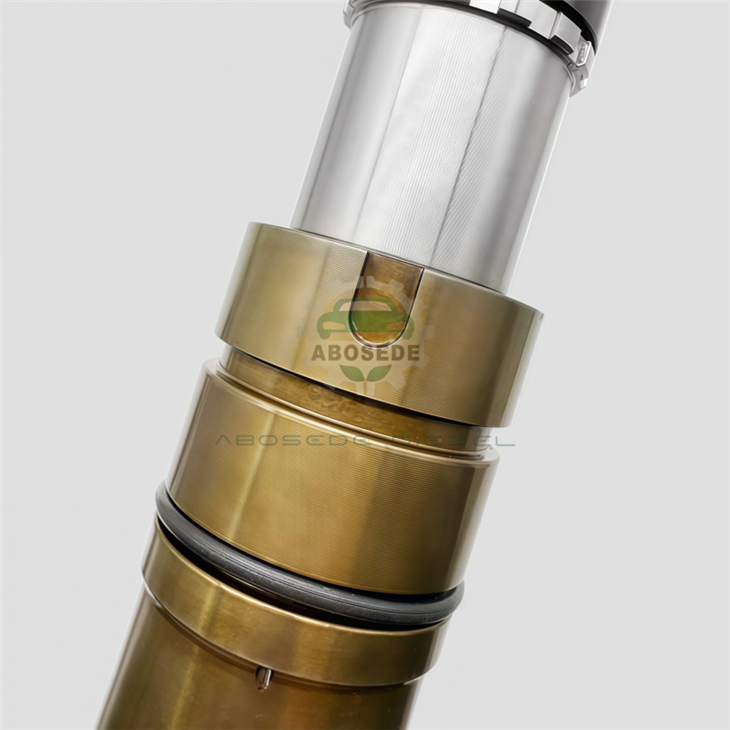

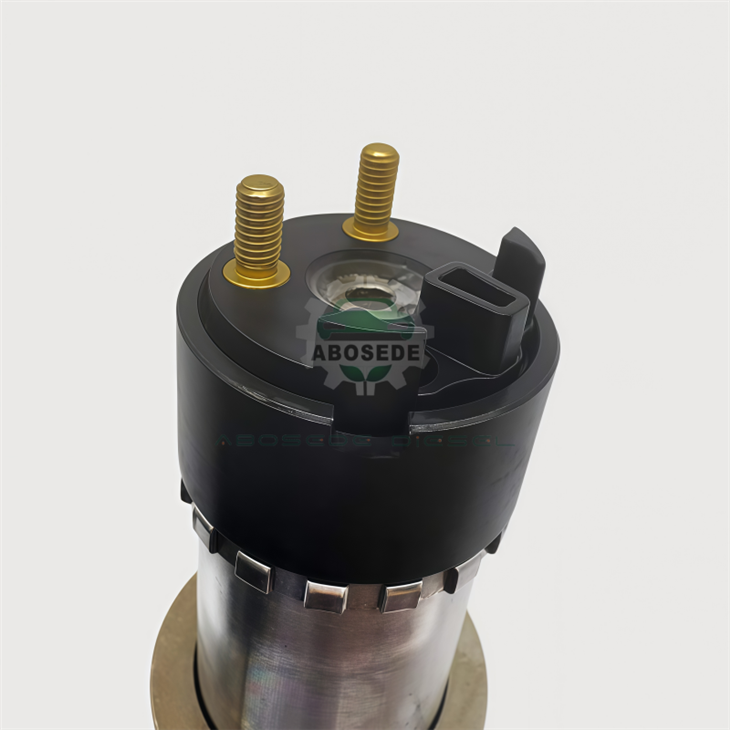

The Cummins 2894920 injector is widely recognized in the North American and European markets as a calibration-sensitive component, designed to work seamlessly with advanced ECM strategies in ISX15 CM2250 engines. Rather than focusing on maximum injection volume, this injector is selected for its ability to translate ECU commands into highly accurate combustion events.

👉 In simple terms:
This injector is chosen when software precision must be perfectly matched by hardware execution.



📊 Technical Specifications & Functional Data



Parameter	Specification
Part Number	2894920
Injector Type	High-pressure common rail
Control System	Electronic solenoid
Max Rail Pressure	~2500 bar (≈36,000 psi)
Engine Platform	ISX15 CM2250
Emission Level	EPA 2010 / Euro V equivalent
Injection Mode	Multi-event (pilot/main/post)
Fuel Type	ULSD (Ultra-Low Sulfur Diesel)

This injector is part of the integrated fuel system developed by Cummins Inc., a global leader in diesel engine and component technology operating across more than 190 countries .





Within the high-pressure common rail architecture, 2894920 acts as a digital-to-mechanical converter:

Key Functions:

Converts ECU signals into precise fuel pulses

Maintains injection timing under varying load conditions

Supports combustion stability across all cylinders

📌 In modern ISX engines, the common rail system allows pressures up to ~35,000 psi, enabling highly controlled fuel delivery and improved emissions performance .





The injector operates under dynamic pressure modulation, not constant peak pressure.

Injection Phases:

Pilot injection → reduces ignition lag

Main injection → delivers controlled torque

Post injection → assists DPF regeneration

Resulting Benefits:

Improved combustion efficiency

Reduced NOx and particulate formation

Enhanced thermal stability

➡️ This aligns with emission strategies used in EPA10 engines with SCR + DPF systems.





✔ Key Maintenance Points

Always use OEM-grade fuel filtration

Monitor injector trim values via diagnostic tools

Avoid fuel contamination (water/particles)

✔ Lifecycle Considerations

Designed for stable long-term calibration retention

Less prone to drift compared to older injector designs

⚠️ Industry Note:
Even small contamination can disrupt spray pattern accuracy, directly affecting ECU calibration.



1. What makes 2894920 different from standard injectors?

It is optimized for ECU synchronization, not just fuel delivery.

2. Does it improve engine response?

Yes, it enhances real-time combustion accuracy, improving throttle response.

3. Can it reduce emission-related fault codes?

Yes, by maintaining stable combustion, it reduces DPF and SCR-related inconsistencies.

4. Is it suitable for remanufactured engines?

Absolutely-it helps restore original calibration behavior.

5. How important is injector coding?

Critical-without coding, the ECU cannot optimize injection timing and quantity.

6. What is the main risk of using low-quality alternatives?

They may cause inconsistent spray patterns and calibration errors, leading to higher emissions.
