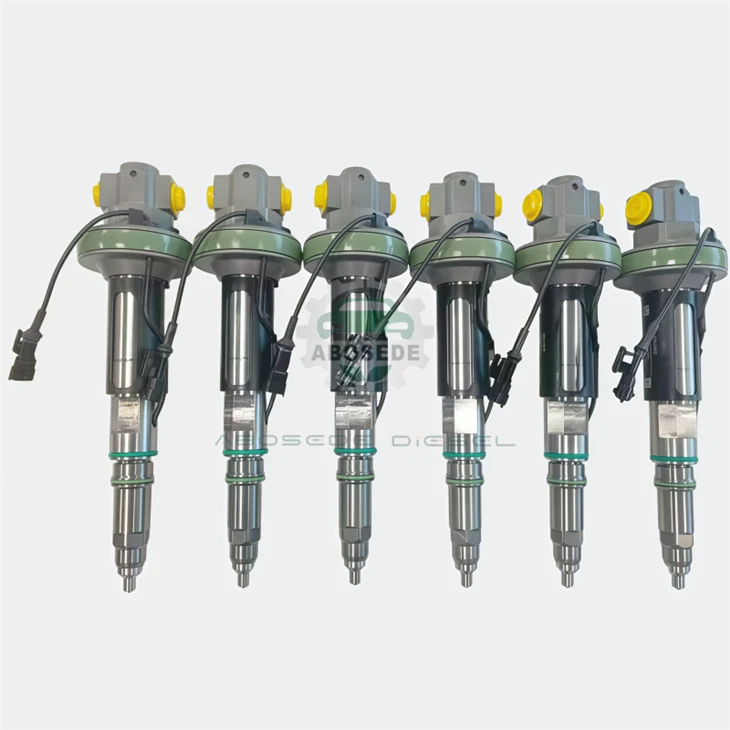

Genuine MCRS Diesel Injector F 00B J00 006 For Cummins QSK19/38/50 | High-Pressure Fuel System Component

In the realm of heavy-duty industrial power-spanning mining haul trucks, marine propulsion, and locomotive shunting-the QSK19 engine stands as a titan. At the heart of its performance is the Modular Common Rail System (MCRS).

The F 00B J00 006 is not merely an injector; it is a precision-calibrated hydraulic gatekeeper. Unlike traditional unit injectors, this MCRS component decouples pressure generation from engine speed. Whether at idle or peak torque, it maintains a surgical level of atomization, ensuring the 19-liter powerhouse meets stringent Tier 4/Stage IV emission standards without sacrificing "uptime."





One of the unique advantages of this specific part number is its cross-platform versatility. When selecting parts for a fleet, engineers look for interoperability to reduce inventory costs.

Primary Application: Cummins QSK19 (Inline-6).

Secondary Application: QSK38 (V-12) and QSK50 (V-16) high-output variants.

Sector Utility: * Mining: 100-ton haul trucks and hydraulic excavators.

Marine: Commercial workboats and offshore power gensets.

Rail: Shunting locomotives requiring rapid load pickup.

Selection Logic: If your diagnostic tool (CM850/CM2350 ECM) reports high-pressure rail instability or "Cylinder Misfire" codes on large-displacement Quantum series engines, verifying the F 00B J00 006's solenoid resistance and needle lift is the first step in the "Precision Overhaul" protocol.





The F 00B J00 006 is engineered to withstand the extreme thermal and mechanical stresses of high-pressure combustion.

Feature	Technical Specification / Advantage
System Pressure	Capable of managing up to 1600–2200 bar injection pressure.
Atomization Technology	Multi-hole nozzle design for optimal fuel-air mixing.
Response Time	Micro-second solenoid actuation for multiple injection events.
Material Composition	Ferrous Cast Ductile (FCD) compatible coatings to resist cavitation.





In a common rail system, impurities are the enemy. The clearance between the needle and the body in an F 00B J00 006 is measured in microns-thinner than a human hair.

Filtration Integrity: Always pair this injector with NanoNet® media filters. Standard filters often fail to capture the sub-5-micron particles that cause premature wear on the injector seat.

Installation Protocol: Use the "Three-Stage Torque" method. Over-tightening the injector hold-down clamp can distort the body, leading to internal binding.

Diagnostic Tip: Use a "Fuel Flow Rating" test to compare return-flow rates. High return flow usually indicates internal wear of the valve set within the F 00B J00 006, leading to hard starts.







Q1: How do I distinguish between a Genuine Bosch/Cummins F 00B J00 006 and a low-quality aftermarket copy?

A: Look at the laser etching. Genuine units feature deep, crisp QR codes and serial numbers. More importantly, the internal spring tension in genuine units is calibrated to a tolerance of $\pm 2\%$, whereas copies often vary by up to $15\%$, causing cylinder imbalance.

Q2: Can the F 00B J00 006 be used in Tier 2 engines if the part number matches?

A: Yes, but with a caveat. While the physical fitment is the same, the ECM calibration must be checked. The MCRS logic in Tier 4 engines uses different "Pilot Injection" timings that older ECMs might not fully optimize without a software flash.

Q3: What is the most common failure mode for these injectors in marine environments?

A: Water contamination. Even trace amounts of moisture lead to "Instantaneous Flash Corrosion" on the needle tip. We recommend high-efficiency water separators (10-micron) specifically for marine QSK19 applications.

Q4: Is it better to replace one injector or the entire set?

A: For high-horsepower engines like the QSK50, "Balanced Injection" is critical. If one injector has reached its end-of-life (usually 15,000–20,000 hours), the others are likely close. Replacing the full set prevents torsional vibration issues in the crankshaft.

Q5: Does this part include the sealing O-rings?

A: Typically, the F 00B J00 006 is sold as a standalone precision unit. We recommend ordering the specialized high-temperature fluorocarbon seal kit separately to ensure a leak-free high-pressure interface.
