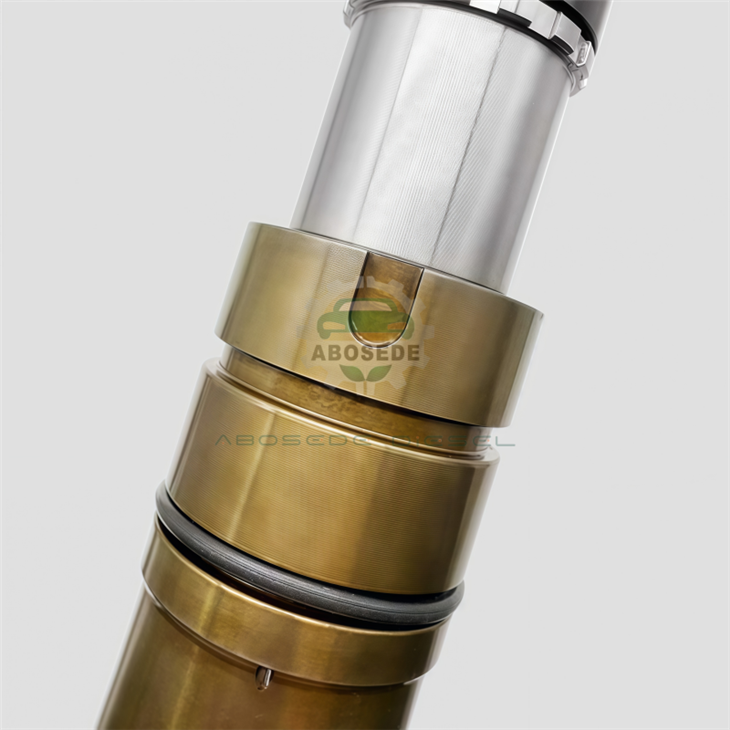

Cummins ISX15 X15 Fuel Injector 5579419 | XPI Common Rail Solution

Modern long-haul fleet management and heavy-duty engine rebuilds demand structural predictability under intense mechanical strain. The Cummins ISX15 Fuel System operates under extreme thermal profiles where minor hydro-eroded nozzles or inaccurate needle responses drastically trigger fleet downtime. Rather than acting as a simple mechanical valve, the Cummins QSK60 Fuel System engineering philosophy-inherited by the high-pressure modular rail frameworks of the X15 and ISX15 series-transforms the 5579419 fuel injector into a high-speed precision instrument.

By utilizing advanced MCRS Injection Technology, this injector ensures immediate atomization even under variable fuel viscosity conditions. For fleet maintenance managers and commercial engine rebuilding facilities throughout Europe and North America, selecting this component provides a reliable strategy to mitigate premature DPF regeneration cycles and eliminate high-load combustion knocking.



🌐 Cross-System Compatibility & Targeted Fitment



The structural integration of the 5579419 extends across several high-displacement platforms configured for stringent emission standards. It serves as an exact drop-in replacement across the following specifications:

Primary Engine Configurations: Cummins ISX15, QSX15, and X15 series (specifically optimized for EPA13 emissions compliance regulations).

ECM Control Architectures: CM570, CM870, CM871, CM2150, CM2250, and CM2350 industrial/on-highway modules.

Interchangeable & Superseded Part Numbers: 5579419PX, 5579419NX, 2897320, 2897320PX, 2897320NX, 4384363, 4384363PX, and 4384363RX.







To guarantee exact integration into high-pressure common rail (HPCR) diagnostic loops, the following technical matrix details the operational limits of the 5579419 platform:

Core Engineering Metric	Specialized Parameter Value
Product Model Identifier	5579419
Injection System Architecture	Extreme Pressure Injection (XPI) High-Pressure Modular Rail
Peak Operational Rail Pressure	Up to $2,400\text{ bar}$ ($34,800\text{ psi}$)
Combustion Standard Target	EPA13 / Euro VI Emission Compliance
Material Composition	Premium Case-Hardened Anti-Friction Alloy Steel
Installation Component Group	Complete kit includes pre-installed top/bottom O-rings and combustion sealing washer
Net Structural Weight	Approximately $3.3\text{ lbs}$ ($1.5\text{ kg}$)





The internal design of the 5579419 injector revolves around high-frequency solenoid actuation coupled with an ultra-precise multi-hole nozzle configuration. Operating within the high-pressure modular rail network, the internal needle valve responds within microseconds to electronic pulses from the ECM.

This responsive actuation allows for multiple injection events per combustion cycle-including precise pre-injection and post-injection phases. The internal sealing chambers feature advanced coatings designed to withstand severe hydraulic stress, significantly reducing the localized cavitation erosion common in lower-tier aftermarket options.





Maximizing the service life of high-pressure common rail injection hardware requires a strict approach to fuel cleanliness. Because the XPI platform utilizes incredibly tight tolerances within the nozzle and command valve assemblies, fuel contamination represents the primary cause of premature wear.

[Fuel Tank] ➡️ [Primary Water Separator (3-Micron)] ➡️ [Secondary Micro-Filter] ➡️ [XPI High-Pressure Pump] ➡️ [5579419 Injector]

Filtration Standard: Always deploy a minimum of 3-micron secondary fuel filters to protect the internal components from abrasive particulate matter.

Installation Best Practice: Always clean the cylinder head injector bore and renew the high-pressure fuel supply connector tubes (such as part number 3685809 or 3685810) to prevent cross-contamination or pressure drops at the inlet joint.

Torque Specifications: Adhere strictly to original factory specifications for the injector hold-down clamp to avoid uneven seating and combustion gas blow-by.



Q1: How does the 5579419 injector handle high-pressure modular rail fluctuations during sudden load changes?

A1: The internal command valve architecture is balanced hydraulically to respond rapidly to shifting rail pressures up to $2,400\text{ bar}$. This micro-second responsiveness dampens pressure spikes, keeping fuel delivery linear and protecting the internal nozzle assembly from structural fatigue.

Q2: What are the main signs that an XPI common rail injector needs replacement on an EPA13 ISX15 engine?

A2: Common symptoms include excessive DPF regeneration frequency, unburned fuel smoke, hard starting under cold conditions, increased cylinder balance variations on diagnostic scans, and high fuel return flow rates caused by internal seal wear.

Q3: Can I install a 5579419 injector kit into an older CM870 or CM871 engine configuration?

A3: While the engine blocks share similarities, this injector is specifically designed for the XPI high-pressure common rail system. Older CM870/CM871 engines utilize HPI-TP dual-overhead-cam mechanical injection systems, making them physically and hydraulically incompatible with this part number.

Q4: What role does MCRS Injection Technology play in lowering emissions and fuel consumption?

A4: It allows the electronic control unit to split fuel delivery into multiple precise events per cycle. This fine-tunes the combustion process, lowers peak cylinder temperatures to reduce NOx formation, and ensures thorough fuel burn to maximize efficiency.

Q5: Why is it highly recommended to replace the fuel supply connector tube when changing out a 5579419 injector?

A5: The high-pressure fuel inlet pipe uses a metal-to-metal crush seal design. Once compressed, it takes the shape of that specific injector inlet. Reusing an old line often leads to microscopic fuel leaks or debris migration, which can quickly ruin the new injector's internal valve.
