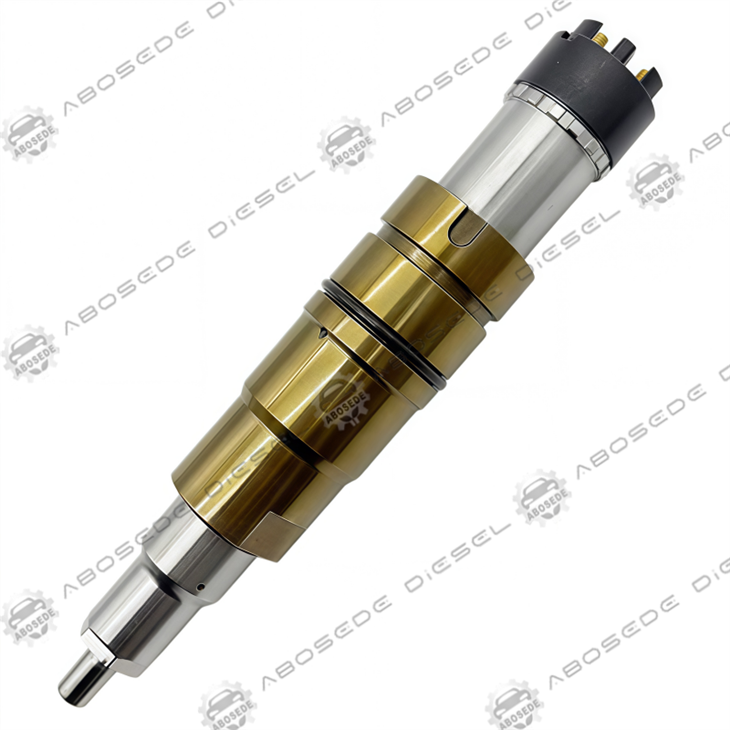

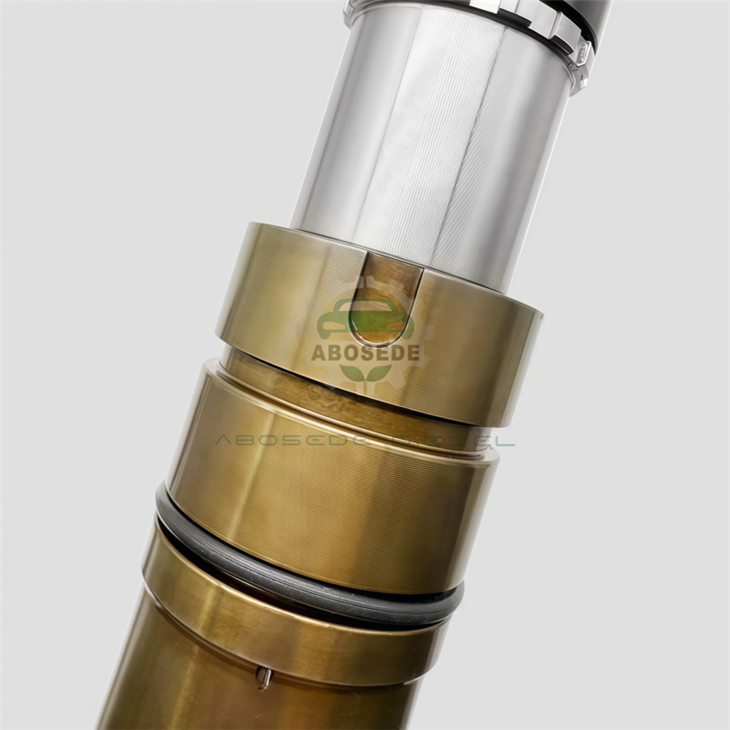

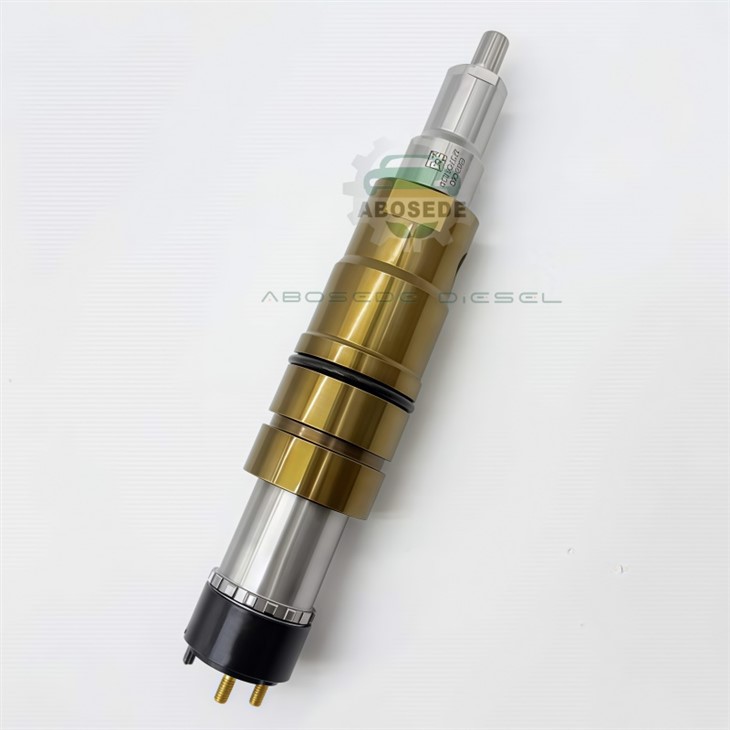

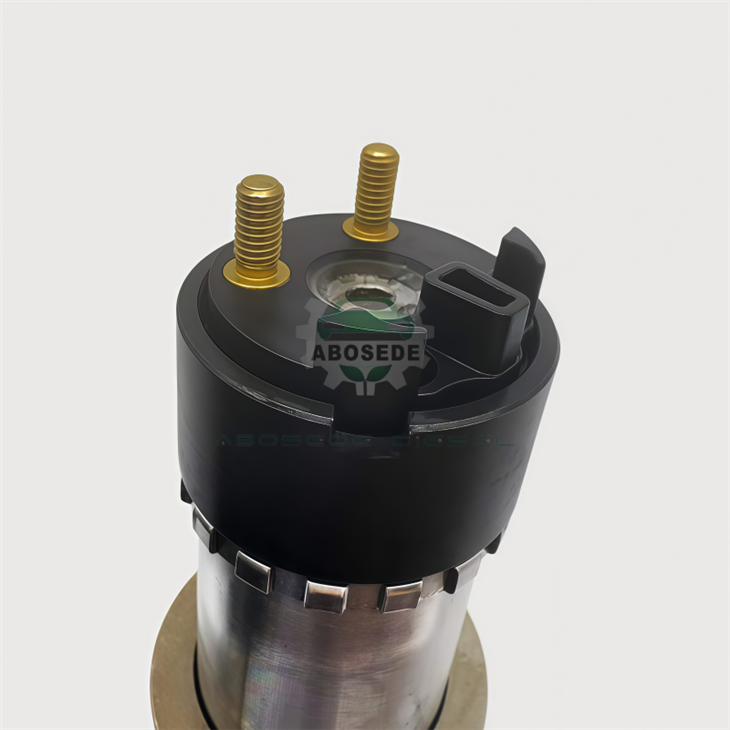

Cummins 4326959 Fuel Injector For ISZ QSZ 6CT8.3 Engines | High-Pressure Common Rail Diesel Injector Replacement

When sourcing injectors for heavy-duty diesel engines, the biggest hidden cost is not the component price-but mismatch risk. The Cummins 4326959 injector is engineered specifically for high-displacement platforms like ISZ and QSZ series, where combustion timing, injection pressure, and ECU calibration must align precisely.

Unlike generic replacements, this injector is designed to integrate into Tier 3 emission-calibrated fuel systems, ensuring optimal atomization under high-load cycles.



🚜 Applicable Engines & Platforms



This injector is widely used across Cummins heavy-duty platforms:

Cummins ISZ 13L engines

Cummins QSZ / QSZ13 series

Cummins 6CT8.3 engines

CM2150 ECU-controlled systems

👉 These engines are commonly found in:

Mining trucks

Long-haul logistics fleets

Construction machinery

Marine auxiliary engines





Parameter	Specification
Injection Type	Electronically controlled common rail
Pressure Range	Up to 1800–2000 bar (typical CR systems)
Fuel Type	Ultra-low sulfur diesel (ULSD)
Response Time	Millisecond-level solenoid actuation
Spray Pattern	Multi-hole precision atomization
Material	Hardened steel body + precision nozzle

💡 Engineering Insight:
High-pressure capability ensures finer atomization, improving combustion efficiency and reducing particulate emissions-critical for Tier 3 compliance.





Within the common rail system, the injector acts as the final execution component:

High-pressure pump generates fuel pressure

Rail maintains constant pressure

ECU sends signal to injector

Injector delivers precisely timed fuel

👉 The 4326959 is calibrated to maintain:

Stable injection timing

Reduced pressure fluctuation

Consistent combustion across cylinders





To maximize injector lifespan:

Replace fuel filters every 15,000–20,000 km

Use clean ULSD fuel

Perform injector calibration after installation

Monitor return flow rate for early failure detection

💡 Recommended replacement interval:
6,000–8,000 operating hours depending on duty cycle



1. Is 4326959 a direct replacement or requires coding?

Most applications require injector coding or ECU adaptation to ensure optimal performance.

2. Can aftermarket injectors match OEM performance?

High-quality aftermarket units can approach OEM performance, but tolerance control and durability vary significantly.

3. What are early signs of injector failure?

Hard starting

Black smoke

Uneven idle

Increased fuel consumption

4. How critical is fuel quality for this injector?

Extremely critical. Poor fuel causes nozzle wear and clogging, reducing atomization efficiency.

5. Does this injector support multiple injection events?

Yes, it supports pilot, main, and post injection cycles, improving combustion smoothness.

6. What engines benefit most from this injector?

Engines operating under continuous heavy load (ISZ/QSZ platforms) gain the most efficiency improvements.
