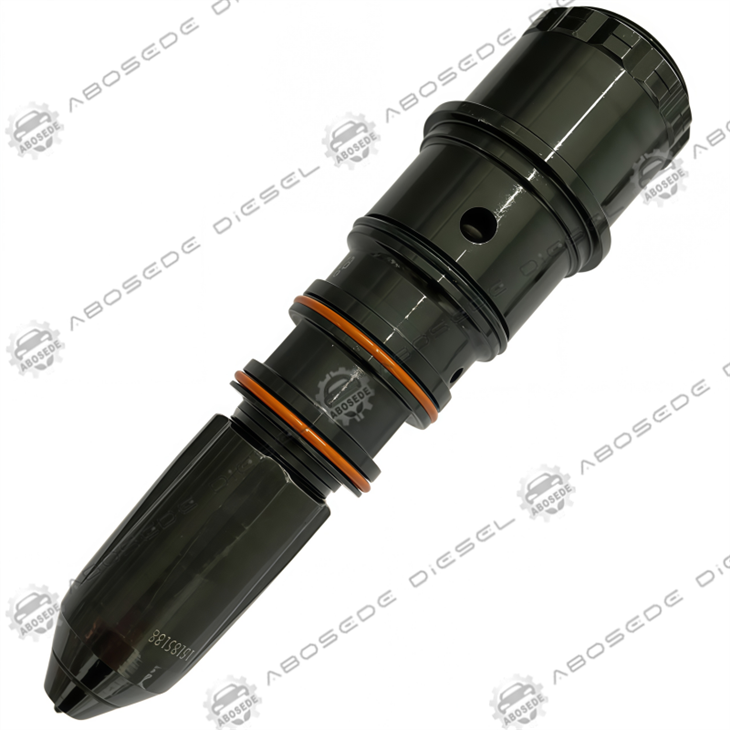

The Speed Of Authority: 4914325 PTN855 Injector & Transient Response



In the high-stakes environment of modern diesel combustion, timing is not just a variable-it is the currency of efficiency. As emission regulations tighten and the demand for instantaneous torque grows, the window for effective fuel delivery shrinks to mere microseconds. The 4914325 PTN855 Injector is engineered to dominate this temporal landscape. This analysis shifts focus from static flow rates to dynamic latency-the critical delay between the ECU's command and the physical opening of the nozzle needle. By minimizing this lag, the 4914325 ensures that the injection event aligns perfectly with the piston's position, maximizing the conversion of chemical energy into mechanical force while strictly adhering to Tier 4 Final and Stage V emission mandates.



🔍 Technical Overview & Application Scope



The PTN855 series is synonymous with durability, but the 4914325 variant distinguishes itself through its optimized electromagnetic circuit. It is designed for engines where load acceptance is critical-where the engine must transition from idle to full torque rapidly without bogging down or producing excessive smoke.

Primary Fitments: Heavy-duty construction equipment (excavators, wheel loaders), agricultural tractors requiring PTO stability, and industrial generator sets subject to sudden step-loads.

System Integration: Optimized for 24V common rail architectures utilizing rapid pulse-width modulation (PWM).

Operational Role: Acts as a high-speed servo-valve, capable of executing complex multi-pulse strategies (pilot, main, and post-injection) within a single combustion cycle.





To achieve the responsiveness required of the 4914325, the internal design utilizes a low-mass armature and a high-force solenoid spring. This combination allows for a rapid rise in magnetic flux, snapping the valve open faster than standard units, and ensuring a sharp, decisive close to prevent "dribble" or after-injection.

表格

Specification Parameter	Performance Metric
Part Number	4914325 (PTN855 Series)
Actuation Type	Solenoid (High-Speed Magnetic)
Nominal Voltage	24V DC (Peak and Hold Compatible)
Opening/Closing Time	0.4 ms (Optimized for Low Latency)
Max Rail Pressure	Up to 1600 Bar (Continuous Duty)

Engineering Note: The "PTN" designation refers to the specific nozzle retention method and body geometry. In the 4914325, this structure is tuned to minimize hydraulic capacitance, allowing pressure waves to travel faster through the injector body.





Selecting the 4914325 requires looking beyond the part number to the injector's "response curve." In a common rail system, the ECU calculates injection duration based on the assumption of a specific opening delay.

Electromagnetic Efficiency: The 4914325 is selected for its coil resistance and inductance values, which are matched to the ECU's driver circuit. A mismatch here results in "slow burn"-where the injector opens too late, causing fuel to burn during the exhaust stroke, leading to overheating and turbocharger damage.

Ballistic Phase Consistency: During the "ballistic" phase (very short injection pulses), the needle barely lifts. The 4914325 is calibrated to ensure consistent fuel delivery even in this micro-lift range, which is crucial for smooth idling and pilot injection noise reduction.

Thermal Stability: High switching frequencies generate heat. The selection logic prioritizes the 4914325 for its ability to maintain constant resistance values even as temperatures rise, preventing the ECU from detecting false "open circuit" faults.





Maintaining the 4914325 PTN855 involves verifying not just the flow, but the timing of the flow.

Oscilloscope Diagnostics: A standard multimeter is insufficient for this unit. Technicians should use an oscilloscope to view the "current ramp." The 4914325 will show a distinct "kink" in the current trace when the needle physically lifts (back-EMF). A missing kink indicates a stuck needle or weak spring.

Harness Integrity: Because this injector relies on millisecond precision, voltage drop in the wiring harness is critical. Corroded connectors can slow down the solenoid's energizing time, effectively retarding the injection timing.

Sealing Surface Prep: The interface between the injector tip and the cylinder head must be perfectly clean. Carbon buildup acts as a thermal insulator, trapping heat in the nozzle tip. This can cause the fuel inside the sac volume to carbonize, blocking the spray holes and ruining the atomization pattern.



What is "injection latency" and how does the 4914325 improve it?
Latency is the time delay between the electrical signal and actual fuel spray. The 4914325 uses a lightweight armature and optimized magnetic circuit to reduce this delay, ensuring fuel is injected at the exact moment of peak compression for maximum power.

Why does my engine produce white smoke at idle with new injectors?
This often indicates a timing issue or incorrect coding. If the 4914325 is not coded into the ECU, the computer may fire the injector too early or too late during the pilot phase, leading to incomplete combustion and white smoke.

Can I test the 4914325 on a standard bench tester?
Yes, but standard testers only check flow. To fully validate the 4914325, you need a "fast code" or "dynamic" test bench that can simulate the rapid on/off pulsing found in real-world driving conditions.

Does the PTN855 series support "Post-Injection"?
Yes. The 4914325 is capable of a third or fourth injection event late in the combustion cycle. This is used to increase exhaust gas temperatures for Diesel Particulate Filter (DPF) regeneration.

What causes the "clicking" sound to change pitch?
A healthy injector has a crisp, metallic click. A dull or "wet" sound usually indicates that the control valve is leaking internally, or that the nozzle needle is not seating firmly due to debris or wear.

Is the 4914325 compatible with biodiesel blends?
The materials in the 4914325 (stainless steel, hardened alloys) are compatible with B20 blends. However, operators must ensure water separation is optimal, as biodiesel attracts moisture which can corrode the sensitive solenoid components.
