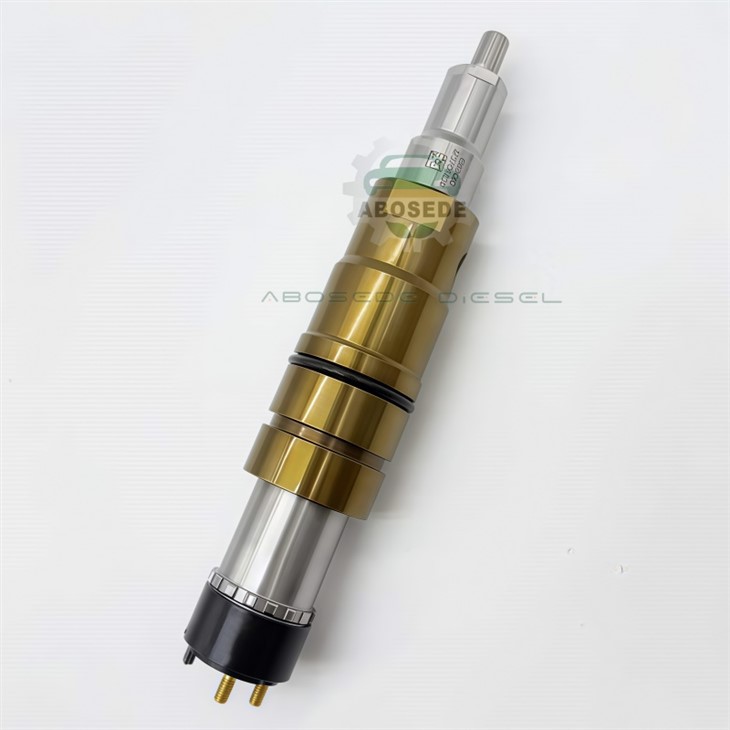

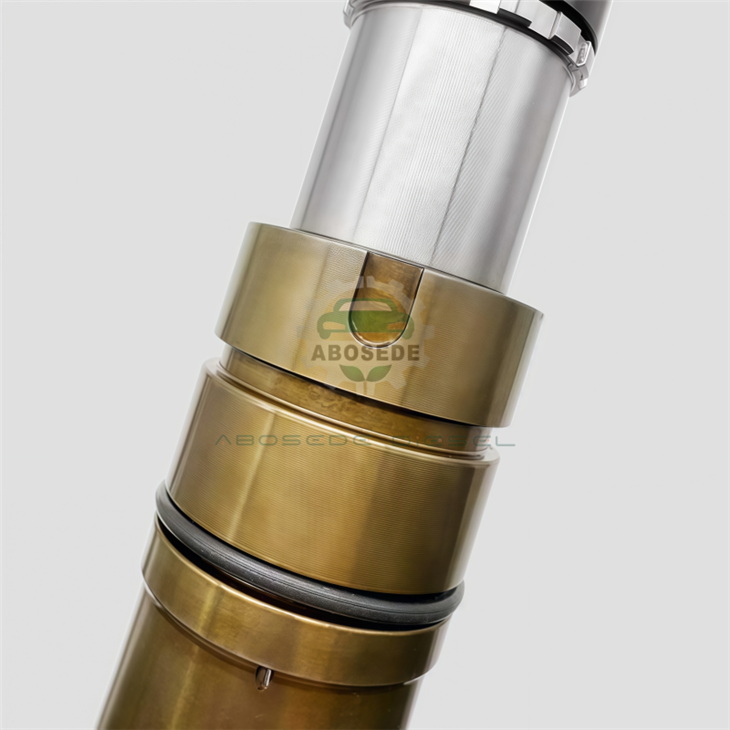

Cummins 2872405 XPI Fuel Injector For ISX15 / QSX15 – 2500 Bar High-Pressure Common Rail Diesel Injector With Trim Code Calibration

In modern heavy-duty diesel engines, injector selection is no longer just about fitment-it's about calibration integrity and system harmony. The Cummins 2872405 injector is engineered not only to deliver fuel, but to synchronize with ECM-controlled injection events under extreme pressure conditions. For ISX15 and QSX15 platforms, this injector becomes a core determinant of combustion efficiency, emissions compliance, and lifecycle cost control.

Unlike legacy injectors, 2872405 operates within the Cummins XPI (Extra High Pressure Injection) ecosystem, where precision trim coding and dynamic response curves are critical to maintaining engine balance.



⚙️ Technical Overview & Key Data



Parameter	Specification
Part Number	2872405
System Type	XPI Common Rail
Max Rail Pressure	Up to ~2500 bar
Injector Type	Solenoid-controlled
Nozzle Design	8-hole VCO (~0.18 mm)
Engine Compatibility	ISX15 / QSX15 (EPA10)
Fuel Type	ULSD (Ultra-Low Sulfur Diesel)
Calibration	Individual Trim Code Required

➡️ The XPI system enables multiple injection events (pilot, main, post) for optimized combustion.







Primary Applications:

Heavy-duty on-highway trucks (Class 8 linehaul)

Vocational trucks (construction, waste, mining)

Off-highway equipment (QSX15 Tier 4 engines)

Selection Logic (Key for Buyers):
✔ Match by Engine Serial Number (ESN) rather than model alone
✔ Confirm ECM calibration compatibility (CM2250 / EPA10)
✔ Ensure trim code programming capability at installation
✔ Prefer new or OEM-grade injectors over reman for XPI systems





Within the Cummins XPI system, the injector is not isolated-it interacts with:

High-pressure fuel pump

Rail pressure sensor

ECM (Engine Control Module)

Fuel return system

🔄 The injector must maintain dynamic equilibrium:

Too much leakage → rail pressure drop

Poor response → delayed combustion

Incorrect trim → cylinder imbalance

➡️ This is why each injector carries a unique trim code, derived from bench testing data.





Installation Best Practices

✔ Always program the trim code per cylinder
✔ Replace fuel lines / connector tubes if required
✔ Maintain cleanroom-level cleanliness during installation

Maintenance Focus

Use high-efficiency filtration systems

Monitor rail pressure decay (leak-down test)

Avoid contamination-XPI injectors are highly sensitive

⚠️ Industry insight:
Improper fuel cleanliness is one of the leading causes of injector failure, especially in high-pressure systems.



1. Do I need to replace all injectors or just one?

Not always-but in XPI systems, matched performance across cylinders is critical. Many fleets replace in sets to avoid imbalance.

2. Why is trim code programming mandatory?

Because each injector has slight flow variations, and the ECM compensates using trim codes to maintain fuel balance.

3. What's the biggest failure risk for 2872405?

Contamination. Even micron-level particles can damage internal sealing surfaces.

4. New vs Reman-what do professionals prefer?

For XPI systems, most OEM-focused workshops recommend new or OEM-grade injectors due to tighter tolerances.

5. How does injector failure show up in real operation?

Hard starting

White smoke

Power loss

Rail pressure instability

6. Can injector issues be misdiagnosed?

Yes. Often confused with:

Pressure relief valve failure

High-pressure pump wear

Fuel rail leakage
