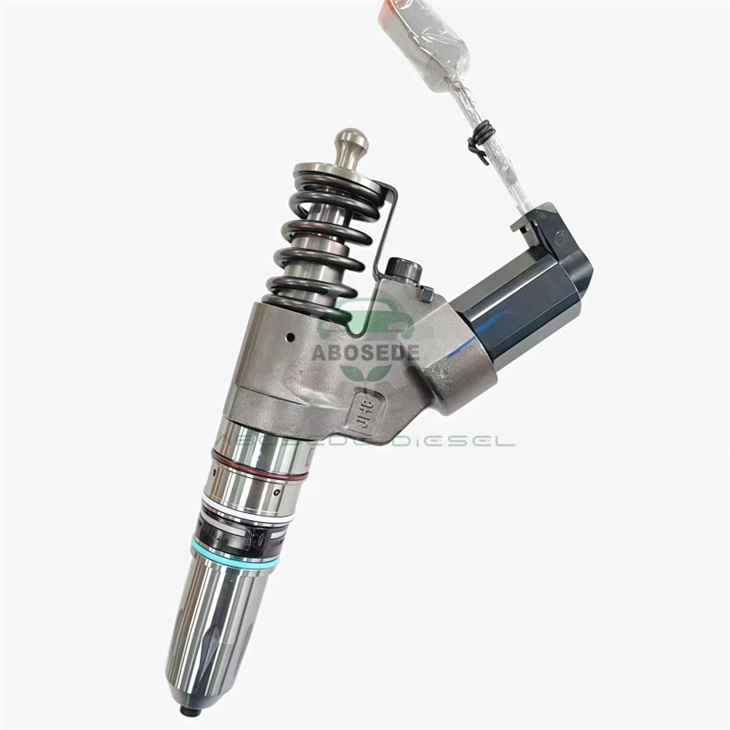

Elite Calibration: Cummins M11 Diesel Injector 3411845 For ISM/QSM11 Propulsion Systems

In the complex hierarchy of heavy-duty engine management, the Cummins M11 Diesel Injector 3411845 serves as a master regulator of thermodynamic efficiency. For specialized repair shops in the EU and fleet maintenance managers in North America, this component represents the refined peak of the CELECT™ Plus fuel logic. It is not merely a conduit for fuel; the 3411845 is a high-speed hydraulic actuator designed to harmonize with modern Common Rail diagnostic standards, ensuring that every injection event is synchronized with the engine's precise crank angle for maximum kinetic output.





The 3411845 injector is engineered to solve the "Injection Lag" issues prevalent in older heavy-duty architectures. By utilizing a high-response electromagnetic solenoid, it bridges the gap between pure mechanical delivery and full electronic autonomy.

Optimized Injection Curve: The 3411845 is calibrated to provide a sharper "Rate of Shape," which facilitates a more aggressive pressure rise. This results in superior diesel atomization, crucial for reducing the "cold-smoke" profile of M11 engines.

Surface Metallurgy: The internal needle is treated with an anti-friction coating, allowing the injector to maintain consistent stroke velocity even when faced with the varying viscosities of modern Ultra-Low Sulfur Diesel (ULSD).

ECM Synergy: Its electrical impedance is matched to the Cummins CELECT™ Plus control module, preventing signal noise that can lead to "phantom" cylinder misfires.





In the professional diesel sector, data integrity is the baseline for trust. Below are the definitive technical metrics for the 3411845:

Parameter	Specification Detail
OEM Part Number	3411845
Interchange Reference	3411845RX, 3411754, 3087559
Engine Compatibility	Cummins M11 / ISM11 / QSM11 / L10 (Late)
Injection Technology	Electronic Unit Injection (EUI)
Fuel Medium	Diesel / B5-B20 Compatible
Core Architecture	High-Pressure Plunger & Barrel Unit







The architecture of the 3411845 is a response to the punishing duty cycles of vocational machinery.

Reinforced Solenoid Cap: The 3411845 features an upgraded electrical connector housing designed to withstand "Vibration Fatigue," a common killer of injectors in mining and off-road applications.

Multi-Stage Filtration Screen: Integrated into the fuel inlet is a micro-mesh screen that acts as the final line of defense, catching any contaminants that bypass the main diesel filters before they can score the precision-lapped plunger.

High-Temp Sealing: The external O-rings are composed of high-fluorine elastomers, ensuring the seal remains pliable at temperatures exceeding 120°C, preventing oil-to-fuel cross-contamination.





As an engineer, I advocate for a "Prevention First" approach to the 3411845 lifecycle.

Fuel Stabilizers: Because the 3411845 operates at high local pressures, "Fuel Cracking" can occur if the diesel is unstable. Use additives that prevent varnish buildup on the nozzle tip.

The "O-Ring Lubrication" Rule: When installing a new 3411845, never install it dry. Use a thin film of clean engine oil on the O-rings to prevent "nibbling" during insertion into the injector bore.

Harness Testing: Before condemning a 3411845 for an "Electrical Open" code, perform a load test on the engine wiring harness. Often, the vibration of the M11 engine breaks the internal wire strands, mimicking injector failure.





Q1: Why is my 3411845 injector showing carbon tracking around the nozzle?

A: This is usually "Carbon Packing," caused by a failing copper crush washer. If combustion gases leak past the seal, they bake the diesel onto the injector body. Replace the washer and clean the bore immediately to prevent the injector from seizing in the head.

Q2: Does the 3411845 require a "Trim File" update in the ECM?

A: For the M11 CELECT™ Plus systems, while the injectors are high-precision, verifying the calibration code (the 4-digit code on the injector) against the ECM settings ensures the smoothest possible idle and optimal fuel trim.

Q3: Can water in the diesel fuel physically shatter a 3411845?

A: Yes. Water does not compress. If a slug of water enters the high-pressure chamber of the 3411845, the resulting hydraulic shock can crack the nozzle tip or shatter the internal plunger.

Q4: My engine has a "galloping" idle; could it be the 3411845?

A: A "galloping" or hunting idle often points to a "lazy" injector solenoid. The 3411845 may be taking too long to close, causing an over-fueling event that the ECM then tries to over-correct.

Q5: What is the lifespan expectation for a 3411845 in a marine environment?

A: In marine QSM11 applications, we typically see 5,000 to 8,000 hours. However, this is highly dependent on the quality of the diesel and the consistency of the fuel-water separator maintenance.

Q6: Is it safe to use "Reman" 3411845 injectors for heavy-haul?

A: Absolutely, provided they are remanufactured to OEM specs (like the 3411845RX). Ensure the reman process included a full replacement of the nozzle and solenoid to guarantee 100% duty cycle reliability.
