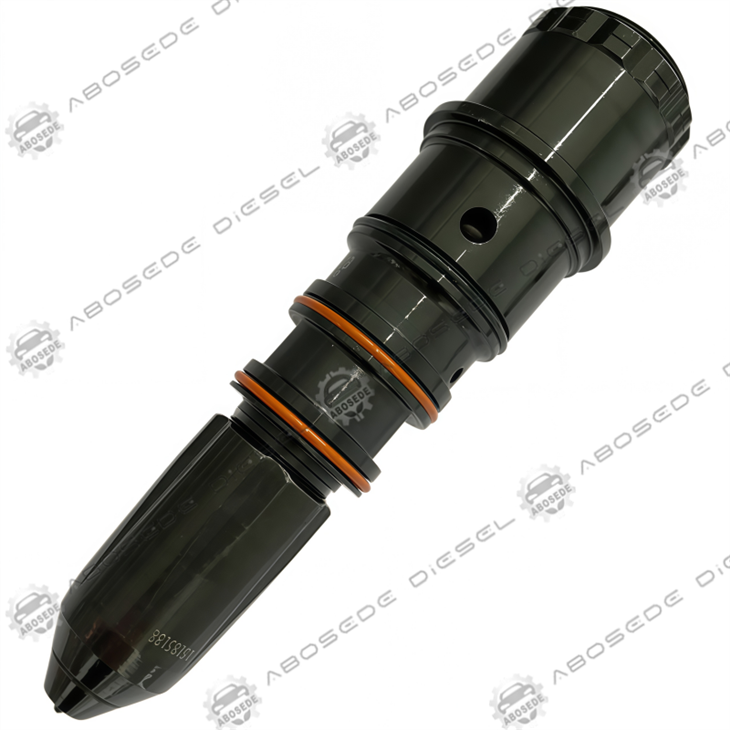

4914537 PTN855 Injector | OEM Replacement For Shantui SD360 & Cummins NTA855



In the realm of heavy earthmoving and industrial power generation, horsepower is a vanity metric-torque is the reality. The 4914537 PTN855 Injector is specifically calibrated to manage the intense fuel demands of high-torque, low-RPM operations. Unlike standard automotive injectors designed for speed, this unit is engineered for "torque enrichment"-the ability to deliver massive volumes of atomized fuel precisely when the engine is under maximum load, such as a bulldozer climbing a grade or a generator accepting a step-load. This analysis explores how the 4914537 maintains hydraulic stability during these extreme injection events, preventing the pressure drops that lead to power loss and incomplete combustion.



🔍 Technical Overview & Application Scope



The PTN855 series is a staple in the Cummins ecosystem, but the 4914537 variant holds a specific place in heavy machinery applications. It is synonymous with the NTA855 platform, a workhorse engine found in some of the most demanding environments on earth.

Primary Fitments: Specifically matched for Shantui SD360 (360HP) bulldozers, heavy-duty excavators, and stationary generator sets powered by NT/NTA855 engines.

System Integration: Designed for mechanical or early electronic common rail systems where precise metering is critical to prevent "lugging" (RPM drop under load).

Operational Goal: To provide a robust spray pattern that penetrates deep into the combustion chamber, ensuring efficient burn even at lower injection pressures typical of older heavy-duty architectures.





The 4914537 is built to withstand the physical abuse of construction sites. Its design prioritizes mechanical strength and thermal resistance over the ultra-high-speed switching of modern passenger car injectors.



Specification Parameter	Performance Metric
Part Number	4914537 (PTN855 Series)
Core Application	Cummins NTA855 / Shantui SD360
Actuation Type	Solenoid / Mechanical Hybrid Compatibility
Flow Rate	High-Volume (Optimized for Torque Rise)
Weight	Approx. 0.6 kg (Heavy-duty casing)

Engineering Note: The "PTN" designation in this context often refers to the specific nozzle retention method compatible with the N-series cylinder heads. The 4914537 is balanced to ensure the needle valve lifts consistently against the high compression ratios of the NTA855 engine.





When sourcing the 4914537, the selection logic must focus on flow compatibility with the engine's torque curve.

Calibration Matching: This injector is not a generic part; it is calibrated to a specific flow rate (cc/min) required by the NTA855's cam profile and piston geometry. Using a lower-flow injector will result in an overly lean mixture under load, causing Exhaust Gas Temperatures (EGT) to spike dangerously.

Physical Interchangeability: While it fits the NTA855 head, one must verify the "top feed" vs. "side feed" configuration if adapting to non-standard setups. The 4914537 is typically configured for the standard top-feed arrangement found in Shantui and similar OEM applications.

Durability vs. Sensitivity: Unlike piezo injectors, the 4914537 uses a robust solenoid or mechanical spring design (depending on the specific sub-revision) that is more tolerant of slight fuel contamination, making it the logical choice for remote job sites where fuel quality may vary.





Maintaining the 4914537 PTN855 requires a focus on mechanical integrity and sealing.

Leak-off Management: In these heavy-duty units, excessive return flow (leak-off) is the primary indicator of wear. If the internal clearances widen, the injector cannot build enough lift pressure, leading to poor atomization and black smoke.

Seat Cleaning: The copper washer seat on the cylinder head must be perfectly clean. Carbon buildup here acts as an insulator, causing the injector tip to overheat. This can lead to "coking," where carbon deposits block the spray holes, ruining the spray pattern.

Torque Specs: When installing the 4914537, the retaining clamp torque is critical. Over-tightening can distort the injector body, binding the internal plunger, while under-tightening allows combustion gases to escape into the rocker box.



What specific machine is the 4914537 most commonly associated with?
It is widely recognized as the standard injector for the Shantui SD360 bulldozer equipped with the Cummins NTA855 engine. It is also found in various other heavy construction machines utilizing this engine platform.

Can I use this injector for a marine application?
While the NTA855 engine is used in marine settings, the 4914537 is calibrated for earthmoving torque curves. For marine use, you should verify if your engine requires a different calibration code to prevent overheating at constant high RPMs.

Why is my engine smoking black after installing 4914537 injectors?
Black smoke indicates a rich mixture (too much fuel). This can happen if the injectors are not seated correctly (leaking compression), or if the pump timing is retarded. Ensure the "shims" under the injector are correct for your specific cylinder head depth.

Is the 4914537 compatible with Common Rail systems?
Yes, the NTA855 evolved into Common Rail versions (like the G1A/G2). The 4914537 is designed to operate within the pressure ranges of these systems (typically up to 1600 bar), bridging the gap between mechanical durability and electronic precision.

How do I test the 4914537 without a computer?
A simple "pop tester" (manual pressure tester) can be used to check the opening pressure and spray pattern. You should see a fine mist, not distinct streams. However, for leak-off testing, a specialized bench is required.

What does "PTN" stand for in this model number?
In the context of Cummins tooling and parts, PTN often refers to the specific tooling code or nozzle type used during assembly. For the end-user, it signifies the physical dimensions and mounting style compatible with the N-series engine block.
