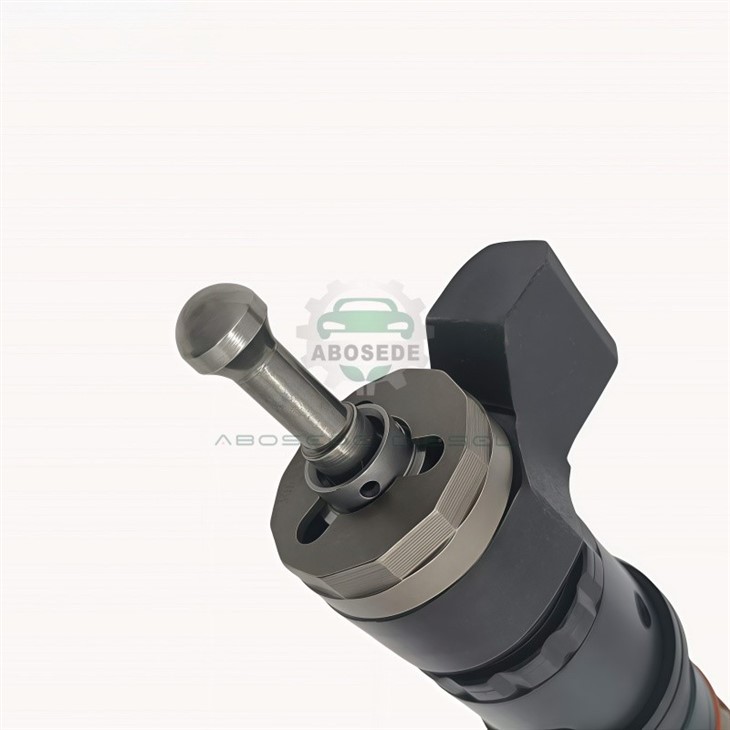

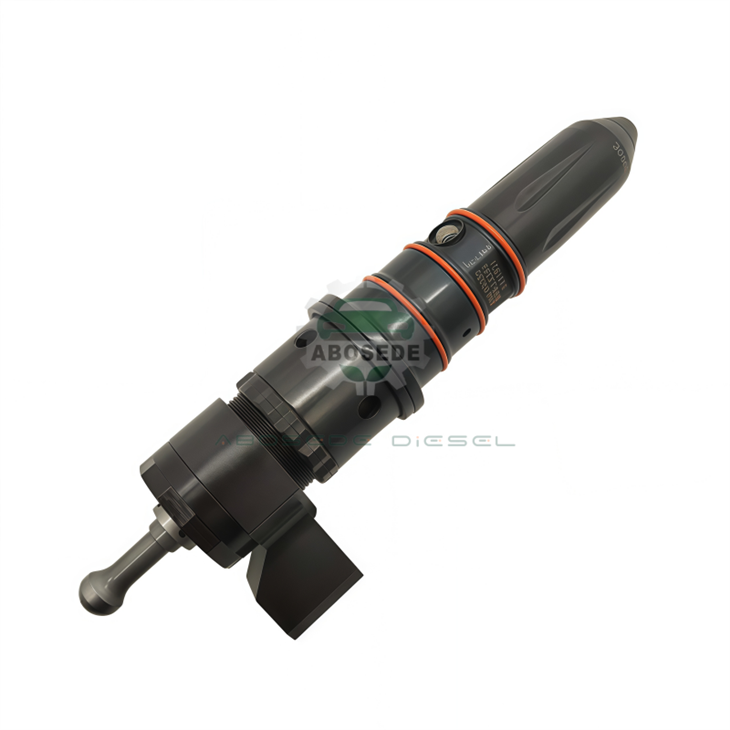

3406604 M11 Injector | The Hydraulic Backbone Of Cummins PT Performance

In the unforgiving landscape of heavy-duty diesel mechanics, longevity is the ultimate currency. While electronic common rail systems have revolutionized emissions control, they often sacrifice robustness for precision. Enter the 3406604 injector-a component engineered not just to meter fuel, but to survive. Designed for the legendary Cummins M11 engine platform, this Pressure-Time (PT) injector represents a philosophy of mechanical resilience. For fleet managers and industrial operators, the 3406604 is more than a replacement part; it is a safeguard against the volatility of modern fuel quality and the high costs of electronic sensor failures. By relying on hydraulic actuation rather than fragile solenoids, this injector ensures that your engine keeps firing, cycle after cycle, even in the harshest operating environments.



⚙️ Technical Data & Specifications



Feature	Specification
Part Number	3406604PX (Remanufactured/New)
Engine Platform	Cummins M11 Series (Industrial & Automotive)
Fuel System	PT (Pressure-Time) Solid Injection
Dimensions	21 cm x 6 cm x 6 cm
Weight	Approx. 1 kg
Material Construction	Hardened Steel / Precision Lapped Plunger
OEM Standard	Meets or Exceeds Cummins Original Specs





Choosing the right injector for an M11 engine requires navigating a maze of calibration codes and "top stop" settings. The 3406604 is not merely a generic fit; it is a specific hydraulic tool designed for particular horsepower ratings and governed speeds.

When integrating this part into your supply chain, apply the following selection logic:

Application Verification: Confirm if the engine is used in a variable speed application (like a truck) or a constant speed application (like a generator). The flow characteristics of the 3406604 are tuned to specific RPM bands.

Supersession History: Be aware that part numbers evolve. The 3406604 may supersede older numbers or be replaced by newer revisions. Always cross-reference with the engine's CPL (Control Parts List) number found on the data plate.

Reman vs. New: Given the durability of the PT body, high-quality remanufactured units (often denoted by the 'PX' suffix) are a cost-effective and sustainable choice, provided they have been tested on a calibrated flow bench.





To appreciate the 3406604, one must understand its dual function as both an injector and a high-pressure pump. Unlike common rail injectors which simply release pressure created elsewhere, the PT injector creates its own injection pressure mechanically.

The internal structure features a precision-ground plunger riding within a barrel. As the engine's camshaft rotates, it forces the plunger downward. This mechanical leverage converts relatively low supply pressure into immense injection pressure-often exceeding 100 MPa (approx. 15,000 psi)-instantly atomizing the fuel. The body of the 3406604 is crafted from hardened alloy steel to resist the abrasive wear of millions of compression cycles. This structural integrity is why M11 engines are renowned for reaching high mileage milestones without requiring head removals.





For technicians, the 3406604 offers the advantage of adjustability, but this comes with strict installation requirements.

Top Stop Adjustment: The vertical travel of the plunger (Top Stop) dictates the injection timing. Installing the 3406604 requires precise shimming and measurement with a dial indicator. Incorrect height leads to poor performance or piston damage.

Torque Specifications: The hold-down clamp torque is critical. Uneven torque can warp the injector body, causing the plunger to bind.

Flow Testing: Before installation, verify the injector's flow rate and spray pattern on a dedicated PT test bench. A "dribbling" injector will wash oil off the cylinder liner, leading to premature ring and liner wear.



Q: Can I use a cleaning additive to fix a sticking 3406604 injector?
A: While additives can help clean minor varnish deposits, a sticking plunger usually indicates physical damage or severe contamination. Mechanical binding often requires professional rebuilding or replacement, as the tolerances inside the injector are measured in microns.

Q: Why is there fuel in my engine oil (oil dilution)?
A: This is a common symptom of PT injector failure. If the O-rings on the injector body harden and crack, or if the needle valve seat leaks, raw fuel can bypass the combustion chamber and drain directly into the crankcase, dangerously lowering the oil's viscosity.

Q: How does the 3406604 handle different fuel qualities?
A: The mechanical nature of the PT system makes it generally more tolerant of varying fuel qualities compared to common rail. However, water content remains the enemy. Water destroys the lubrication film between the plunger and barrel, leading to rapid seizure.

Q: What is the difference between a "P" injector and a "CELECT" injector?
A: The 3406604 is a standard mechanical PT injector. "CELECT" injectors are electronically controlled versions that still use the PT supply system but add an electronic module for timing. They are not interchangeable without major engine modifications.

Q: Do I need to replace the copper cup when installing this injector?
A: Yes, absolutely. The copper washer (cup) seals the injector tip against the combustion chamber. Reusing an old cup can lead to compression leakage into the fuel system or coolant, causing catastrophic engine damage.
