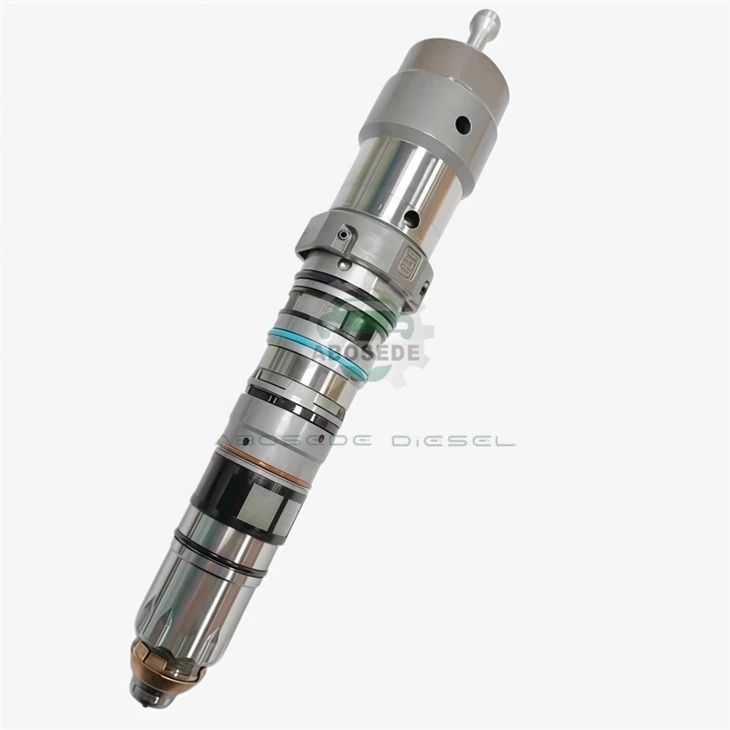

Cummins QSK23 Injector 4088431 | Heavy-Duty HPCR Fuel Injection For Mining & Industrial Engines

In the high-stakes world of industrial power generation and heavy earthmoving, the Cummins QSK23 engine is a titan. Operating in environments ranging from deep-pit mining to remote oil fields, this 23-liter powerhouse demands a fuel system that balances extreme pressure with surgical precision. The Injector 4088431 (often cross-referenced with 4902827, 4076533, and 4902828) is not merely a replacement part; it is the heartbeat of the High-Pressure Common Rail (HPCR) system. For fleet managers and procurement specialists in North America and Europe, understanding the technical nuance of the 4088431 is essential for minimizing downtime and maximizing fuel efficiency. This product detail explores how this specific injector manages the complex hydraulic dynamics required to meet Tier 4 emissions while delivering the torque needed for the toughest jobs.





Accuracy in sourcing parts is the first step toward a successful repair. Below are the verified specifications for the 4088431.



Specification Category	Details
Part Number	4088431 (Supersedes/Interchanges with 4902827, 4076533, 4902828)
Engine Platform	Cummins QSK23 (Industrial, Mining, Marine, Gen-Set)
Injection System	High-Pressure Common Rail (HPCR)
Actuation Type	Electronic Solenoid Valve
Operating Pressure	Rated for Rail Pressures up to 1,600+ Bar (23,200 PSI)
Nozzle Design	Multi-Hole VCO (Valve Covered Orifice)





The 4088431 is engineered to withstand the brutal environment of a large-bore diesel engine. Its design philosophy centers on three pillars: rapid response, precise atomization, and thermal durability.

Solenoid Response & Control: At the core of the 4088431 is a high-speed solenoid valve. In an HPCR system, the ECM (Electronic Control Module) demands split-second timing to execute pilot, main, and post injections. The 4088431 features a magnetic circuit optimized for rapid actuation, ensuring the injection event starts and stops exactly when commanded. This precision reduces combustion noise and smooths out the power delivery.

Nozzle Tip & Atomization: The nozzle tip utilizes a multi-hole configuration specifically calibrated for the QSK23's combustion chamber geometry. This creates a fine, conical mist of fuel that penetrates deeply without wetting the cylinder walls. Proper atomization is critical for complete combustion, which minimizes soot production (particulate matter) and prevents the DPF (Diesel Particulate Filter) from clogging prematurely.

Thermal Management: The injector body acts as a heat sink, transferring excess heat from the nozzle tip into the cylinder head's cooling jacket. In continuous-duty applications like mining or power generation, preventing "fuel coking" (carbon buildup inside the tip) is vital. The 4088431 is designed to manage these thermal loads effectively, extending the service life of the component.





One of the most challenging aspects of maintaining the QSK23 is the complex history of part number supersessions. The selection logic for the 4088431 requires careful cross-referencing to ensure compatibility.

The "Family" of Numbers: You will frequently see the 4088431 grouped with numbers like 4902827, 4076533, and 4902828. These often represent engineering revisions or different branding (e.g., Komatsu vs. Cummins) for the same physical unit. While they are generally interchangeable, you must verify the "Flow Rate" or "Rating Code."

CPL Verification: Always check your engine's CPL (Critical Parts List) number found on the dataplate. The QSK23 comes in various horsepower ratings (e.g., 750HP vs. 1000HP). Installing an injector with the wrong flow calibration can cause the engine to run lean (overheating) or rich (black smoke), regardless of whether the part physically fits.

OEM Branding: If your machine is a Komatsu excavator (e.g., PC1250) powered by a Cummins engine, ensure you select the correct brand variant if your warranty or procurement policy requires it, even if the internal specs match.





For technicians specializing in HPCR systems, the installation of the 4088431 requires strict adherence to cleanliness and torque protocols.

Technician's Warning: The tolerances inside a Common Rail injector are microscopic. When installing the 4088431, never reuse the copper sealing washer or the O-rings. A compromised seal can allow high-pressure fuel to leak into the oil gallery (diluting lubrication) or allow combustion gases to escape into the rocker arm chamber. Always use a new installation kit and torque the hold-down bolt to the exact specification using a calibrated wrench.

Additionally, verify the "return flow" lines. If the new injector is returning excessive fuel to the tank, it indicates a stuck valve or internal leak, which will prevent the rail from building sufficient pressure during acceleration.





Q: Is the 4088431 compatible with Komatsu excavators?

A: Yes, the QSK23 is widely used in Komatsu machinery (like the PC1250 or PC2000). The 4088431 is often the direct replacement for Komatsu-branded injectors. However, verify the specific model series (e.g., Dash-7 vs. Dash-8) as sensor configurations can sometimes vary despite the engine block being the same.

Q: What is the difference between 4088431 and 4902827?

A: These part numbers are typically supersessions of one another. 4902827 is an older number that has been updated to 4088431 in many catalogs. They share the same physical fitment and electrical connectors. However, always confirm the "Rating Code" to ensure the flow rate matches your application's requirements.

Q: Why is my QSK23 engine smoking white after changing injectors?

A: White smoke usually indicates unburnt fuel or coolant. If you see it immediately after installing the 4088431, check two things: 1) Did you damage the O-rings during installation? Coolant leaking into the cylinder creates white steam. 2) Is there air in the fuel rail? You may need to crank the engine longer to purge air from the high-pressure pump.

Q: Can I test the 4088431 on a standard diesel test bench?

A: You need a specialized Common Rail test bench capable of handling high-flow industrial injectors. Standard automotive benches may not have the correct fixtures or the capacity to generate the required rail pressure (1600 bar) to accurately test the spray pattern and return flow of a QSK23 injector.

Q: How do I prevent cavitation damage on the 4088431?

A: Cavitation is caused by low supply pressure or restricted fuel filters. Ensure your primary fuel filter (lift pump side) is clean and unrestricted. If the injector starves for fuel, vapor bubbles form and implode, pitting the metal inside the injector body.

Q: Does this injector require coding to the ECM?

A: Generally, Cummins HPCR injectors for industrial applications do not require manual coding (like entering an IMA code). The ECM adapts to the injector's performance over time. However, performing a "reset adaptation" via diagnostic software (Insite) can help the ECU learn the new injector's characteristics faster.
