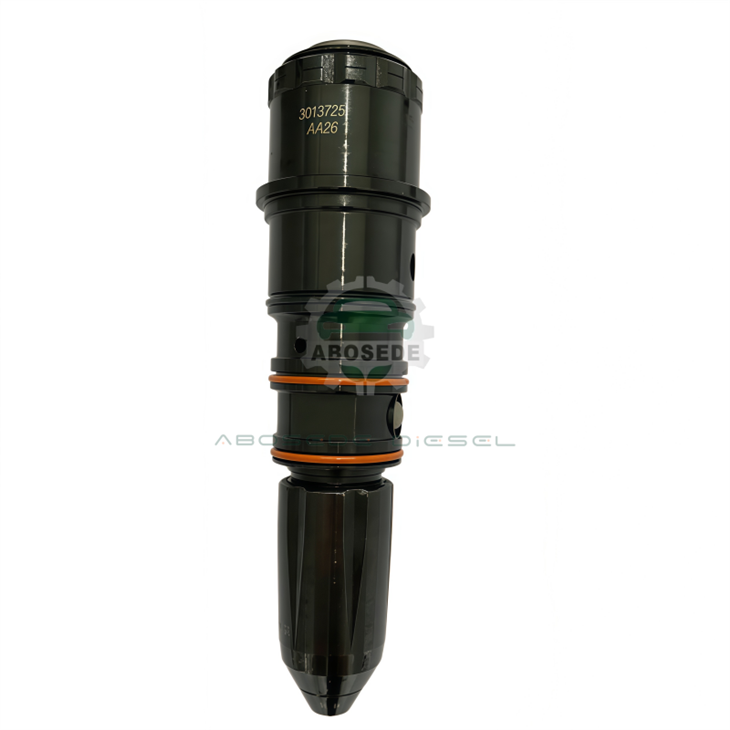

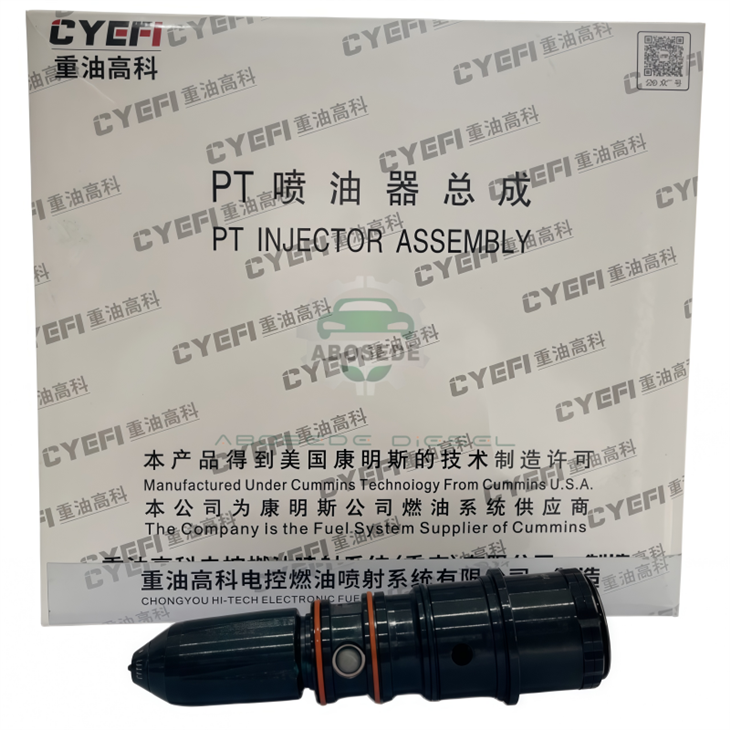

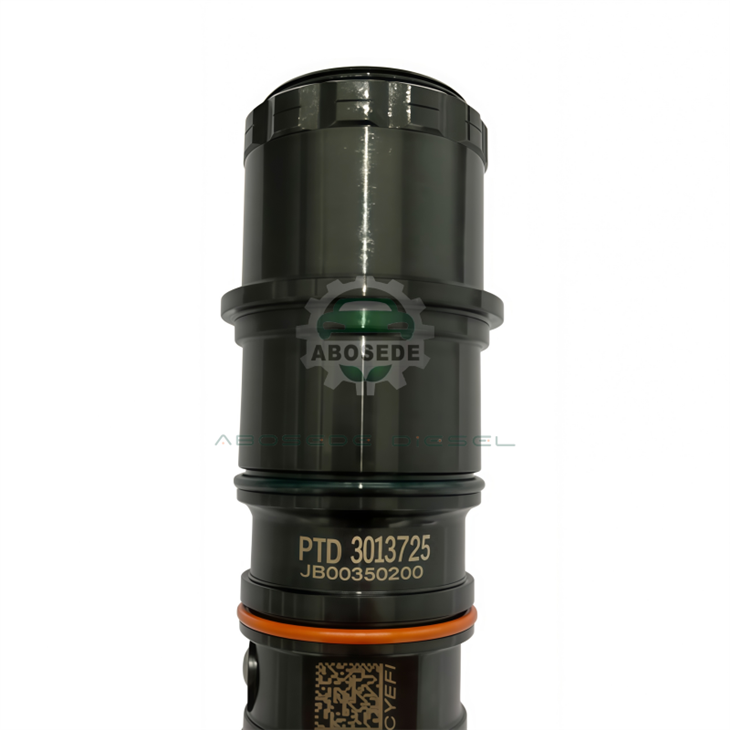

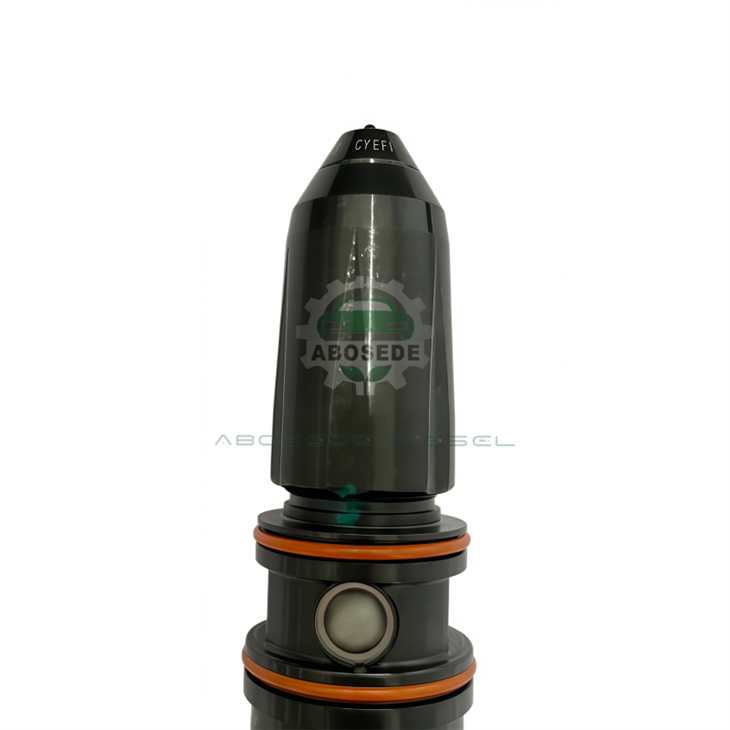

3013725 PT Injector | The Hydraulic Heartbeat Of The Cummins N855 Legacy

In the annals of industrial diesel history, few engine platforms command the respect of the Cummins N855. Known for its sheer displacement and mechanical simplicity, this engine relies on a fuel delivery system that is as robust as it is complex to master. The 3013725 injector is not merely a replacement part; it is a critical component that defines the operational character of the N855. Unlike modern electronically controlled unit injectors that mask mechanical wear with software compensation, the PT (Pressure-Time) system relies entirely on the physical integrity of the injector to meter fuel, time the injection event, and atomize the spray. For owners of vintage heavy equipment, marine vessels, and stationary power units, the 3013725 represents the difference between a smooth-running powerhouse and a smoking, inefficient liability. This product detail explores the hydraulic nuances of this component, offering a roadmap for selection and maintenance in an era where mechanical precision is paramount.



📊 Technical Data & Specifications



Feature	Specification
Part Number	3013725 (PT Injector)
Engine Platform	Cummins N855 Series (Big Cam I-IV, Standard N)
System Type	PT (Pressure-Time) Solid Injection
Material	Hardened Alloy Steel / Precision Lapped Plunger
Function	Fuel Metering, Timing, Atomization, & Cooling
Installation Type	Top-Stopped / STC (Step-Timing Control) Compatible
Weight	Approx. 1.1 kg





Selecting the correct injector for an N855 engine requires more than matching a part number; it demands an understanding of the engine's specific "Top Stop" setting. In the world of PT fuel systems, two injectors may look identical externally but function completely differently based on the vertical travel of the plunger.

When integrating the 3013725 into your procurement strategy, apply the following logic:

CPL Verification: Always cross-reference the injector with the engine's CPL (Control Parts List) number found on the data plate. The N855 has numerous configurations (e.g., marine vs. automotive), and the 3013725 must match the flow rate designated for that specific CPL.

STC vs. Non-STC: Determine if your N855 utilizes Step-Timing Control (STC). While the 3013725 is a standard mechanical injector, installing a non-STC injector in an STC head (or vice versa) without proper adaptation will result in catastrophic timing failure.

Application Environment: If the engine operates in a high-altitude or high-ambient temperature environment, ensure the calibration accounts for air density, as the PT system is sensitive to intake manifold pressure changes.





The 3013725 exemplifies the "unit pump" design philosophy. Unlike common rail systems where a central pump generates pressure for all cylinders, the PT injector creates its own high-pressure injection event locally.

The internal structure features a plunger and barrel assembly lapped to tolerances measured in microns. As the camshaft rotates, it drives the rocker arm, which forces the plunger downward. This mechanical leverage converts the supply pressure (from the PT pump) into injection pressures exceeding 100 MPa (approx. 15,000 psi). This immense pressure is necessary to atomize the fuel into a fine mist that burns efficiently. The body of the injector is crafted from hardened steel to withstand millions of compression cycles, while the tip is designed to penetrate the turbulence of the combustion chamber, ensuring the fuel reaches the air charge effectively.





To understand the value of the 3013725, one must grasp the "Pressure-Time" principle. The volume of fuel injected is determined by two variables: the pressure of the fuel supplied by the pump and the duration (time) the metering orifice is open.

A unique feature of this system, distinct from common rail technology, is the cooling mechanism. Approximately 80% of the fuel entering the 3013725 is not injected into the cylinder. Instead, it circulates through the injector body, absorbing heat from the plunger and the cylinder head, before returning to the fuel tank. This hydraulic cooling loop is vital for the longevity of the N855. It prevents the injector tip from melting and keeps the cylinder head temperature within safe limits. However, this also means that any restriction in the return lines-such as a clogged filter or kinked hose-can lead to rapid overheating and seizure of the 3013725.



Q: Can I clean a clogged 3013725 injector with ultrasonic cleaning?
A: Ultrasonic cleaning can remove surface varnish and carbon deposits from the exterior and tip. However, if the internal plunger is stuck due to scoring or severe corrosion, cleaning will not restore the micron-level tolerances required for proper operation. Replacement or professional rebuilding is recommended.

Q: Why is there fuel in my engine oil (oil dilution)?
A: This is a classic symptom of PT injector failure. If the O-rings on the injector body fail, or if the needle valve seat leaks, raw fuel can bypass the combustion chamber and drain directly into the crankcase. This thins the oil and can destroy engine bearings.

Q: What is the difference between the 3013725 and a common rail injector?
A: The 3013725 is mechanically actuated by the engine's camshaft and uses hydraulic pressure to meter fuel. A common rail injector is electronically controlled (solenoid or piezo) and relies on constant high pressure from a central pump. They are not interchangeable.

Q: How often should I replace the copper washer (cup) under the injector?
A: The copper cup should be replaced every time the injector is removed. Reusing a compressed cup can lead to gas leakage into the coolant or fuel system, causing overheating and contamination.

Q: Does the 3013725 work with bio-diesel blends?
A: Yes, the mechanical nature of the PT system makes it generally compatible with bio-diesel blends (like B20). However, bio-diesel can degrade rubber seals faster, so inspecting the O-rings during maintenance is crucial.
