3411821 M11 Injector | The Precision Metric For Cummins PT Fuel Systems

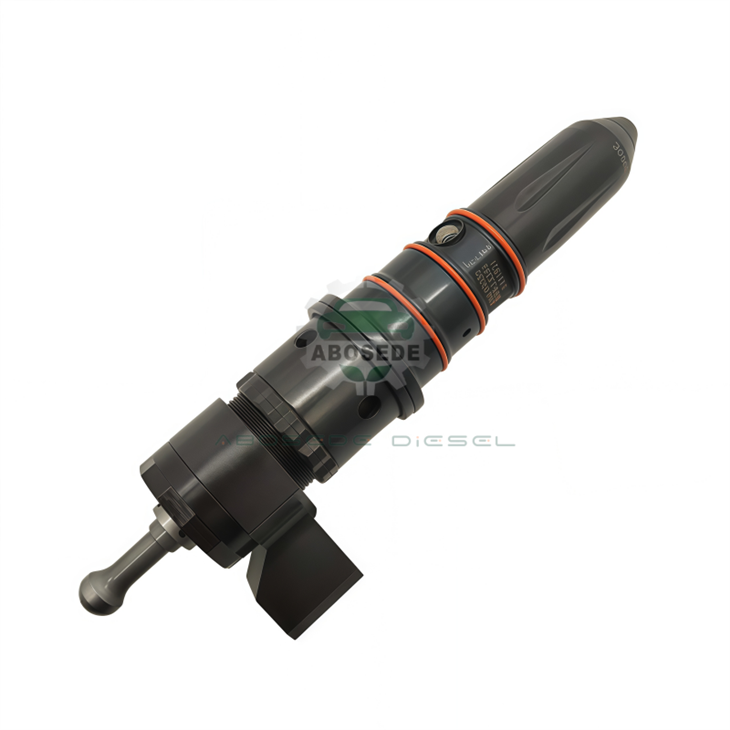

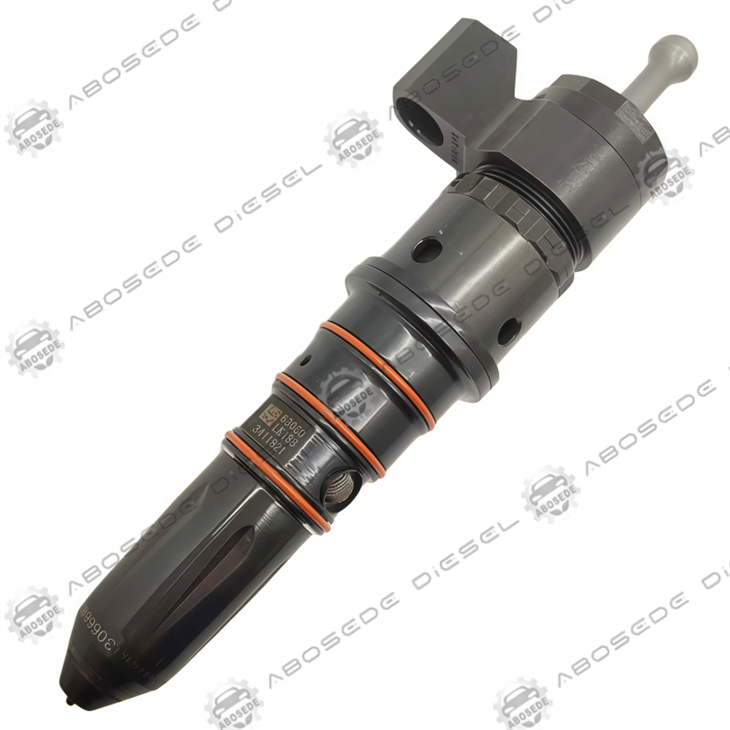

In the complex ecosystem of diesel fuel injection, "drop-in" compatibility is a dangerous myth. While many components look physically identical, the internal hydraulics dictate the engine's life and power. The 3411821 injector stands as a testament to the precision engineering required for the Cummins M11 platform. Unlike modern electronic injectors that rely on software to mask mechanical variances, the PT (Pressure-Time) system demands absolute physical accuracy. This product detail explores the 3411821 not just as a spare part, but as a calibrated instrument essential for maintaining the delicate balance between fuel economy, emissions compliance, and engine longevity in heavy-duty applications.



📊 Technical Specifications & Data Profile



Feature	Specification
Part Number	3411821 (Supersedes various legacy numbers)
Engine Fitment	Cummins M11 Series (Industrial, Marine, Automotive)
System Architecture	PT (Pressure-Time) Solid Injection
Injection Type	Unit Pump / Mechanical Actuation
Critical Dimension	Specific "Top Stop" Height Calibration
Material	High-Carbon Chromium Steel / Hardened Alloy
Warranty	typically 6-12 Months (depending on supplier)





Selecting the 3411821 requires a forensic approach to engine identification. In the world of PT fuel systems, the visual appearance of an injector can be deceiving. The selection logic must prioritize the engine's CPL (Control Parts List) number over general model names.

When procuring this unit, apply the following logic:

CPL Verification: The M11 engine has dozens of ratings. A 3411821 calibrated for a 330HP truck engine will have different flow characteristics than one rated for a 250HP generator set. Always cross-reference the injector part number with the specific CPL on the engine data plate.

Top Stop Settings: This is the most critical variable. The "Top Stop" determines how far the plunger travels, which dictates injection timing. Using an injector with the wrong top stop setting can cause the piston to strike the valve or result in late injection, causing severe overheating.

Flow Rate Matching: Ensure the replacement matches the original flow rate (cc/1000 strokes). Mismatched flow rates across cylinders lead to uneven combustion temperatures and potential head cracking.





The 3411821 is unique because it functions as a high-pressure pump located directly inside the cylinder head. While a common rail injector relies on a central pump to generate pressure, the 3411821 utilizes the camshaft's mechanical leverage to generate injection pressure locally.

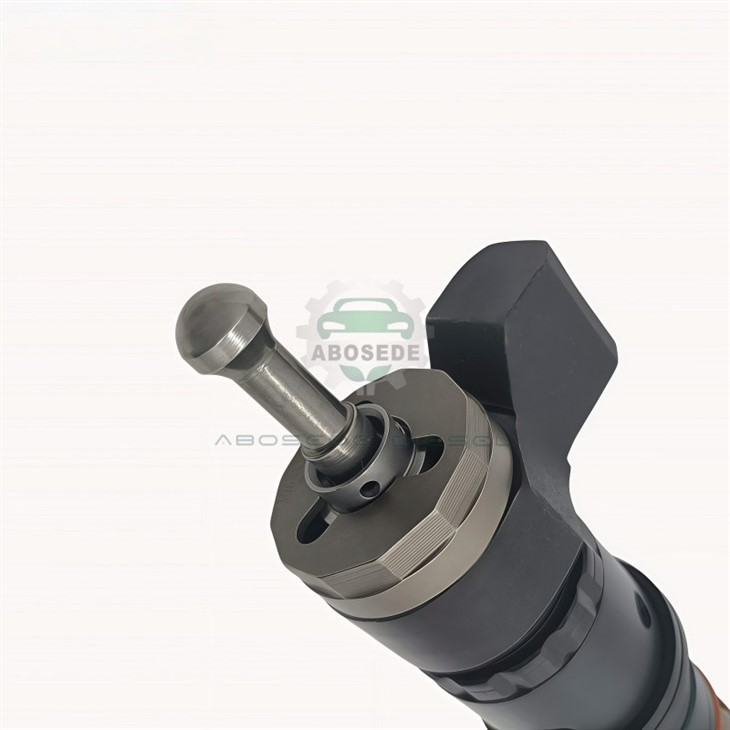

Internally, the injector features a lapped plunger and barrel assembly. These two components are matched with tolerances so tight they cannot be separated. As the rocker arm pushes the plunger down, it pressurizes the fuel trapped beneath it. This design allows the system to achieve injection pressures exceeding 100 MPa (approx. 15,000 psi) without requiring a massive external high-pressure pump. The body is constructed from hardened steel to resist the cyclic fatigue of the camshaft, while the tip is designed to withstand the intense thermal shock of the combustion chamber.





A defining feature of the PT system-and the 3411821-is its use of fuel as a coolant. In a common rail system, the injector is a passive valve. In the PT system, the injector is an active cooling device.

Approximately 80% of the fuel entering the 3411821 does not get injected into the cylinder. Instead, it bypasses the plunger, flows through the injector body, absorbs heat from the cylinder head and the injector tip, and returns to the fuel tank via the return manifold. This continuous circulation is vital; without it, the injector tip would melt. Consequently, the health of the 3411821 is directly tied to the unrestricted flow of the return lines. A kinked or clogged return line will starve the injector of cooling flow, leading to rapid thermal failure.



Q: Can I clean and reuse my old 3411821 injectors?
A: While you can clean the exterior, the internal plunger and barrel are lapped pairs. If there is any wear or scoring, cleaning will not restore the hydraulic seal. It is generally safer to replace them with tested units to avoid damaging the cylinder head.

Q: What does "Top Stop" mean and why is it important?
A: "Top Stop" is the precise vertical position of the injector plunger when fully depressed. If this height is incorrect, the injection timing will be wrong. Late injection causes smoke and high exhaust temps; early injection causes hard starting and knocking.

Q: Why is my oil level rising on the dipstick?
A: This indicates "fuel dilution." If the O-rings on the 3411821 fail, or if the injector cup leaks, raw fuel enters the crankcase. This thins the oil and can destroy engine bearings if not addressed immediately.

Q: Is the 3411821 compatible with biodiesel?
A: Yes, the mechanical nature of the PT system handles biodiesel blends well. However, biodiesel acts as a solvent and can loosen deposits in old tanks, which may then clog the injector screens. Frequent filter changes are recommended during the transition.

Q: How do I know if the injector cup is bad?
A: A bad cup often allows combustion gases to leak into the coolant (bubbles in the radiator) or allows coolant to enter the cylinder. If you see white smoke or unexplained coolant loss, inspect the cups before replacing the injectors.
