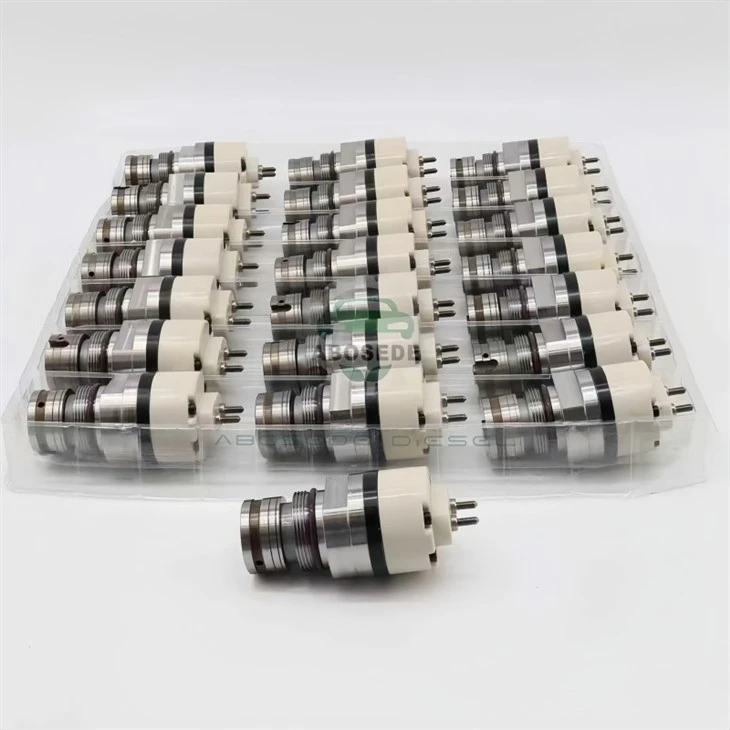

Caterpillar C18 Fuel Injector Solenoid Valve Assembly – Precision Engine Control For Heavy-Duty Performance



The fuel system in a Caterpillar C18 is not merely a delivery network-it is the neurological center of power generation. At its heart resides the electromagnetic solenoid valve assembly, an actuator that translates electronic command into hydraulic precision. This assembly governs injection timing, fuel quantity, and pressure modulation across all six cylinders, directly influencing torque curves and exhaust profiles. For operators in mining, marine propulsion, and stationary power, injector solenoid integrity determines whether a 12-hour shift yields peak productivity or premature derating.

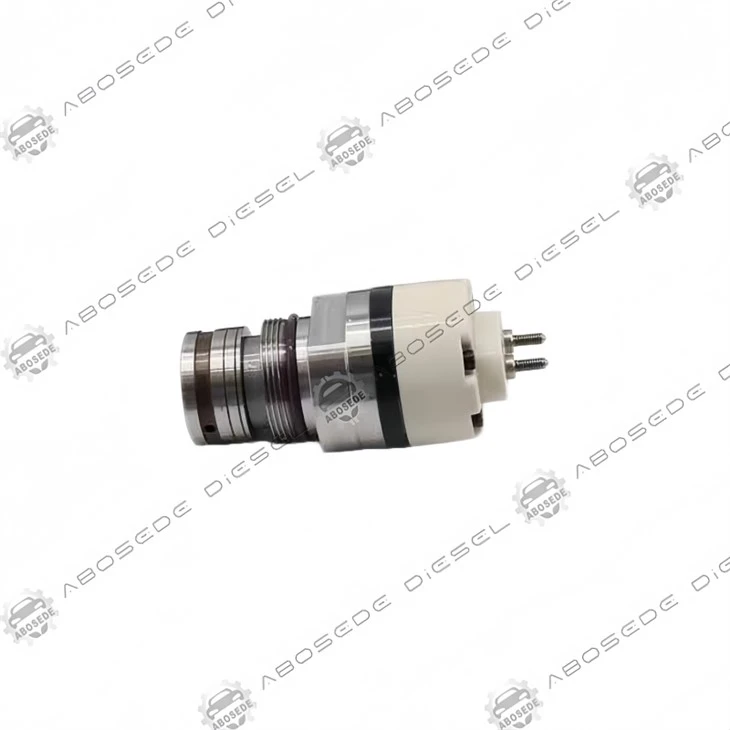

This listing presents a complete solenoid valve assembly engineered to meet OEM specifications for C18 mechanical and electronic unit injector (MEUI) systems. Beyond a simple coil-and-plunger construct, this unit integrates a high-speed switching valve, precision-ground armature, and O-ring sealing suite-all pre-assembled for immediate installation.



The assembly operates on a 12V DC nominal supply with a peak current draw of 4.2A during actuation, sustaining a holding current of 1.8A to minimize thermal stress. Its response latency registers at ≤0.8ms from signal reception to pilot valve movement, enabling injection events as brief as 1.2ms at high engine speeds. The solenoid housing features a zinc-nickel plated casing with an IP67 ingress protection rating, resisting fuel seepage and corrosive byproducts from EGR coolers.

Parameter	Value
Operating Voltage	10.5–14.5V DC
Coil Resistance	2.85Ω ± 0.15Ω @ 20°C
Peak Pull Force	48N at 1.5mm stroke
Duty Cycle	Intermittent (max 15% ON-time)
Temperature Range	-40°C to +135°C (fuel sump)



This solenoid assembly directly interfaces with the following injector bodies validated across C18 industrial and marine applications. Each part number represents a production revision confirmed through bench flow testing and ECM feedback analysis:

First-Generation MEUI (Pre-2003): 253-0618, 253-0597, 253-0616, 211-3028, 211-3026

Enhanced HEUI (2003–2008): 10R-2772, 10R-7228, 10R-7230, 10R-7231, 10R-8988, 10R-9787, 10R-0724

High-Output Variants (Post-2008): 235-1403, 291-5911, 276-8307, 295-9085, 365-8156, 374-0705, 10R-3265, 20R-8048

Critical Note: While 10R-3265 and 20R-8048 appear in later C18 ACERT variants, they retain identical solenoid mounting geometry and electrical pinout, ensuring backward compatibility with earlier ECM revisions after minor fuel calibration updates.



Waveform Fidelity: Factory-spec solenoids exhibit a distinct current rise slope of 2.1A/ms. Generic units often deviate to 1.6A/ms, delaying pilot valve opening by 0.3ms-a margin that translates to 4° of crankshaft angle variance at 1800 RPM, altering combustion phasing and raising exhaust gas temperatures by up to 35°C.

Magnetic Circuit Stability: The armature and pole piece employ a vacuum-annealed 430FR stainless steel alloy, maintaining flux density above 1.2T even when oil viscosity drops below 10 cSt. This ensures consistent pull-in time across cold starts and hot restarts alike.

Seal Integrity: Each assembly undergoes a 6-bar helium leak test prior to packaging. The lower O-ring groove features a trapezoidal profile that compresses to 32% of its original cross-section upon torqueing, eliminating fuel bleed past the injector barrel-a common failure point in non-OE replicas.



Installation follows standard C18 valve cover removal and rocker arm access procedures, but attention must be directed to three non-obvious points:

Terminal Torque: Retaining nuts must be tightened to 6.8 N·m-exceeding this deforms the internal bushing, increasing armature friction by 15–20%.

Lash Adjustment: With the solenoid seated, a 0.6mm feeler gauge must pass freely between the armature stop and pole face at full de-energization. Tighter clearance induces residual magnetism drag; looser gaps extend switching time.

ECM Relearn: After replacing a solenoid bank, perform a "Injector Code Reset" via Cat ET or equivalent software. This recalibrates the trim files for each cylinder, compensating for unit-to-unit inductance tolerances up to ±5%.



Q1: How do I distinguish between a failed solenoid and a sticking plunger in my C18 injector?
Measure coil resistance across terminals. If within 2.7–3.0Ω but the cylinder still misfires under load, perform a "buzz test" via the ECM. A healthy solenoid produces a sharp metallic click at 2Hz; a dull thud indicates plunger stiction-often caused by fuel degradation-requiring injector removal and ultrasonic cleaning.

Q2: Can I replace only one solenoid in a bank, or must I replace all six simultaneously?
Electrically, single replacement is feasible. However, practical experience shows that solenoids in the same bank age at similar rates due to shared thermal exposure. Replacing one while leaving five older units often leads to uneven cylinder contributions, triggering the ECM's "fuel delivery drift" fault after 150–200 operating hours. We recommend pairing replacements at minimum-cylinders 1&6 or 3&4-to balance magnetic decay profiles.

Q3: Does this assembly include the internal filter screen found in later 10R-9787 revisions?
Yes. All units supplied incorporate a 35-micron stainless steel mesh screen pressed into the fuel inlet port. This screen captures abrasive particles (silicon carbide from injector wear) that would otherwise erode the solenoid's pilot seat, extending service intervals to 4,500 hours under normal fuel filtration (2-micron absolute).

Q4: What diagnostic codes typically appear when this solenoid fails?
The ECM logs code 0360-05 (Injector Solenoid open circuit) or 0360-06 (short to ground) for electrical faults. For magnetic degradation without a complete open, code 164-11 (Fuel Injection Rate out of calibration) appears, often accompanied by a "cylinder contribution" test failure. Note that code 164-11 may also indicate fuel pressure issues-always cross-check rail pressure before condemning the solenoid.

Q5: Can this assembly handle biodiesel blends up to B20 without performance loss?
Yes. The coil insulation is rated to withstand biodiesel's higher electrical conductivity (up to 200 pS/m vs. 50 pS/m for petroleum diesel) without degradation. However, the higher viscosity of B20 can slow armature return by 0.1ms-well within ECM adaptive learning limits. For B30 or above, we advise shortening the replacement interval to 2,500 hours due to accelerated seal swelling.

Q6: Why does my new solenoid produce a louder clicking noise than the original?
The louder acoustic signature-often described as a "crisp rap"-indicates a tighter armature-to-stop seating, which is actually a positive indicator of minimal wear surface erosion. Original units that have run 8,000+ hours develop a softer contact due to microscopic pitting from cavitation erosion. As long as the sound is consistent across all cylinders and accompanied by stable fuel trim values (±2.5%), no corrective action is required.
