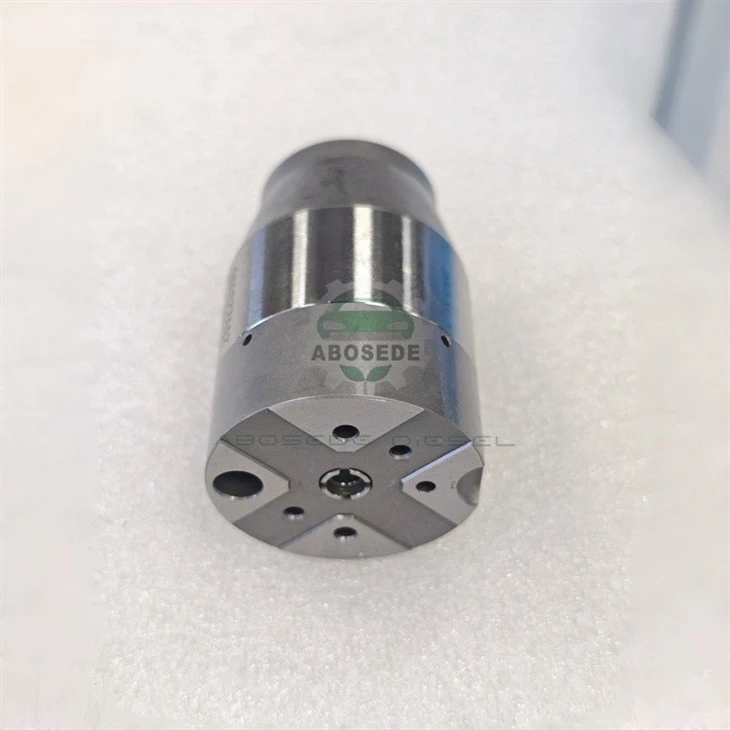

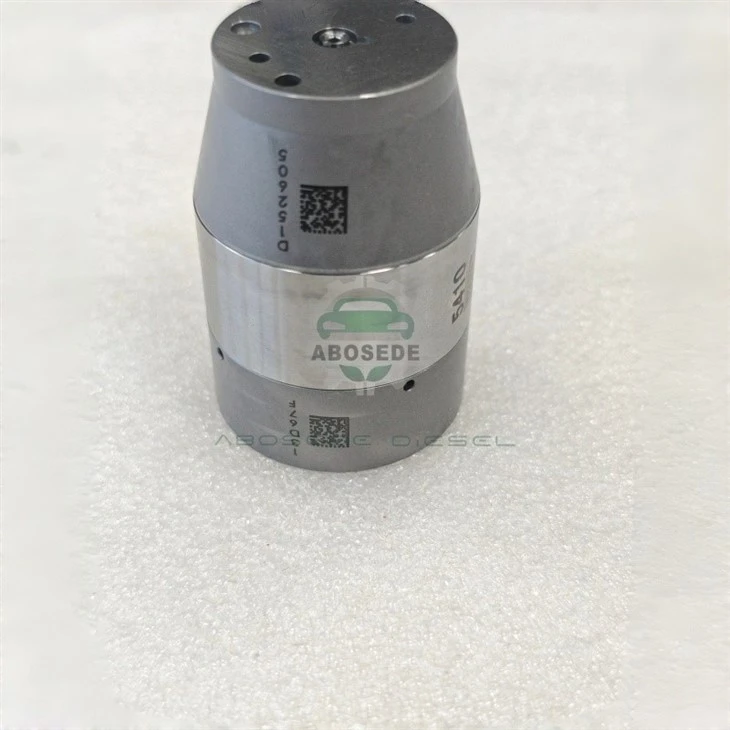

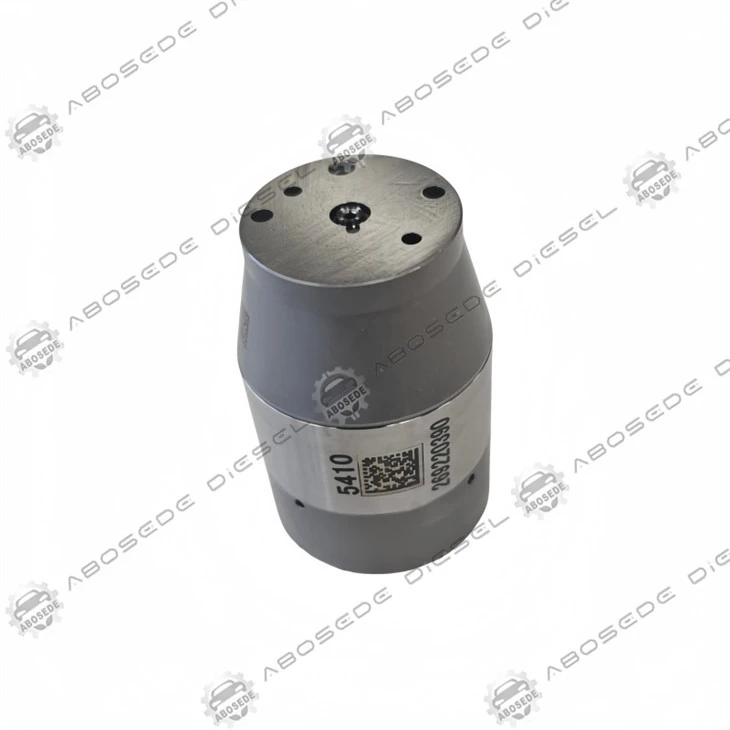

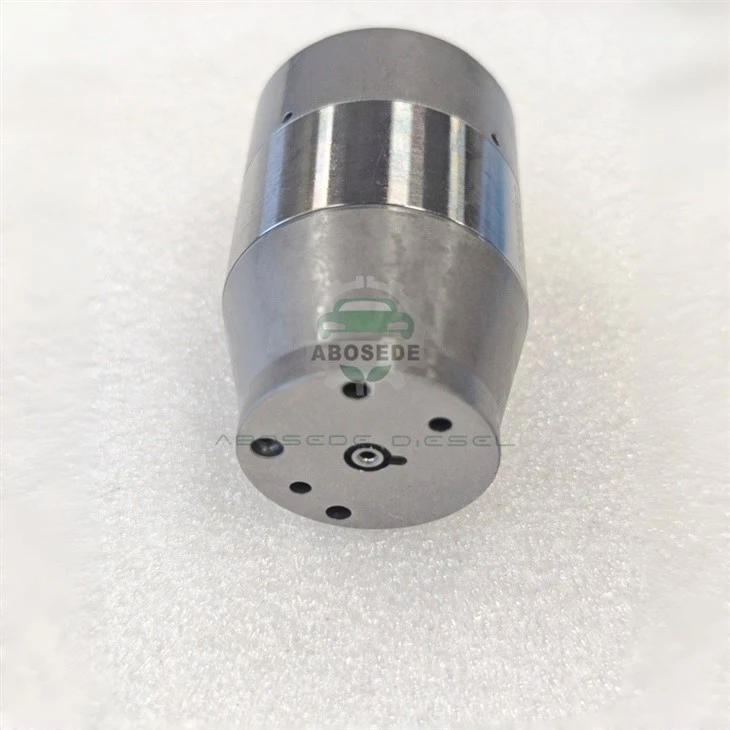

359-4080 Injector Control Valve: The Timing Arbitrator That Decides When Injection Begins And Ends

A common-rail injector is often described as a fuel metering device. It is more accurate to describe it as a timing device that happens to move fuel. The 359-4080 injector control valve is the component that makes that description true. It does not set the quantity directly; it sets the moment the control chamber vents and the moment it reseals, and quantity is the integral of the needle lift that follows. That distinction matters because a control valve can be hydraulically sound, electrically functional and still produce the wrong injection event - not because it leaks, but because it is late. Reading this valve as a timing arbitrator rather than as a seal changes both the test method and the replacement decision.

The valve sits between the control chamber and the low-pressure return. When the solenoid lifts the armature, the valve opens and the control chamber vents, the needle lifts and injection begins. When the solenoid releases, the valve reseals, control chamber pressure rebuilds and the needle closes. Every injection event is therefore bounded by two valve transitions, not by one. Opening transition sets the start of injection; closing transition sets the end. A valve that opens late and closes late shifts the whole event without changing its duration, which produces timing error rather than quantity error. A valve that opens correctly but closes slowly lengthens the event and increases quantity. These two failure modes are different and require different verification.

The seat is where the closing transition is decided. A seat with a wear ring or a carbon film does not seal instantly; it seals after a short leakage phase during which control chamber pressure continues to vent. That extended venting delays needle closing, lengthens the injection event and raises quantity, especially at small pilot quantities where the event is short and the leakage phase is proportionally larger. The signature on the vehicle is a slightly rich idle and elevated smoke at low load, with return flow that looks acceptable. Seat condition is verified by measuring closing delay, not by measuring leakage alone.

The armature and valve pin form a moving mass, and that mass determines how quickly the valve can respond to the solenoid command. A heavier or contaminated armature assembly responds more slowly at both transitions, and the effect is speed-dependent: at low engine speed there is time for the valve to complete its travel, at high speed there is not. This is why a worn control valve often produces acceptable behaviour at idle and degraded behaviour at high speed, and why a single idle-based test can miss it. Response inertia is verified by comparing command-to-lift delay at two speeds, not one.

The solenoid is an inductor, and its current rise profile carries information about the mechanical load it is driving. A valve with increased friction or a partially seized armature shows a different current slope than a healthy unit, because the armature does not accelerate as expected. Measuring solenoid current rise and hold current against a known-good reference is a non-invasive way to screen the valve before removing the injector. It does not replace hydraulic testing, but it identifies electrically-driven mechanical faults earlier than a return flow test will.

Q1: Does the 359-4080 control valve set injection quantity directly?
No. It sets the opening and closing transitions. Quantity is the result of how long the needle stays lifted, which the valve bounds but does not measure.

Q2: The injector is rich at idle with normal return flow. Could the valve be the cause?
Yes. A slow-closing valve lengthens short events proportionally more than long ones, which shows up as richness at small quantities with acceptable leakage figures.

Q3: Why does a valve fault appear at high speed but not at idle?
Armature response inertia becomes limiting when there is less time per event. Low-speed testing gives the valve time to complete travel and hides the fault.

Q4: Can solenoid current measurement detect a mechanical valve fault?
It can detect increased friction or a partially seized armature through a changed current slope. It is a screening tool, not a replacement for hydraulic verification.

Q5: Why does return line restriction mimic a control valve fault?
Back-pressure opposes venting and delays the opening transition. The symptom is temperature-dependent timing error that disappears after the return circuit is corrected.

Q6: What should be recorded after fitting a replacement valve?
Solenoid resistance, command-to-lift delay at two speeds and closing delay. Without a baseline, future comparison is impossible.
