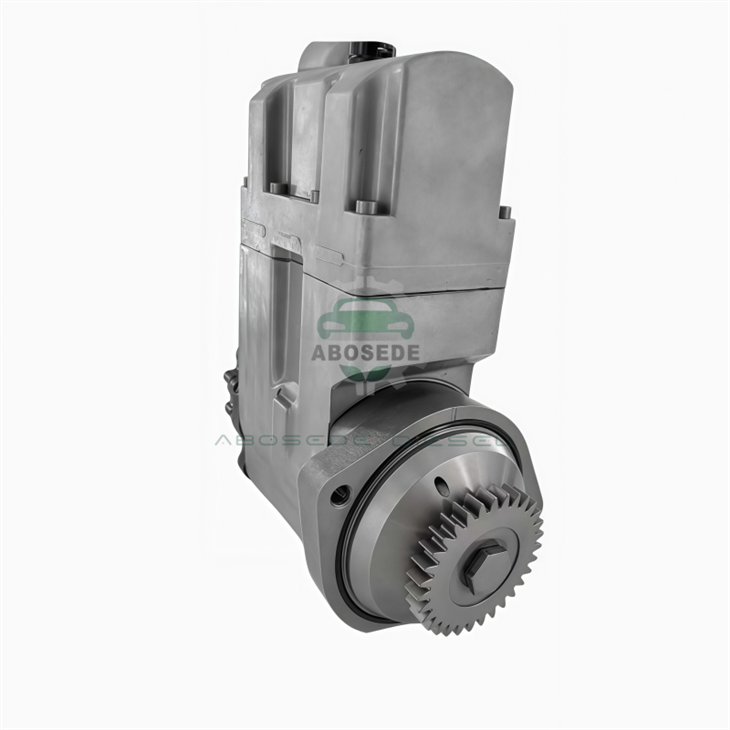

10R-7148 Actuator Pump Small Flange 31-Tooth W/ Transfer Pump | HEUI High-Pressure Oil Pump For CAT C7 / C9 Diesel Engines | Reman/OEM Replacement
video
10R-7148 Actuator Pump Small Flange 31-Tooth W/ Transfer Pump | HEUI High-Pressure Oil Pump For CAT C7 / C9 Diesel Engines | Reman/OEM Replacement

10R-7148 Actuator Pump Small Flange 31-Tooth W/ Transfer Pump | HEUI High-Pressure Oil Pump For CAT C7 / C9 Diesel Engines | Reman/OEM Replacement

1. Product:10R-7148
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal

Send InquiryChat Now
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

For a field service technician, few scenarios are as frustrating as a CAT C7 or C9 engine that cranks vigorously but refuses to fire. Often, the instinct is to check the batteries or the starter, yet the root cause frequently lies in the hydraulic actuation loop. The 10R-7148​ is the upgraded/remanufactured service part number for the 312-0678​ HEUI (Hydraulically Actuated Electronic Unit Injector) pump. Unlike a standard fuel lift pump, this unit must generate high-pressure engine oil-often up to 3,600–4,000 PSI-to physically force the unit injectors to open. When this pump's internal piston rollers wear or the transfer pump section weakens, the ICP (Injection Control Pressure) fails to build, leaving the ECM (Engine Control Module) in a "dead cranking" state. Understanding the 10R-7148 is understanding the difference between a fuel delivery issue and a hydraulic actuation failure.



▶ The 31-Tooth Small Flange: A Physical Key to Engine Timing



Shifting our view to the mechanical mating surface, the "Small Flange" descriptor is a critical identifier for parts specialists. The 10R-7148​ features a 31-tooth drive gear/spline​ designed to engage specifically with the rear gear train of certain C7 and C9 engine arrangements. This is not a universal fit; the tooth profile ensures the pump rotates at exactly half engine speed, maintaining the precise rhythmic pulse required for the HEUI system. Installing a large flange variant (different tooth count) results in catastrophic gear clash or incorrect pump speed, leading to immediate valve train damage. For the parts counter professional, verifying the "Small Flange 31-Tooth" spec against the engine serial number is the first line of defense against costly return shipping and engine downtime.



▶ High-Pressure Oil Generation & Volumetric Efficiency



Focusing on the core hydraulic function, the 10R-7148 utilizes a variable displacement, axial-piston design (or lobed rotor depending on specific sub-revision) to intensify engine oil pressure. The ECM commands the IPR (Injection Pressure Regulator) valve to meter oil return flow, thereby controlling the pressure delivered to the High-Pressure Oil Manifold (HPOM). Data logs on healthy C9 engines show that this pump must maintain stable pressure even during rapid transient loads (e.g., a wheel loader hitting a pile of gravel). If the piston shoes or the swashplate ramp of the 10R-7148 wears, the pump cannot displace enough volume to maintain pressure above 2,000 PSI​ under load, triggering a "P2289" or "P2290" (Injector Control Pressure Too Low) diagnostic code.





▶ Installation Best Practices & System Priming



From the workshop bay perspective, installing the 10R-7148 requires more than just bolting it on. The number one cause of infant failure is dry starting. The pump should be pre-filled with clean 10W-30 or 15W-40 diesel engine oil​ through the outlet port to ensure immediate lubrication upon startup. The mounting bolts require a star-pattern torque sequence, typically to 18–22 ft-lbs (24–30 Nm). Crucially, after installation, the fuel system must be bled at the secondary filter and the transfer pump inlet to remove air. Technicians should also inspect the O-ring seals on the High-Pressure Oil Standpipe (if separate) that connects the pump to the engine block; a weeping O-ring here will cause hard starts that mimic a bad IPR valve.





❓ Frequently Asked Questions (FAQ)



Q1: Is the 10R-7148 directly interchangeable with the 312-0678?​

A: Yes. 10R-7148 is the Caterpillar Remanufactured part number that supersedes or directly replaces the 312-0678 in most service scenarios. Functionally and dimensionally, they are identical for the applicable C7/C9 engine arrangements.

Q2: My engine cranks but won't start, and I have a code for Low Injection Control Pressure (ICP). Is the 10R-7148 definitely the problem?​

A: Not always. While a failed 10R-7148 is a prime suspect, the HEUI system relies on sealed high-pressure oil lines (standpipes and dummy plugs) in the cylinder heads. A leaking O-ring on a standpipe will drop ICP pressure just as fast. It is best practice to perform an air test on the high-pressure oil system before condemning the pump.

Q3: Can I use a 10R-7148 from a C7 engine on a C9 engine?​

A: Generally, yes, if both engines utilize the "Small Flange 31-Tooth" configuration. However, always cross-reference the specific Arrangement Number of the engine. Some C9 variants (especially ACERT) had different pump drive ratios or flange sizes. When in doubt, match the part number stamped on the old pump's housing.

Q4: What maintenance extends the life of the 10R-7148's transfer pump section?​

A: The transfer pump uses diesel fuel for lubrication. Strict adherence to fuel filter change intervals (using 2-micron or 10-micron rated filters) is the single most effective way to prevent premature vane wear inside the 10R-7148. Water separation is also critical; drain water from fuel water separators weekly.

Q5: Why does my 10R-7148 installation result in a long crank time on cold mornings?​

A: This is often due to the anti-drain-back valve (if equipped) or air trapped in the system. Ensure the pump was pre-oiled before installation. If the problem persists, check the Intake Air Heater (IAH) operation and the condition of the battery cables; slow crank speeds hinder the HEUI pump's ability to build initial oil pressure.

Q6: Does the 10R-7148 come with a new gasket for the engine block mounting surface?​

A: Most reputable suppliers include the mounting gasket/o-ring kit. However, it is always best to verify the contents upon receipt. Never reuse the old mounting gasket, as high-pressure oil leaks are difficult to diagnose once the engine is reassembled.
