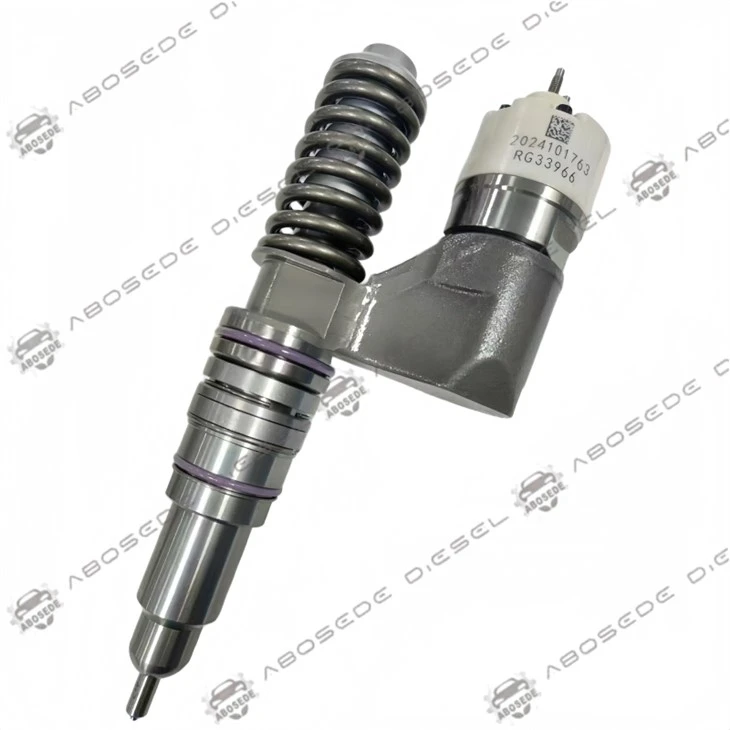

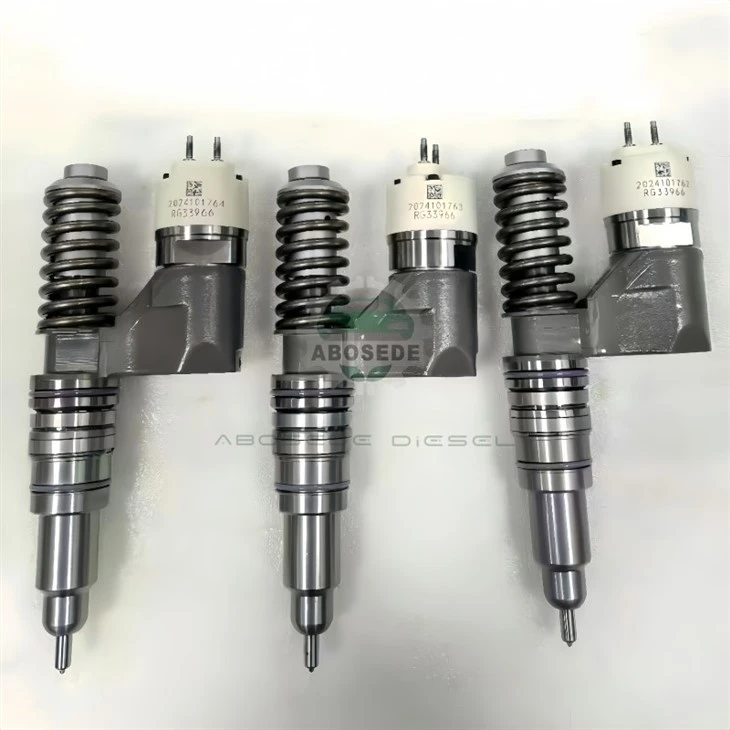

RG33966 Injector – Precision Fuel Delivery For Heavy-Duty Common Rail Systems

Engineered for demanding diesel environments, the RG33966 injector delivers precise fuel metering and high-pressure injection across varying load cycles. As a direct-fit replacement component, this unit is calibrated to restore factory engine performance, reduce fuel consumption, and minimize exhaust emissions. Designed for professional workshop installation, the RG33966 nozzle assembly ensures reliable cold-start behavior and stable idle control, making it a preferred choice among diesel service centers handling modern common rail platforms.

Factory tolerances are strictly maintained throughout the RG33966 production process. Operating pressure thresholds are set at 1,800 bar, with internal solenoid response times calibrated to within 0.1 ms variance. The injector features a 7-hole nozzle design with an 85° cone angle, delivering atomized fuel spray optimized for complete combustion. Static flow rate is rated at 420 cc/min at 100 bar back pressure. All units undergo helium leak testing to ensure sealing integrity below 1.5 cc/min external leakage. Connector type complies with DIN 72552 standards, and the included copper sealing washer is pre-installed for immediate fitment.

This injector replaces OEM part numbers RG33966, 0 445 110 395, and BOSCH-941A. Direct interchangeability includes Cummins ISBe, ISDe, and Volvo D7 series engine platforms, along with certain Scania industrial power units. Cross-reference validations confirm compatibility with Delphi E1 and E3 ECM architectures without requiring driver recalibration. For fleet operators managing mixed equipment inventories, the RG33966 simplifies spare part stockkeeping by covering multiple engine variants within a single SKU. Verification of injector classification codes is recommended prior to ordering to ensure precise match with existing fuel trim tables.

Proper setting of the trim code via diagnostic software is mandatory after mechanical installation. The RG33966 injector requires 25 Nm tightening torque for the clamping bolt and 30 Nm for the high-pressure connection line. Before insertion, the injector bore must be cleaned using a reamer tool to remove carbon deposits, ensuring correct seating depth. New leak-off pipes should be fitted to prevent fuel return line restrictions. Following physical mounting, the fuel adaptation reset procedure must be executed using OEM-level scan tools to synchronize the new injector with the ECU fuel map. Test the system for external leaks at idle and at rated speed before road testing. Always replace the O-ring and copper gasket supplied with the unit, even if existing components appear serviceable.

Injector degradation typically manifests through rough idling, increased smoke opacity, or elevated fuel trims. Timely replacement of the RG33966 injector prevents secondary damage to the high-pressure pump and rail pressure sensor. Workshops stocking this part number reduce vehicle downtime for commercial haulers operating in stop-and-go or heavy-load conditions. Common rail system efficiency hinges on injector consistency; deviating spray patterns cause uneven cylinder loading, which accelerates piston ring wear. By fitting the RG33966, service providers restore balanced combustion, lower particulate matter output, and prolong DPF regeneration intervals. Preventative exchange of injectors at 400,000 km intervals is considered best practice for over-the-road diesel fleets.

Q1: Does RG33966 require any software coding after installation?
A: Yes, the injector trim code must be entered into the engine ECU using a compatible diagnostic tool. Failure to code the unit may result in rough running or incorrect fuel quantity adjustments.

Q2: Is this injector compatible with biodiesel blends up to B20?
A: The RG33966 sealing materials and solenoid design support B20 biodiesel (up to 20% FAME content). For higher blends, consult the manufacturer's material compatibility bulletin.

Q3: What is the typical lead time for bulk orders of RG33966?
A: Standard stock orders ship within 24–48 hours. For quantities exceeding 50 units, please contact our sales team to confirm production scheduling and shipping timelines.

Q4: Can RG33966 be installed without removing the cylinder head?
A: Yes, the injector is accessible via the valve cover opening on most compatible engines. A proper puller tool is recommended for extraction without damaging the bore surface.

Q5: How can I verify if RG33966 is the correct replacement for my engine serial number?
A: Compare your existing injector body number and connector type. Our technical team can cross-check engine serial ranges upon request to ensure an exact match.
