The Definitive Architecture And Fluid-Dynamic Breakdown Of The CAT 8N7005 Mechanical Pencil Nozzle For Advanced Common Rail Interfacing

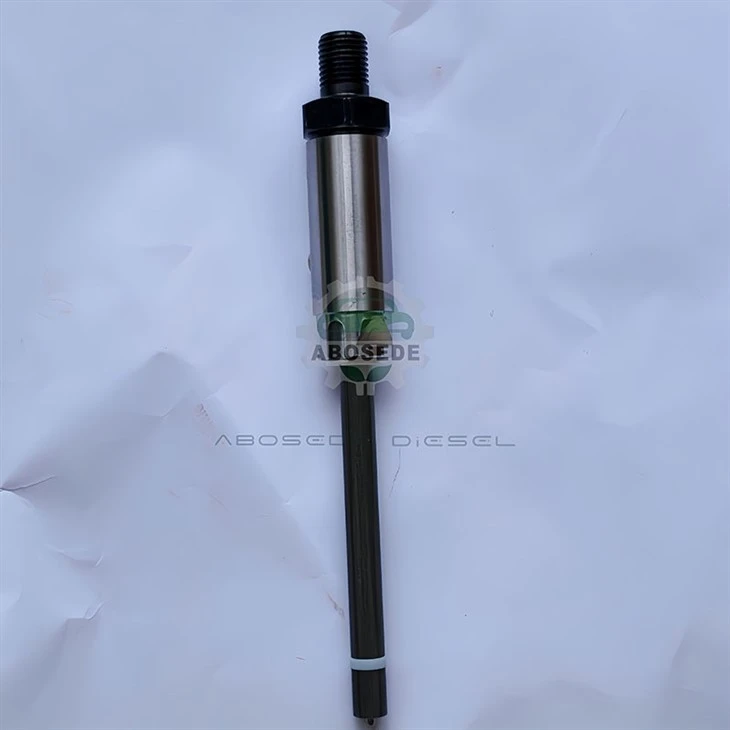

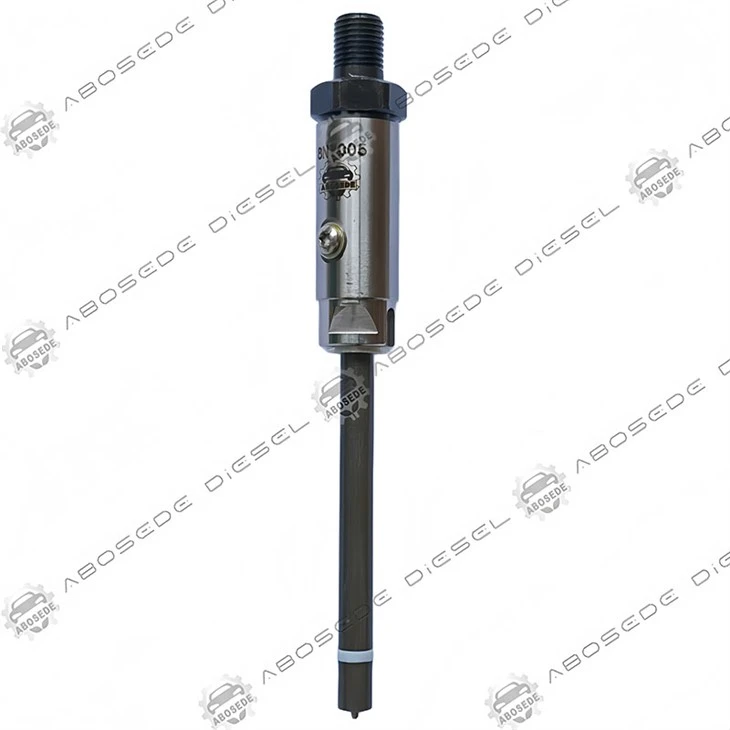

The CAT 8N7005 pencil-type fuel injection nozzle is a highly engineered fluid-delivery instrument explicitly developed to handle the internal physics of classic, heavy-displacement Caterpillar powertrain systems. Operating as a direct-injection mechanical actuator, this self-contained fuel valve nozzle regulates fuel delivery, fluid shearing, and combustion timing across a broad range of heavy earthmoving, marine propulsion, and primary industrial operations.

For international equipment dealers, corporate procurement managers, and specialized fuel injection workshop supervisors, securing premium-grade replacement nozzles is central to maintaining system-wide hydraulic integrity. By matching exact fuel flow patterns to the unique combustion bowl layouts of legacy CAT blocks, this micro-orifice hardware directly mitigates issues like raw fuel bypass, high-rpm cylinder dropping, and sudden power flat-spots. Investing in this component protects high-pressure common rail conversion systems from premature thermal wear while keeping operational overhead low across commercial equipment operations.





Critical Parameter	Technical Classification & Metric
Component Designation	High-Pressure Pencil-Style Injector Nozzle
Manufacturer Reference	Caterpillar Replacement Component
Industry Tracking Part Number	CAT 8N7005 / 8N-7005
Remanufactured Alternate	0R-3418 (Factory Standard Drop-in)
Engine Architecture Matrix	CAT 3304, 3304B, 3306, 3306B, 3406, 3406B, 3406C
Physical Dimensions	Length: 8.7 in
Fuel Blend Adaptability	Ultra-Low Sulfur Diesel (ULSD) & Standard Marine Gas Oil





Modern low-sulfur industrial fuels provide significantly less natural lubrication than historical diesel formulations. To prevent early needle seizure and spray channel deformation under intense cycling, the assembly uses specialized alloy updates:

✦ High-Hardness Carbon Steel Sheathing

The outer shell is constructed using high-density carbon steel alloys, providing a rigid chassis that resists high-frequency engine casing vibrations. This high-integrity framing prevents micro-warping under excessive cylinder clamping force, ensuring zero external blow-by along the engine head interface.

✦ Precision Nitrided Needle Guides

The internal sliding needle valve is treated with gas nitriding, producing a hard, low-friction wear armor. This precision treatment helps the needle slide smoothly through thousands of rapid open-close cycles, maintaining precise volumetric sealing margins even when managing low-lubricity ULSD blends.

✦ Laser-Eutectic Dispersal Channels

The spray tip uses micro-orifices calibrated to create optimized fluid-shearing geometry. The spray holes atomize heavy fuel into a highly volatile cloud, shortening ignition delay and maximizing fuel burn inside the cylinder bowl to cut down on raw smoke emissions.

[Mechanical Fuel Pulse] ──► [Internal Pressure Rise] ──► [Nitrided Needle Lift] ──► [Micro-Orifice Vaporization]





The broad engine compatibility of the CAT 8N7005 makes it a high-volume component across several critical industrial asset groups:

🚜 Heavy Excavation & Material Transport

Tracked Earthmoving Tractors: Maintains precise injection timing on CAT D5B, D6D, D6H, and D7G configurations running under variable drawbar drag.

Articulated Mass Haulers: Powers multi-cylinder engines on D250B and D300D dump vehicles navigating steep, low-traction terrain.

Rigid Motor Graders: Supports smooth engine idling and steady engine output on 120G, 140G, and 160H grading equipment.

⚓ Commercial Marine Propulsion & Power

Deep-Water Workboats: Serves as a reliable direct injection actuator for auxiliary power blocks and primary 3306B marine propulsion units exposed to high moisture environments.

Offshore Genset Packages: Provides steady generator operation under continuous baseline electrical loads on isolated offshore installations.





Because modern diesel common rail retrofits and direct injection lines work via tight pressure balancing, a worn or dripping nozzle assembly displays distinct mechanical system failure codes:

Extended Cranking Intervals: Internal seat degradation lets fuel seep past the needle tip when the engine is off. This system leak-down drops pressure in the fuel line, forcing the primary fuel transfer pump to crank longer to purge air pockets and restore required pressure.

Exhaust Gas Temperature (EGT) Spikes: When micro-orifices face internal abrasive wear, they tend to over-fuel late in the combustion stroke. This delayed fuel burn sends exhaust temperatures upward, exposing turbocharger impellers to thermal stress.

Rotational Idle Instability: Fuel flow variances between mismatched nozzle sets confuse the engine governor. This variation causes fluctuating RPM readings, rough idling, and engine hunting.





Q1: How does the mechanical design of the CAT 8N7005 nozzle maintain reliable operation when paired with modern high-pressure common rail components?

While the nozzle uses a mechanical pencil configuration, it serves as the final delivery interface when matched with upstream pressure intensifiers. The tight internal sealing clearances handle high hydraulic inputs without flexing, ensuring that multi-stage fuel charges maintain clean atomization without system pressure drops.

Q2: Why do generic, reverse-engineered aftermarket nozzle brands often trigger up to a 5% drop in overall engine power?

Generic alternatives frequently use standard drill lines that miss the exact spray angles required by the proprietary Caterpillar combustion bowl. This mismatch alters the spray pattern, leading to fuel pooling along the piston crown, incomplete combustion, and lower fuel economy.

Q3: What specific maintenance step is required to prevent early needle seizure when switching fleets to Ultra-Low Sulfur Diesel?

Since ULSD lacks natural lubricating properties, using high-efficiency secondary filters with an absolute 2-micron rating is essential. These filters catch fine abrasive particles that could otherwise lodge between the nitrided needle valve and the body guide, preventing early component scoring.

Q4: Can a single dripping nozzle inside a multi-cylinder engine assembly cause structural failure in neighboring cylinders?

Yes. A failing nozzle that drips unmetered diesel washes away the protective cylinder wall oil film. This fluid wash down spikes friction between the piston rings and liner, causing scuffing and introducing raw diesel into the engine oil pan, which dilutes overall engine lubrication.

Q5: Why is updating the physical nozzle sealing washers mandatory during every system service interval?

Compression seals deform slightly upon installation to block high-pressure combustion gases from entering the fuel bore. Reusing old washers can let hot gas escape up the injector body, cooking the fuel inside the nozzle shank and causing tip clogging and fuel flow issues.
