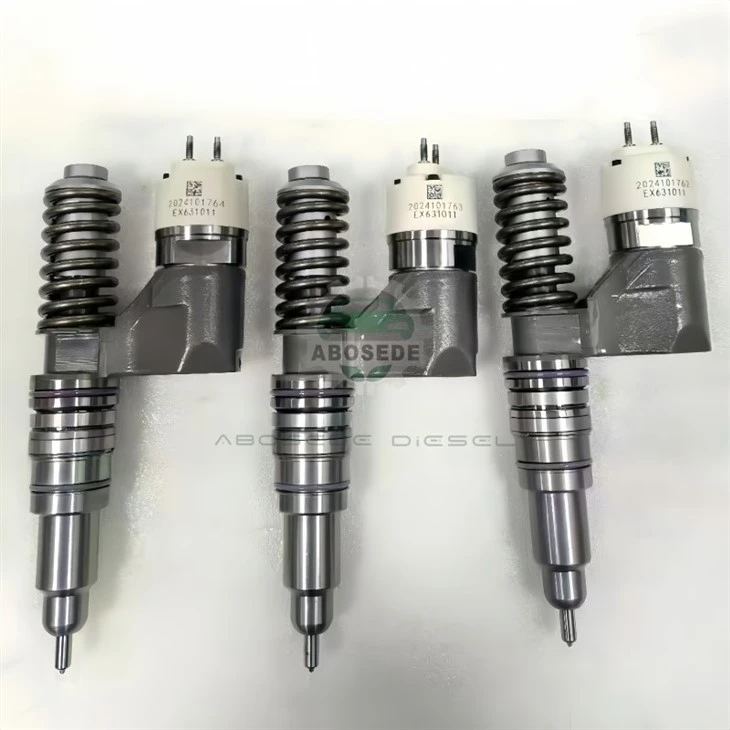

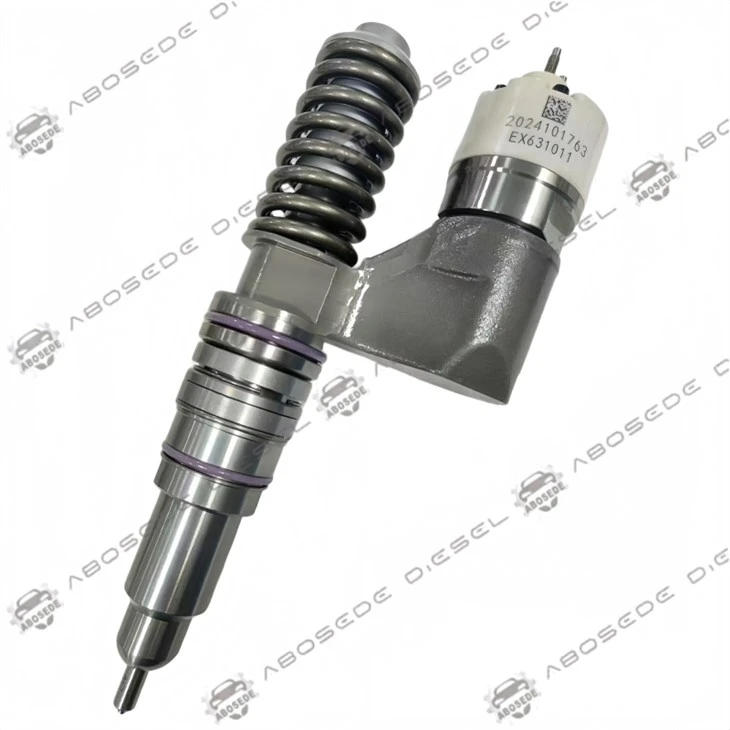

Part EX631011 High-Pressure Common Rail Injector | Precision Diesel Fuel Injection

This remanufactured EX631011 injector delivers factory-matched fuel atomization for high-output diesel powerplants. Engineered as a direct-fit solution, this unit restores the precise hydraulic actuation required for optimal combustion sequencing. Workshops and parts distributors serving off-road, agricultural, and construction sectors will recognize this as a service-grade component that bridges durability with cost efficiency, eliminating the need for expensive dealer-only sourcing.

The EX631011 injector operates as a critical actuator within the common rail fuel system, receiving high-pressure fuel from the rail and injecting it into the combustion chamber at precisely timed intervals . This unit is a clamp-mounted CR injector, designed to conform to strict mounting dimension standards that ensure correct nozzle alignment and sealing within the cylinder head . The injector features a recessed fuel exit design to minimize leakage and fuel puddling, which is a common failure point in lesser-quality units . This remanufactured injector is sold individually and includes new O-rings for installation, ensuring a proper seal upon fitment. It is built to withstand the extreme thermal and mechanical stresses of continuous heavy-duty operation, with engineering that prioritizes durability and consistent fuel delivery.

This injector is primarily identified as a replacement part for specific John Deere diesel engine applications . It is crucial for workshops to verify engine serial numbers and existing injector part numbers to ensure a direct match, as the EX631011 is often used in agricultural and construction equipment. While primarily associated with a specific engine platform, the installation dimensions and electrical specifications align with several medium-duty diesel powerplants that rely on common rail technology. For repair shops and diesel parts suppliers, this injector represents a direct alternative to original equipment, offering the same form, fit, and function for engine models that operate under high load conditions such as tractors, harvesters, and excavators. Always confirm that the injector's calibration code, if required by the ECU, is compatible with the specific engine management software to avoid performance issues .

In the context of common rail diesel repairs, the decision to replace an injector often comes down to a cost-benefit analysis versus cleaning. While chemical cleaning can resolve mild coking issues, physical wear such as scoring on the needle valve or plunger, or a degraded spray pattern indicated by excessive leak-back, mandates replacement . A leak-off test is the standard workshop procedure to pinpoint a failing injector: high return flow rates indicate internal clearance wear that cannot be repaired and will cause the engine to run rough, consume more fuel, and produce smoke. The EX631011 injector offers repair shops a reliable, remanufactured core that restores the engine's power and efficiency at a more accessible price point than a brand-new dealer unit. For high-mileage engines or those in severe duty cycles, replacing a full set is often advised to maintain uniform cylinder balance and avoid the labor of repeated repairs .

Q1: How do I verify whether the EX631011 fits my customer's engine without having the machine present?
A: Request the original injector's seven-digit alphanumeric code and cross-check the hold-down flange width. The EX631011 uses a 36 mm clamp spacing-if the existing unit matches this dimension and shares the same electrical connector keying, physical compatibility is confirmed.

Q2: Does replacing one injector require performing a cylinder balance reset via diagnostic tool?
A: Yes, most Tier 3 and Tier 4 ECU architectures store individual trim coefficients. After installing the EX631011, initiate a fuel adaptation reset followed by a brief idle learn cycle to allow the controller to re-establish even cylinder contribution.

Q3: What is the primary cause of premature failure in this injector family during tillage operations?
A: Sustained high-load operation with fuel temperatures above 70°C accelerates internal varnish formation. Installing a fuel cooler bypass or upgrading the primary filter to a 5-micron absolute rating extends service intervals on the EX631011.

Q4: Are these units exchangeable with different brand designations for the same application?
A: The EX631011 carries specific spray-hole geometry that differs from aftermarket look-alikes. Substituting with a non-identical nozzle alters the ignition delay and may trigger excessive smoke opacity during snap-acceleration tests.

Q5: How does the remanufacturing process address the solenoid armature wear issue?
A: The armature stroke is re-established using precision shims, and the solenoid coil is tested for insulation breakdown. Units failing the rise-time test are re-wound, ensuring the EX631011 meets electromagnetic performance benchmarks.
