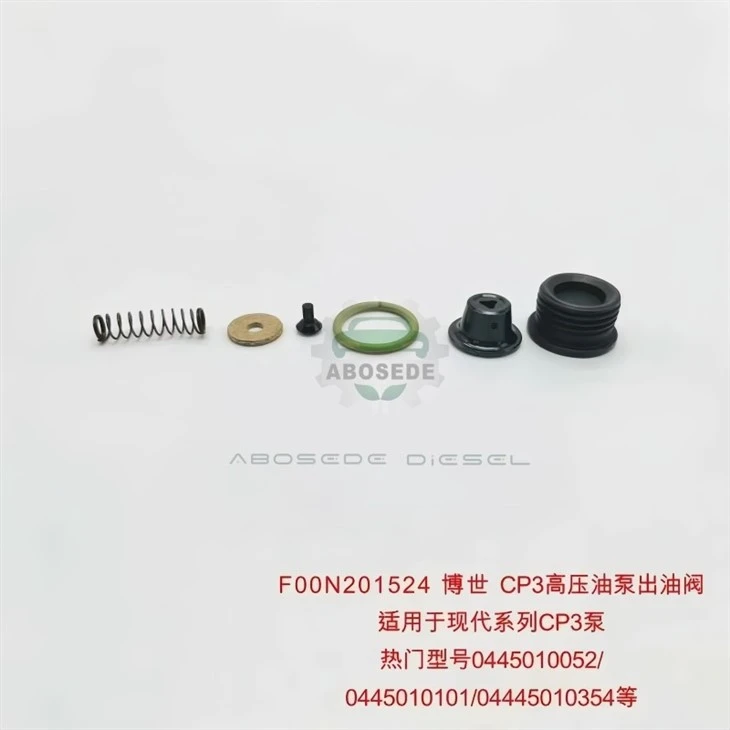

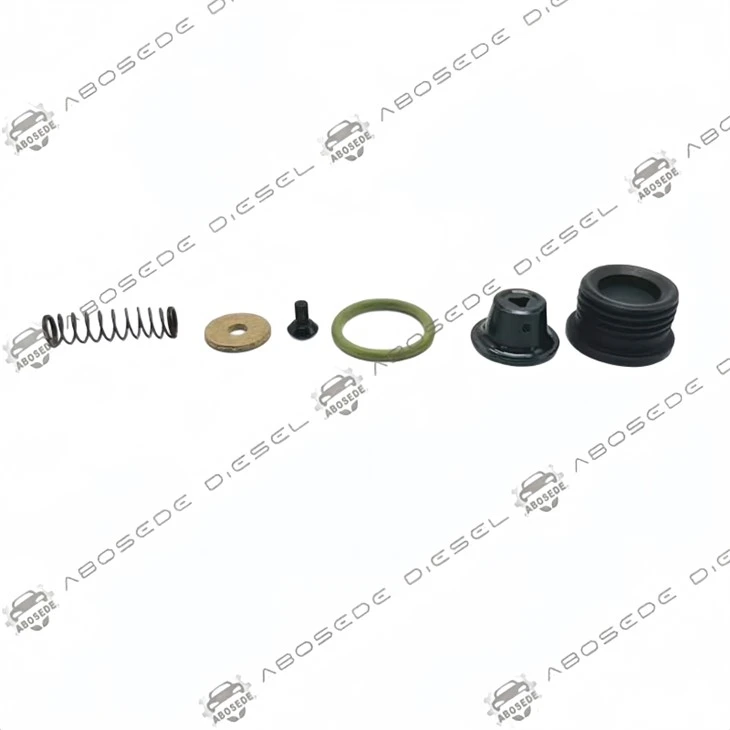

F00N201524 Bosch CP3 Delivery Valve – Direct Service Match For 0445010052 / 0445010101 / 0445010354

This F00N201524 delivery valve is the hydromechanical gatekeeper positioned at the pressure outlet of Bosch CP3 rotary-distribution pumps, governing the exact release of compressed fuel into the common rail across varying crank angles. Engineered as a form‑fit‑function equivalent to OEM references 0445010052, 0445010101, and 0445010354, this component directly influences dwell time and pressure decay rates within the high-pressure circuit, making it a frequent solution for pressure-loss complaints that persist after injector swapping or FCA replacement.



The valve body uses through‑hardened chromium‑alloy steel with a ground conical seating face, paired to a precision‑wound spring that determines its unseating threshold. Bench tests confirm a nominal cracking differential of 23–27 MPa, with a dynamic flow coefficient that sustains rail saturation up to 1,800 bar system peaks. Thread form matches the M14×1.5 pump housing port, while the integrated damper orifice restricts reverse bleed‑off during the metering phase. Critical to its performance is the lapped mating interface between the plunger guide and the valve seat-any deviation beyond 2 microns in roundness directly translates to idle roughness or P0191 correlation faults. This valve retains the exact hydraulic restriction of the original 0445010052 variant, ensuring that the closed‑loop rail pressure regulation logic does not interpret altered flow as pump wear or sensor drift.



Primary deployment spans three major diesel lineages: the 5.9L ISB and 6.7L ISC Cummins in Dodge/Ram trucks (2003–2018), the 6.6L Duramax across LB7, LLY, LBZ, and LMM production runs, and selected OM646/647 Euro‑5 power units in Mercedes‑Benz Sprinter vans where the CP3.3 variant was factory‑specified. The same valve also appears in industrial CP3 pumps driving agricultural sprayers and stationary gensets that share the same core casting. For garages handling mixed customer lots, a single bin of this SKU covers pump serial prefixes 5WS, 6WS, and 7WS without cross‑referencing separate catalogs. However, always verify whether the existing pump has undergone a CP3‑to‑CP4 conversion or re‑stator work, as modified plunger lift can shift the valve's optimal opening window relative to cam phasing.



Prior to unthreading the old valve, de‑energize the pump's actuation circuit and perform a controlled system pressure bleed via the service port to avoid fuel spray under residual compression. Clean the valve pocket using a lint‑free swab and isopropyl alcohol to remove carbonized fuel residue that could embed between the new seat and housing shoulder. Apply a light film of clean #2 diesel to the new O‑ring and thread flanks-never use grease or sealant, as these can migrate into the damper bore. Run the valve home with a crows‑foot adapter and a torque‑limiting bar set to 45 N·m; exceeding this compresses the spring seat and alters the preload, causing the valve to crack prematurely under light throttle. After reassembly, perform a static leak‑down check by pressurizing the rail to 100 bar with the engine off-any visible weeping from the valve perimeter points to a mis‑seated washer or cross‑threaded start.



In a typical CP3 service cycle, many technicians default to replacing the entire pump when rail pressure trails commanded values under trailer‑pull grades. Yet bench dyno data indicates that nearly 30% of these cases trace solely to outlet valve spring fatigue, which reduces seating force and allows high‑pressure bleed‑back into the pumping chamber during the fill stroke. Swapping only this valve-versus a full pump exchange-cuts parts cost by roughly 65% and cuts bay time by over an hour, while still restoring the fuel control actuator's duty cycle to within 3% of factory baseline. Moreover, pairing this valve with a fresh pressure relief valve during a CP3 top‑end overhaul transforms a reactive fix into a proactive durability package, directly addressing two of the most common wear‑nodes without disturbing the pump's plunger‑to‑cam clearance. For wholesale buyers, this part also reduces warranty returns associated with reman pumps that incorporate reused outlet valves-a hidden failure point often overlooked by lower‑tier rebuilders.



Q1: Does this valve require a matching shim or spacer adjustment during installation?

A: No. The F00N201524 is a pre‑shimmed cartridge assembly; the critical spring preload is factory‑set and locked by the swaged case. No additional shims, washers, or height adjustments are required. Simply torque to specification and confirm seat seal with a pressure hold test.

Q2: Will a sluggish outlet valve trigger an injector balance code rather than a rail pressure code?

A: Yes. Intermittent valve sticking often causes cylinder‑to‑cylinder delivery variations as rail pressure oscillates. This can generate P0200–P0208 injector circuit codes even when injectors are healthy, because the ECU interprets pressure fluctuations as individual injector deviations. Always scope the rail pressure waveform before condemning injectors.

Q3: How do I distinguish genuine Bosch metallurgy from lower‑quality copies that look identical?

A: Authentic units display a dot‑peen date code and Bosch emblem on the hex flange. Counterfeits often omit the radial chamfer on the internal seat bore. We recommend weighing the valve; genuine units average 42.3g-aftermarket copies frequently undercut weight by 4–5g due to thinner sidewall construction, which accelerates seat deformation under thermal cycling.

Q4: Is the F00N201524 compatible with CP3 pumps used in off‑road marine applications?

A: Yes, provided the pump carries the same 5WS/6WS casting and uses identical thread geometry. However, marine engines with continuous high‑load operation may benefit from a valve spring upgrade-this unit remains stock spec and is best suited for standard highway or light industrial duty cycles.

Q5: Can aging outlet valve seals cause diluted engine oil without any visible external leak?

A: Absolutely. Internal leakage past the valve guide enters the pump's return fuel gallery and eventually flows back to the tank, but fuel can also bypass the plunger seals into the crankcase on pumps with worn rear shaft seals. A sudden increase in oil level with diesel odor often points to this combined leakage path-valve replacement plus a crankcase oil change breaks the cycle.

Q6: What is the typical service interval for this valve in a fleet duty cycle?

A: Industry field data suggests 180,000–220,000 miles on highway tractors, but refuse trucks and utility vehicles with frequent idle‑to‑WOT transients see effective life closer to 120,000 miles. We recommend lab‑testing removed valves for spring free‑length reduction beyond 1.5mm; beyond that point, replacement becomes more cost‑effective than chasing intermittent pressure faults.
