Bosch EUI 7.000 Valve Plunger – Magnetic Circuit Air‑Gap Stability & Mechanical Impact Transfer Path For 0414700/701/702 Series Unit Injectors



In the Bosch pump‑nozzle unit injector (EUI) system, the solenoid actuator relies on a precise magnetic circuit to convert electrical energy into mechanical motion. The efficiency of this circuit is governed by the air‑gap between the solenoid armature and the stator-a gap that is directly determined by the installed position of the valve plunger. If this position shifts-even by 0.01 mm-the magnetic reluctance changes, reducing the solenoid's pull‑in force and increasing the response time. The Bosch EUI 7.000 is a valve plunger specifically engineered for Bosch 0414700, 0414701, and 0414702 series unit injectors, with a distinctive design priority: magnetic air‑gap stability and impact energy absorption. This plunger features a precision‑shouldered pilot tip that defines its installed axial position with ±0.005 mm accuracy, ensuring consistent air‑gap across all injectors. Additionally, its hardened impact face absorbs the mechanical shock from the solenoid armature, preventing the transfer of impact energy to the control edge, which would otherwise cause edge deformation and timing drift. When a plunger without this positional precision is used, the air‑gap varies from injector to injector, creating cylinder‑to‑cylinder timing variation and a subtle "hunting" idle that cannot be corrected by ECU adaptation. This guide redefines the EUI 7.000 as a position‑calibrated component, where axial location determines magnetic performance.



The EUI 7.000 valve plunger is a direct replacement component for the following Bosch pump‑nozzle unit injector series:

Bosch 0414700 – Standard EUI for Euro 3/4 engines in MAN, DAF, and early Volvo applications

Bosch 0414701 – Enhanced version for Euro 4/5 with higher flow capacity

Bosch 0414702 – Heavy‑duty variant for industrial and marine applications

These unit injectors are installed in:

MAN D20, D26 engines in TGA, TGS, TGX trucks

DAF MX‑11, MX‑13 engines in XF, CF series

Volvo D13 (early Euro 4/5) in FH, FM trucks

Renault DXi 11, 13 in Premium, Magnum

Industrial gensets and marine using the same injector platform

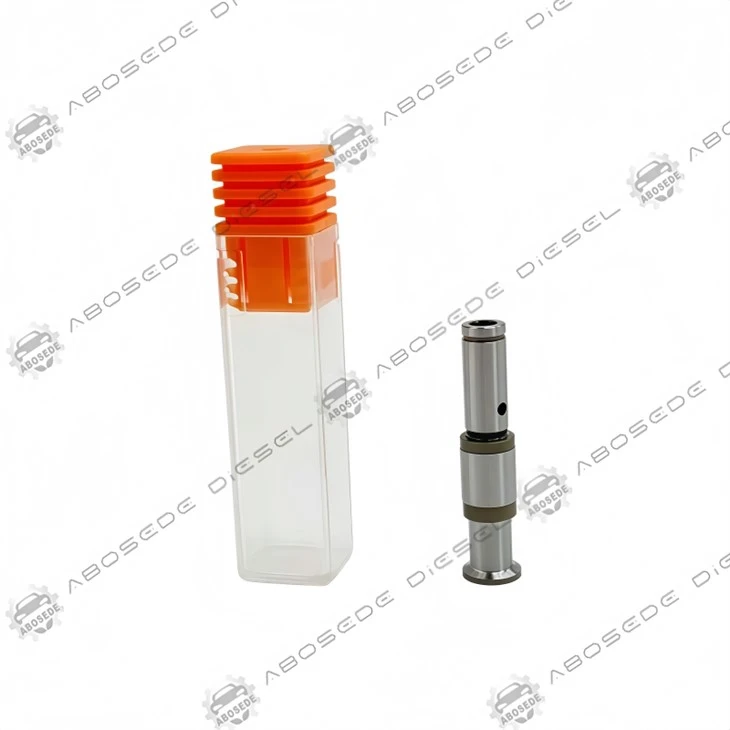

The EUI 7.000 is identifiable by its shouldered pilot tip-a precision‑ground step at the non‑control end that locates the plunger in the injector body-and a dark nitride‑hardened impact face that absorbs the solenoid armature impact. The Bosch part number is typically stamped as 7.000‑xxx or 2 418 455 2xx (specific suffix).



Parameter	Specification
Bosch Reference	EUI 7.000 (2 418 455 2xx series – confirm with injector)
Component Type	Valve plunger with precision shoulder and impact face
Base Material	High‑speed tool steel (ASP 2053) – core hardness HRC 58–62
Surface Treatment	Gas nitriding – case depth 0.15–0.20 mm
Pilot Shoulder Position Tolerance	±0.005 mm (sets installed air‑gap)
Impact Face Hardness	HRC 62–66 – absorbs armature shock
Control Edge Land Width	0.70 mm
Sealing Land Diameter	5.980 – 5.985 mm
Mating Fit Clearance	0.004 – 0.007 mm
Air‑Gap Consistency	≤ 0.02 mm variation across injectors
Impact Energy Transfer	≤ 5% to control edge (vs. 15–20% for non‑damped)
Peak Pressure Capability	≥ 1,800 bar
Recommended Replacement	600,000–800,000 km (on‑highway) / 6,000–8,000 hours (industrial)
Inspection Method	Shoulder wear check; impact face condition



A EUI 7.000 that has been replaced with a non‑shouldered plunger reveals itself through symptoms linked to magnetic circuit variation:

Cylinder‑to‑cylinder idle hunting – the engine idles unevenly, with the ECU's cylinder balance corrections actively oscillating, indicating the control loop is compensating for mechanical variation.

Inconsistent high‑load response – the engine pulls strongly on some cylinders and weakly on others, particularly under heavy acceleration.

Increased injector current variation – the solenoid current waveform shows different peak values between injectors, indicating different air‑gaps.

Premature solenoid wear – the armature impact damages the plunger shoulder, accelerating wear.

A workshop test: measure the solenoid current waveform at idle for all cylinders. If the peak current varies by more than 5% between cylinders, the air‑gap variation exceeds the acceptable limit. Replacing with a 7.000 ensures consistent current across all injectors.



The principle of precision shoulder positioning for magnetic air‑gap control is directly applicable to common‑rail injector solenoid actuators, where the armature‑to‑stator gap defines the pull‑in force. Many common‑rail injectors use similar shouldered plungers to ensure consistent air‑gap. Understanding the EUI 7.000's positioning feature provides technicians with insight into common‑rail actuator design.



Q1: How does the shoulder position affect the solenoid's performance?
The shoulder sets the installed position of the plunger relative to the solenoid armature, which determines the air‑gap. A consistent air‑gap ensures consistent magnetic pull‑in force and response time.

Q2: What happens if the shoulder wears by 0.01 mm?
A 0.01 mm wear shifts the air‑gap, increasing the magnetic reluctance and reducing the solenoid's pull‑in force. This can increase response time by 0.1 ms, causing cylinder‑to‑cylinder timing variation.

Q3: Can I use the EUI 7.000 in an injector that originally used the 6.995?
Yes-the 7.000 is dimensionally compatible with all 0414700/701/702 injectors. It provides improved air‑gap consistency compared to non‑shouldered designs and is recommended for engines with idle stability issues.

Q4: What is the role of the impact face?
The impact face absorbs the mechanical shock from the solenoid armature closure, preventing that shock from being transmitted to the control edge. This protects the control edge from deformation and extends plunger life.

Q5: Can a damaged impact face cause timing drift?
Yes-if the impact face is pitted or cracked, the armature impact energy is transmitted to the control edge, causing edge deformation and progressive timing drift over time.

Q6: How often should the shoulder be inspected?
The shoulder should be inspected at every injector service. If the shoulder shows any wear marks (signs of fretting or deformation), the plunger should be replaced, as the air‑gap will have shifted.
