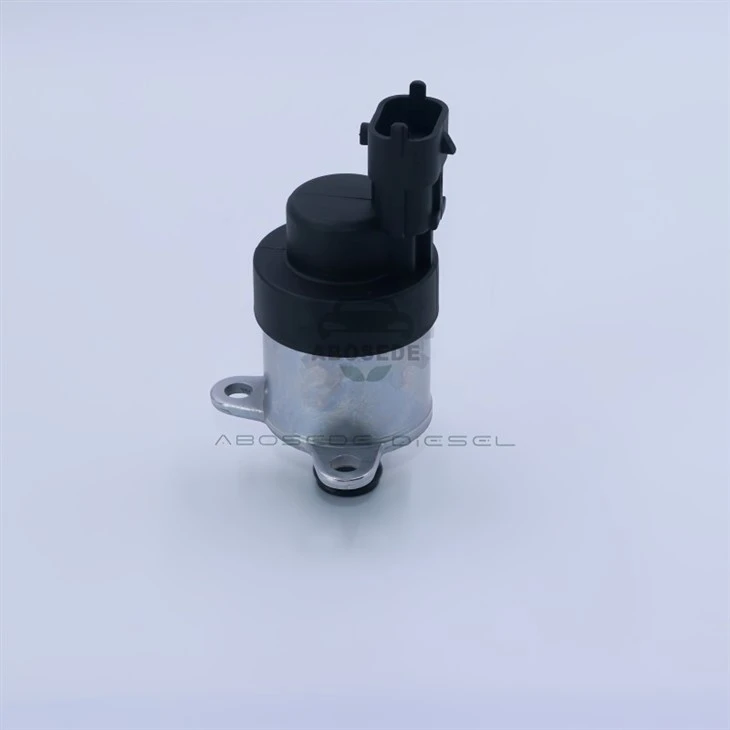

Bosch 0928400705 – The Metering Valve That Responds On Time, Every Time

In a common-rail diesel engine, timing is everything. The ECU calculates not only how much fuel to inject, but exactly when to start and end each injection event. That timing calculation assumes a known delay between the PWM command and the actual valve response – a delay that must be consistent for the injection timing to be accurate. The 0928400705 is engineered for a stable, repeatable response time, ensuring that the valve opens and closes within the same window on every cycle. This timing consistency is what allows the ECU to deliver the precise injection timing that modern diesel engines require for low emissions, quiet combustion, and peak fuel efficiency.

When the ECU sends a command to change the duty cycle, the valve does not respond instantly. There is a delay of approximately 10-18 milliseconds – the time required for the current to build, the magnetic force to overcome the spring, and the armature to move. This delay is known and compensated by the ECU – but only if it remains consistent. If the delay varies from one command to the next, the ECU's timing calculation becomes inaccurate, and the injection event occurs at the wrong point in the engine cycle. This is not a fault that triggers a code; it manifests as increased combustion noise, slightly higher fuel consumption, and elevated particulate emissions that may only be detected during an emissions test. The 0928400705 is manufactured with a response time tolerance of ± 1.5 milliseconds – a level of consistency that ensures the ECU's timing calculation remains accurate across the valve's service life.

Response time is determined by three factors: the electrical time constant of the coil (inductance divided by resistance), the mechanical inertia of the armature, and the spring pre-load. All three are carefully balanced during manufacturing. Over time, two changes can occur: the spring loses tension, reducing the closing force and increasing the opening delay; and the armature guide may develop wear that increases friction, slowing the armature movement in both directions. The genuine 0928400705 uses a spring that is pre-stabilised during manufacture, and the armature guide is coated with a low-friction layer that maintains its properties over the valve's service life. The coil is wound with a controlled inductance that remains stable as the temperature changes, ensuring that the electrical time constant does not shift significantly from cold to hot operation.

The most common symptom of response time drift is not a fault code but a change in engine behaviour that is subtle and difficult to diagnose. The engine may sound louder at idle, with a noticeable diesel knock that was not present before. Under acceleration, the engine may feel slightly less responsive, with a delay between pressing the pedal and feeling the power. These symptoms are often misdiagnosed as injector wear or fuel quality issues. The genuine 0928400705 resists response time drift through the combination of the pre-stabilised spring and the low-friction armature coating. The spring is designed to maintain its tension through millions of cycles, and the coating reduces the friction that would otherwise increase over time. Both features work together to keep the response time within specification for the full service life of the valve.

The installation procedure for the 0705 is similar to other CP4 valves – clean the mounting face, replace the O-ring and backup ring, torque the retaining nut to 22 Nm ± 2 Nm. However, there is one critical step: do not apply any grease or lubricant other than clean diesel to the O-ring. Many technicians use assembly grease to make the O-ring installation easier – but grease can enter the armature guide through the inlet port, adding viscous resistance that slows the armature and changes the response time. If you feel you must lubricate the seal, use a small amount of clean diesel only, and wipe away any excess. This simple precaution ensures that the valve's response time is not degraded by contaminants introduced during installation.

Q1: How can I tell if my valve's response time has drifted without lab equipment?
→ Listen carefully to the engine at idle. If you hear a diesel knock that is more pronounced than usual, and the injection quantity shows normal, the metering valve's response time may be changing. You can also use a diagnostic tool to observe the "injection timing deviation" – if it is consistently positive or negative, the valve response is likely a contributing factor.

Q2: Can I test the response time of a new aftermarket valve before installation?
→ Not in a workshop environment. Response time measurement requires a specialised solenoid test bench that can apply a PWM signal and measure the armature movement. Without this equipment, the only reliable approach is to purchase a genuine Bosch valve with factory-verified response time.

Q3: Why does my engine knock more loudly on a hot day than on a cold day?
→ This may indicate that the response time is shifting with temperature. In a healthy 0705, the response time variation across temperature is minimal. If it is noticeable, the valve's internal compensation has likely degraded – replacement is recommended.

Q4: Can I use the 0928400705 on a CP3 pump?
→ No. The 0705 is calibrated for CP4.1/CP1H pump dynamics and response time requirements. CP3 pumps have different inlet pressures and plunger configurations – the response time calibration will not match, resulting in incorrect injection timing.

Q5: What is the typical response time variation in a high-mileage valve, and when should I replace it?
→ In a valve approaching 200,000 km, the response time may vary by up to 4 ms in either direction, which is beyond the ECU's compensation range. We recommend replacement at 200,000 km for highway vehicles and 150,000 km for stop-start city driving.

Q6: I replaced the valve but the engine still sounds louder at idle – what else could it be?
→ Check the injector balance rates and the cylinder compression. The valve controls the overall fuel supply, but individual injector imbalances or uneven compression can also produce combustion noise. If the injectors are within specification, the valve's timing may be correct and the noise may be from another source.
