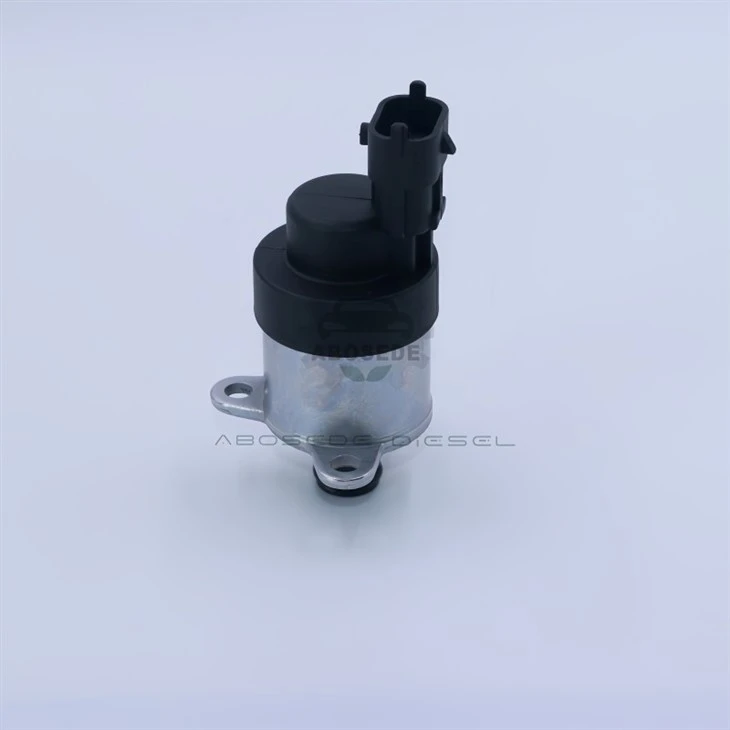

Bosch 0928400714 – The Metering Valve That Maintains Precision When Voltage Drops

Every metering valve is an electromechanical device, and its performance depends not only on the PWM duty cycle but also on the actual voltage available at the coil terminals. During engine cranking, when the starter motor draws hundreds of amperes, the system voltage can dip to 10 V or even lower – and that drop directly reduces the solenoid's magnetic force. If the valve requires a certain minimum current to overcome the spring pre‑load, a voltage dip can delay the armature movement, resulting in a slower pressure build‑up and extended cranking time. The 0928400714 is engineered with a magnetic circuit that maintains sufficient armature force even at reduced voltage, ensuring that cold starts remain crisp and consistent regardless of battery condition. This low‑voltage resilience is a design feature that is rarely discussed but has a direct impact on driver experience and starter motor life.

The force generated by a solenoid is proportional to the square of the current, and the current is determined by the applied voltage divided by the coil resistance – but only after the inductance has stabilised. During the initial milliseconds of a PWM pulse, the current rises exponentially, and the armature does not begin to move until the magnetic force exceeds the spring force plus the hydraulic force acting on the valve face. If the supply voltage is low, this rise time is longer, delaying the opening and closing events. The 0928400714 uses a coil winding with slightly lower inductance than previous variants, allowing the current to reach the pull‑in threshold faster under low‑voltage conditions. At the same time, the armature is designed with a reduced mass, lowering the inertia that the magnetic force must overcome. The result is an opening delay of ≤ 14 ms at 10.5 V – within 2 ms of the performance at nominal 12 V – ensuring that the rail pressure target is reached within the first two compression strokes, even on a cold morning with a battery that is not at full charge.

At higher duty cycles (above 70 %), the valve armature is near its fully closed position, and the magnetic circuit enters saturation – meaning further increases in current produce diminishing returns in terms of armature force. This saturation point is a critical design parameter because it determines how effectively the valve can choke flow at high rail pressures. The 0928400714 is calibrated so that saturation begins at a current level that corresponds to approximately 75 % duty cycle at nominal voltage. At 10.5 V, this saturation threshold shifts slightly higher, but the valve's magnetic circuit is designed with a 15 % margin, ensuring that the flow‑to‑duty mapping remains within the ECU's correction range even under sustained low‑voltage operation. This margin protects the system against unexpected voltage drops caused by ageing alternators or additional electrical loads such as heated mirrors and cabin blowers.

The most common mode of failure in the 0714 family is not mechanical jamming but a gradual increase in coil resistance caused by thermal cycling and vibration fatigue of the wire. As the resistance rises, the current at a given voltage decreases, shifting the flow curve and reducing the magnetic force margin. The genuine 0928400714 uses a high‑purity copper winding with an advanced polyimide insulation that resists crack propagation under thermal shock, maintaining the original resistance value within ±3 % over 200,000 km. The terminal pins are also gold‑plated to prevent oxidation, a frequent source of intermittent resistance drift in CP4.1 pump environments where under‑bonnet moisture is common. These two features – stable resistance and corrosion‑proof terminals – directly protect the low‑voltage performance that is the valve's signature advantage.

Fitting the valve is a straightforward task – replace the O‑ring and backup ring, clean the mounting face, and torque the retaining nut to 22 Nm ± 2 Nm. However, there is a step that is almost always overlooked: checking and logging the system voltage during cranking before and after installation. The ECU learns the valve's response characteristics during the first few start cycles, and if the cranking voltage is significantly different from the voltage used during the original adaptation, the stored learning may be suboptimal. After installing the 0928400714, perform a full adaptation reset using your diagnostic tool (Ford IDS, JLR SDD, or Delphi), and then monitor the cranking voltage to ensure it stays above 10.5 V – if not, the battery or starter may need attention before the valve's low‑voltage benefits can be fully realised.

Q1: How can I tell if my current valve's low‑voltage performance is degraded without a lab test?
→ Compare the cranking time on a cold start (after overnight soak) with the time recorded when the vehicle was new. If the engine now takes more than 2.5 seconds to fire when battery voltage is above 11.5 V, the valve's magnetic force margin may have diminished – often due to coil resistance drift.

Q2: Can I install the 0928400714 on a CP3 pump that originally used a different valve?
→ No. The 0714 is calibrated for CP1H and CP4.1 hydraulic ports. CP3 pumps have a different inlet geometry and flow gain. Installing this valve on a CP3 will result in incorrect pressure control and likely set a P0090 code.

Q3: Why does the valve draw more current than the old one? Does that harm the ECU driver?
→ The 2.45 Ω coil draws approximately 4.9 A at 12 V, which is within the ECU's driver capability (typically rated for 5 A continuous). The slight increase is intentional to improve low‑voltage pull‑in force. The ECU driver is protected against overcurrent – the valve will not damage it.

Q4: What is the most effective way to prevent premature valve failure in a CP4.1 pump?
→ Change the fuel filter at no more than 20,000 km intervals and use a high‑quality diesel with good lubricity. The CP4.1 pump is more sensitive to fuel contamination than CP3 designs – clean fuel directly translates to longer valve life.

Q5: I replaced the valve, but the engine still cranks slowly – is the valve at fault?
→ Unlikely. The valve does not affect starter motor speed. If cranking speed is slow, check the battery state of charge, starter motor condition, and battery cable connections. The valve's role begins after the engine reaches 150 rpm – slow cranking is a separate electrical issue.

Q6: Does the 0928400714 come with a new mounting nut and washers?
→ The valve is supplied with new O‑ring and backup ring seals, but the retaining nut is typically not included – it is reused from the original pump. Ensure the nut threads are clean and apply a drop of medium‑strength threadlocker to prevent loosening from pump vibration.
