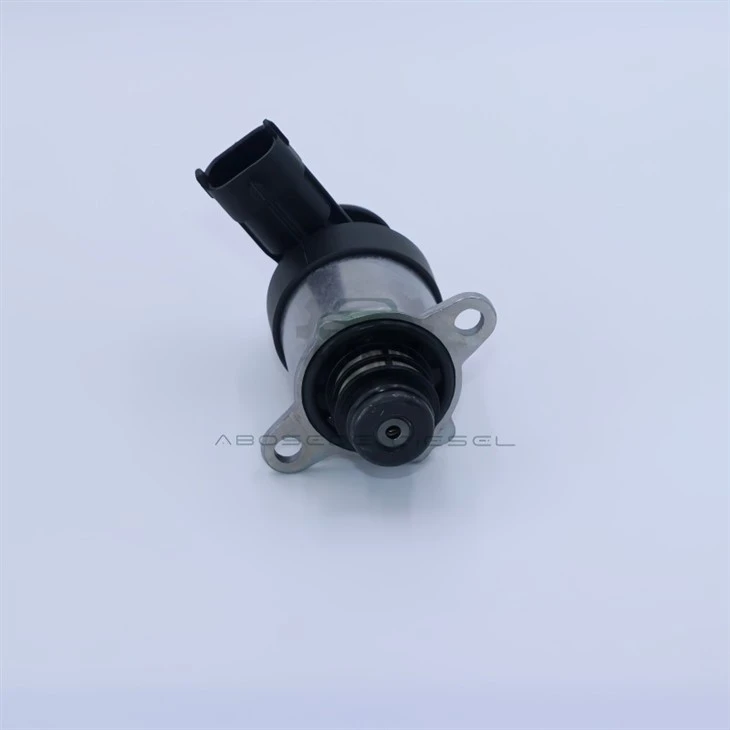

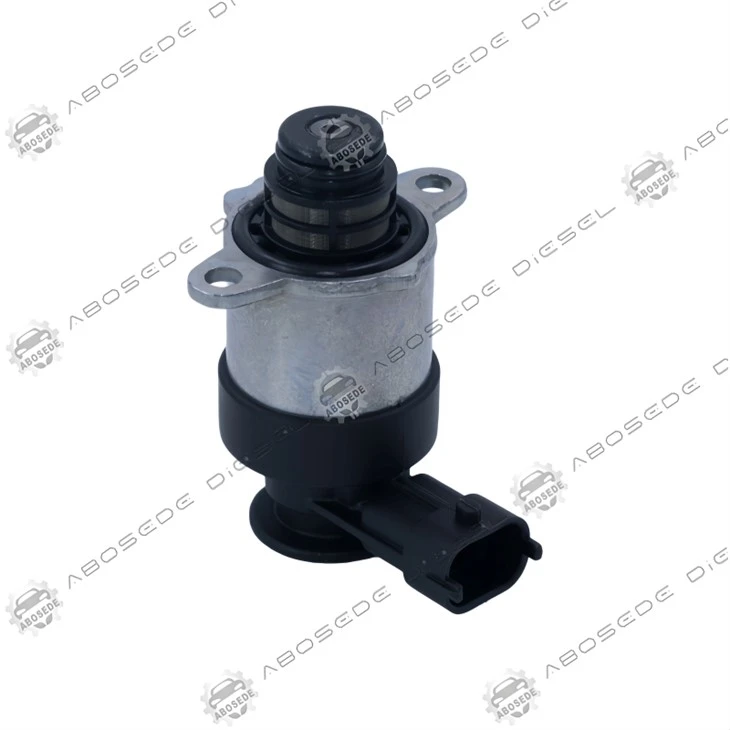

Bosch 0928400687 – The Metering Valve That Keeps Its Flow Curve Linear From Idle To Full Load

A metering valve's flow curve is rarely a straight line – but the ECU expects it to be as close to linear as possible. At low duty cycles, the armature is near the fully open position, where small changes in current produce relatively large changes in flow. At high duty cycles, the armature is near the fully closed position, where the same current change produces a much smaller flow change. This non‑linearity is a physical fact, but its degree varies significantly between valve designs. The 0928400687 is calibrated to minimise this non‑linearity, delivering a flow curve that is as close to a straight line as the physics of a solenoid valve allows. This linearity simplifies the ECU's fuel calculation, reduces the need for complex compensation tables, and ensures that the fuel delivery is consistent regardless of whether the engine is idling or pulling a heavy load.

When the ECU calculates the fuel quantity for a given operating condition, it looks up a value in a table that maps duty cycle to expected flow. If the valve's actual flow curve deviates from the table's assumption, the ECU's calculation is wrong – and it must rely on the feedback from the rail pressure sensor to correct the error. This feedback loop works, but it is slower than the feedforward calculation, and it introduces a delay that can affect transient response. The more non‑linear the valve's flow curve, the larger the error and the more the ECU must rely on feedback rather than feedforward. The 0928400687 is designed to have a flow curve that deviates from linearity by less than 3 % across the 20‑80 % duty range – a level that allows the ECU to use feedforward calculations with confidence, resulting in sharper transient response and more stable pressure control.

The linearity of a metering valve is primarily determined by the shape of the valve seat – the area where the armature closes against the orifice. A sharp‑edged seat produces a highly non‑linear flow curve, where small movements near the closed position produce large flow changes. A radiused or contoured seat produces a more linear characteristic by changing the flow coefficient as the armature moves. The 0928400687 uses a multi‑radius seat profile that has been optimised to produce a flow curve that is linear within 3 % across the operating range. This profile is the result of extensive flow testing during development, and it is manufactured to tight tolerances using precision grinding. The seat is made from a hardened stainless steel that resists wear, preserving the linearity through the valve's service life.

The valve seat is subject to wear from the repeated impact of the armature and from abrasive particles in the fuel. As the seat wears, the radius profile changes, and the flow curve becomes more non‑linear. This is a gradual process – the valve may work for many thousands of kilometres before the change is noticeable. However, the effect is progressive: the ECU's fuel trim will increase to compensate, and eventually the deviation will exceed the ECU's correction range. The genuine 0928400687 uses a hardened seat material that is approximately 30 % more wear‑resistant than standard steel, and the seat is ground to a surface finish of Ra 0.2 µm – a level of smoothness that reduces particle adhesion and minimises abrasive wear. These two features together extend the valve's linearity performance to over 200,000 km of normal service.

Installing the 0687 is similar to other CP4 valves – clean the mounting surface, replace the O‑ring and backup ring, torque the retaining nut to 23 Nm ± 2 Nm. However, there is a specific procedure that is important for preserving flow linearity: perform the adaptation reset with the engine at operating temperature and at idle, not at elevated rpm. The valve's flow curve is measured and learned by the ECU at the current operating point – if the learning is performed at a high rpm, the ECU's linearity compensation will be calibrated to a condition that is not representative of normal operation. The correct sequence is: start the engine, allow it to reach normal operating temperature, let it idle for two minutes, then perform the adaptation reset. This ensures that the ECU learns the valve's linearity at the condition where it is most critical – idle and light load.

Q1: How can I tell if my valve's flow linearity has degraded without a flow bench?
→ Monitor the "long‑term fuel trim" at idle and again at 2500 rpm under light load. If the trim values differ by more than 3 % between these two conditions, the valve's linearity has likely degraded – a healthy 0687 will show less than 1 % difference across the same load range.

Q2: Can the 0928400687 be used on a CP4.1 pump?
→ No. The 0687 is specifically calibrated for CP4.2 pump dynamics and flow linearity requirements. CP4.1 pumps have different port geometries – the valve seat profile will not produce the correct linearity characteristic on a CP4.1 pump.

Q3: Why does my engine hesitate slightly during steady cruising, but respond normally under hard acceleration?
→ This is a classic symptom of non‑linear flow. At steady cruising, the valve operates in the mid‑duty range where linearity errors are most noticeable. Under hard acceleration, the ECU uses richer mixtures and more aggressive corrections, which mask the problem. The 0687's linear flow curve eliminates this hesitation.

Q4: What is the most common cause of valve seat wear that affects linearity?
→ Abrasive particles in the fuel – primarily from dirty fuel filters or low‑quality diesel. The hardened seat in the 0687 resists this wear, but regular fuel filter changes (every 20,000 km) are essential to protect the seat and maintain linearity.

Q5: I replaced the valve but the fuel trim still varies with load – is the valve defective?
→ Possibly, but check the fuel pressure sensor first. If the rail pressure sensor is drifting, the ECU will receive incorrect feedback and adjust the trim incorrectly, making the valve appear non‑linear. Verify the sensor reading against a mechanical gauge before suspecting the valve.

Q6: Does the 0928400687 require a specific break‑in period after installation?
→ The valve does not require a break‑in period in the traditional sense, but the ECU's adaptation algorithm will improve the match between the valve and the fuel map over the first 100‑200 km. During this period, the trims will gradually reduce to near zero – this is normal and indicates the valve is performing as expected.
