0928400535 Bosch Fuel Metering Valve – Stop-Start System Readiness & Silent Restart For CP3/CP1H Pumps On Heavy-Duty Diesel Engines

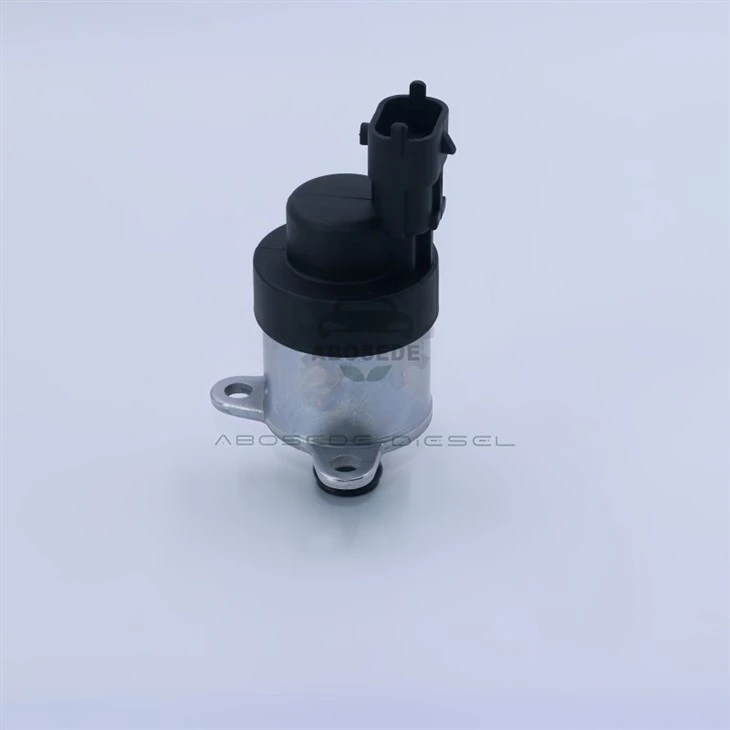

The 0928400535 is a Bosch inlet metering valve for CP3 and CP1H high-pressure common rail pumps. It is engineered for the demands of modern stop-start systems found on urban delivery trucks, city buses, and other heavy-duty vehicles that shut down the engine at traffic lights or during frequent stops. In such systems, the metering valve must perform hundreds of hot restarts every day - not just a handful of cold starts. Each restart demands instant fuel delivery so the engine fires quickly and quietly, without hesitation or vibration. The valve must also tolerate the intense wear of repeated cycling while maintaining precise metering accuracy. The 0928400535 is designed with a low-friction spool, a fast-response magnetic circuit, and a return spring that cushions the spool's motion to reduce hydraulic noise during opening. Together these features deliver rapid rail pressure build-up, low restart vibration, and long-term durability in stop-start duty cycles. This valve fits heavy-duty diesel engines using Bosch CP3 or CP1H high-pressure pumps.

In a stop-start system, the engine computer tracks the driver's brake pedal and accelerator inputs. When the driver releases the brake and presses the accelerator, the engine must restart and deliver torque within a fraction of a second. Any delay feels like a stumble. The metering valve is a critical link in this chain. As soon as the starter motor begins turning the engine, the valve must move from its closed position to a precise opening that enables the high-pressure pump to build rail pressure quickly. A sluggish valve adds precious milliseconds to the restart sequence, causing the engine to crank longer and delaying vehicle movement. The 0928400535 uses a high-permeability magnetic stator core and a lightweight DLC-coated spool to achieve full opening in under 30 milliseconds after the engine computer energizes the solenoid. This speed allows the CP3 pump to deliver usable rail pressure - typically 250–350 bar - within the first engine revolution, enabling injection and ignition with minimal cranking. The result is a near-instant restart that drivers and passengers barely notice.

A metering valve that snaps open instantly can generate a pressure pulse in the fuel system - a high-frequency "click" or "chirp" that radiates through the pump and fuel lines into the cabin. In a vehicle that restarts dozens of times per hour, this noise quickly becomes a nuisance. The 0928400535 incorporates a hydraulic damping chamber at the tail of the spool. When the solenoid pulls the spool open, the damping chamber fills with fuel through a small calibrated orifice. This slows the final portion of the spool's travel just enough to eliminate the sharp pressure spike that causes noise, without compromising overall opening speed. The spool still reaches its target position within the required response window, but the motion is cushioned, reducing hydraulic hammer and the resulting vibration. The same damping action also helps the spool return smoothly to its seat when the engine shuts down, preventing the metallic "thump" that can occur with undamped valves. For fleet operators, this translates to a quieter cab environment and fewer driver complaints about restart noise.

A conventional metering valve might see 10–20 engine start cycles per day on a long-haul truck. A vehicle with an active stop-start system can see 200–300 cycles daily. Over 200,000 kilometers of urban operation, the valve could accumulate more than a million open-close cycles. This extreme cycling places exceptional demands on the return spring and the spool-to-bore interface. The 0928400535 uses a chrome-silicon-vanadium return spring that has been hot-set and stress-relieved to retain over 98% of its initial preload after one million cycles. The spool's DLC coating, with its extremely low friction coefficient, minimizes wear on the bore even during the dry-start conditions that occur when the engine has been off for only a few seconds and the oil film has not yet drained. The valve's electrical connector is sealed against moisture ingress caused by repeated thermal cycling, which can draw damp air into connectors as the engine bay cools after each stop. These durability features ensure that the 0928400535 maintains its fast response and precise metering even after years of punishing urban stop-start service.

The health of the metering valve in a stop-start system can be assessed through simple diagnostic observations. First, monitor the rail pressure build-up time during a hot restart. With the engine warm, shut it down, wait for the stop-start system to activate a restart, and log rail pressure with a diagnostic scan tool. A healthy 0928400535 will show rail pressure crossing 250 bar within 1–1.5 seconds. If the build-up time extends beyond 2 seconds, the valve's response may be slowing. Second, listen for unusual noise during restart - a sharp metallic click or a buzzing sound from the fuel pump area may indicate spool oscillation caused by worn damping or a fatigued spring. Third, check the valve's hot idle duty cycle. Even under stop-start conditions, it should remain within the 18–25% range. A gradual upward trend signals internal wear. These checks can be incorporated into routine maintenance, allowing fleets to replace the valve before it causes a noticeable delay or driver complaint.

Q1: My stop-start truck sometimes hesitates before moving when the light turns green. The engine starts, but there's a delay before power comes. Could the metering valve be the cause?

Yes. If the metering valve is slow to open during a hot restart, rail pressure builds more slowly and the injectors cannot deliver fuel quickly enough. The 0928400535 is designed to open in under 30 milliseconds, providing fast pressure build-up and immediate engine response.

Q2: Will the 0928400535 wear out faster because my truck has stop-start?

The valve is specifically built for high-cycle operation. Its DLC-coated spool and stress-relieved return spring are designed to handle over a million cycles. Under normal operating conditions, it should deliver a service life comparable to a conventional valve in a non-stop-start application.

Q3: My truck makes a clicking sound from the engine bay every time it restarts. Is that normal?

A quiet click from the metering valve at restart is normal - it is the sound of the spool opening. A loud or metallic click that changes in intensity over time may indicate a worn damping chamber or spring. The 0928400535's hydraulic damping cushions the spool motion to reduce this noise.

Q4: Does the 0928400535 require a different ECM calibration for stop-start operation?

No. The valve is mechanically calibrated and requires no special ECM programming. The standard fuel trim reset after installation is all that is needed. The engine computer's existing stop-start strategy will work with the valve's fast response.

Q5: How can I tell if a slow restart is caused by the metering valve or a weak battery?

Monitor battery voltage during the restart. If voltage stays above 9.5V on a 12V system, the battery is adequate. Then check rail pressure rise time with a scan tool. A slow rise with adequate voltage points to the metering valve. If voltage drops below 9.5V, address the battery or charging system first.

Q6: Can the 0928400535 reduce fuel consumption in stop-start operation?

A properly functioning valve reduces the time the engine spends cranking, which saves a small amount of fuel per restart. More importantly, it ensures the engine restarts cleanly and runs efficiently immediately after restart, supporting the overall fuel-saving benefit of the stop-start system.
