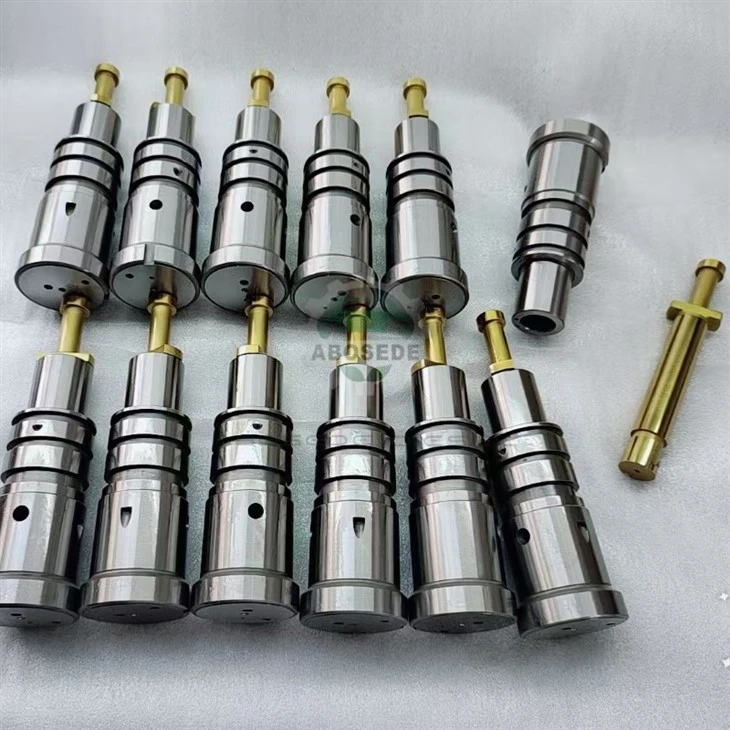

DK20 Plunger E206452120 | 31400010491 | Daihatsu 5DK20 6DK20 Fuel Injection Pump Plunger Assembly

The DK20 plunger assembly (part number E206452120, interchangeable with 31400010491) serves as the critical fuel injection pump component for Daihatsu 5DK20 and 6DK20 auxiliary diesel engines rated at 400 kW and 720 RPM. This plunger and barrel assembly functions within the high-pressure fuel system to deliver precisely metered fuel doses to the injection nozzle, directly influencing combustion quality, engine efficiency, and exhaust emissions in marine and industrial applications.

The DK20 plunger is manufactured from high-grade hardened steel with advanced surface treatment to withstand the extreme mechanical stresses of common rail and conventional high-pressure fuel injection systems. Operating under microscopic tolerances between the plunger and barrel, this component must resist hydroabrasive wear caused by fuel-borne contaminants and maintain hydraulic sealing integrity across all load conditions. The assembly features a precision-ground surface finish that ensures uniform fuel delivery and stable rail pressure regulation, critical for meeting modern emission standards in marine auxiliary power generation.

This DK20 plunger assembly is engineered exclusively for Daihatsu DK20 series diesel engines, including 5DK20 and 6DK20 configurations used in auxiliary power generation, marine propulsion support, and industrial backup systems. The component directly replaces worn or damaged plungers in the fuel injection pump assembly designated under drawing chapter 3 item 23.2, serving as the OEM-equivalent solution for maintenance and overhaul operations. Typical installation environments include vessel engine rooms, power plants, and remote industrial facilities where diesel generator reliability is paramount. The E206452120 plunger is also cross-referenced with E206455040 and 31400010491 inventory codes, facilitating procurement for parts distributors serving marine and heavy-duty diesel markets.

Successful installation of the DK20 plunger demands meticulous attention to cleanliness and component pairing throughout the assembly process. The plunger and barrel constitute a matched set; interchanging components between different pump units is strictly prohibited, as even minor dimensional variations will compromise fuel delivery precision and hydraulic sealing. Prior to installation, coat the plunger with clean diesel fuel and verify smooth reciprocation within the barrel - any binding or sluggish return indicates contamination or distortion requiring investigation. The fuel rack must be positioned at center (zero) before pump installation, and all high-pressure fuel lines should be torqued to specification following complete assembly. After installation, bleed the fuel system thoroughly to eliminate air pockets that could cause erratic engine operation or plunger seizure during initial startup.

For diesel repair shops and parts distributors, the DK20 plunger represents a strategic component for cost-effective pump restoration rather than complete unit replacement. When a common rail or conventional injection pump exhibits rail pressure instability, intermittent misfiring, or excessive fuel return, the plunger and barrel assembly is frequently the root failure point. Replacing only the worn plunger restores hydraulic efficiency and fuel metering accuracy at a fraction of new pump cost, making it an attractive option for fleet maintenance budgets. Hydroabrasive wear from contaminated fuel and corrosive pitting from water ingress remain the primary degradation mechanisms; fine filtration and fuel quality management significantly extend service life. Distributors stocking E206452120 and 31400010491 variants position themselves to serve the recurring maintenance needs of Daihatsu-powered vessel fleets and standby power installations worldwide.

Q1: How can I confirm the DK20 plunger is the actual fault before ordering?
A: Bench-test the injection pump for pressure drop and observe plunger return snap. Sluggish return or inability to hold rail pressure typically confirms plunger wear.

Q2: Is E206452120 compatible with both 5DK20 and 6DK20 engines?
A: Yes, the plunger assembly shares the same pump architecture across DK20 series variants, though always verify against the specific engine parts book.

Q3: What fuel quality factors most accelerate DK20 plunger wear?
A: Water content and sub-2-micron abrasive particles bypass standard filters and cause hydroabrasive scoring. Consistent fuel polishing extends plunger life significantly.

Q4: Does replacing only the plunger require recalibration of the injection pump?
A: Plunger replacement restores hydraulic characteristics to OEM specification, but delivery volume verification on a test bench is recommended for critical applications.

Q5: What warranty coverage applies to this DK20 plunger assembly?
A: Standard warranty covers manufacturing defects and dimensional non-conformance. Installation-related damage from contaminated fuel or improper handling is excluded.

Q6: How do I distinguish E206452120 from E206455040 in inventory systems?
A: E206452120 is the primary assembly number; E206455040 often appears as a specification list reference. Both point to the same plunger and barrel set.
