Stanadyne OEM Repair Kit 33702 – Genuine Seal & Gasket Set For Stanadyne Diesel Injection Pumps

A diesel pump fails from the outside in. Shaft seals harden, O-rings flatten, and gaskets lose compression long before the plungers or metering valve wear out. The Stanadyne 33702 OEM repair kit addresses the boundary between the pump and the atmosphere - the seals that keep fuel in, air out, and lubricity intact. In both mechanical distributor pumps and modern common rail high-pressure pumps, seal integrity determines whether the hydraulic section ever sees clean, air-free diesel.

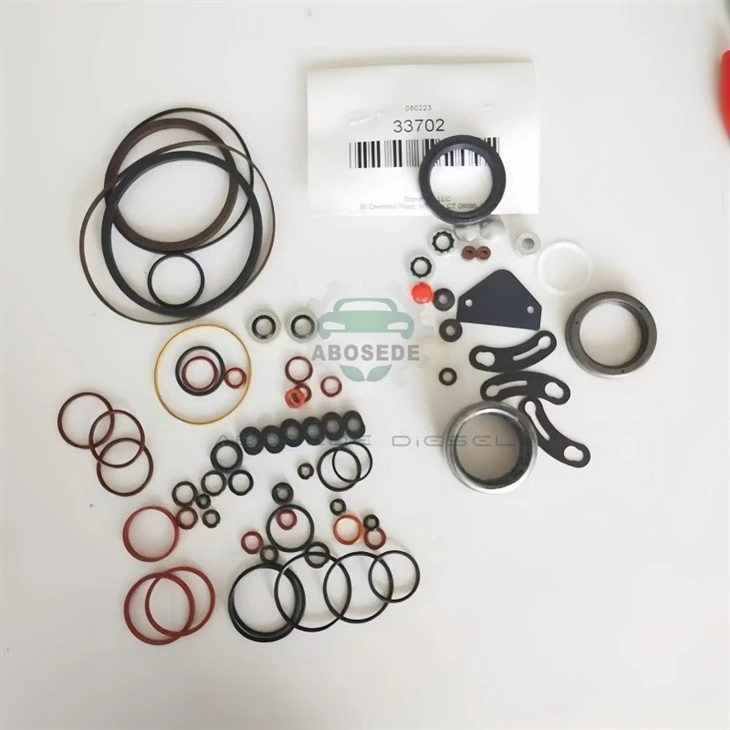

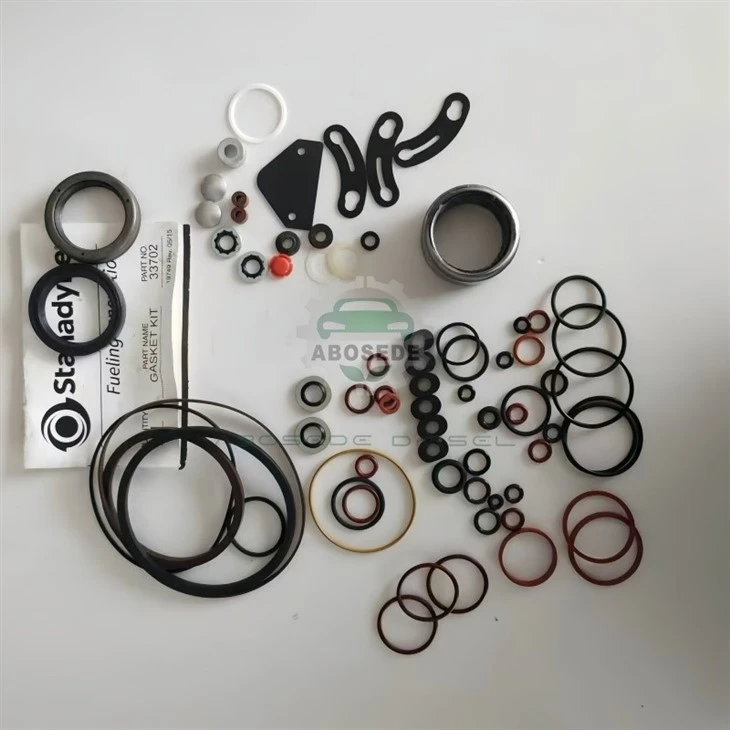

The Stanadyne 33702 is a genuine OEM seal and gasket set. It includes the drive shaft seal, governor shaft seal, throttle shaft seal, top cover gasket, hydraulic head O-rings, delivery valve copper washers, and various small seals specific to Stanadyne DB2 and DB4 distributor pumps. Each component is pre-formed, not cut from bulk sheet. Pre-forming prevents installation stretch and ensures the correct compression ratio at the sealing surface. The kit does not include hard parts such as plungers, delivery valves, or governor springs. Those must be inspected separately.

Seals in the 33702 kit are made from fuel-resistant elastomers: fluoroelastomer (FKM) for high-temperature zones and nitrile (NBR) for lower-temperature static seals. Operating temperature range: -40°C to +150°C for FKM; -30°C to +100°C for NBR. Hardness: 70–80 Shore A. Compression set: less than 20% after 70 hours at 100°C. These materials resist diesel, biodiesel up to B20, and cold-flow additives. However, high-sulfur fuel and water contamination accelerate seal aging. Always replace every seal in the kit, even if only one is visibly leaking. Seal failure is rarely isolated.

Common rail high-pressure pumps operate at 1,800–2,500 bar, but they still rely on low-pressure seals at the drive shaft, inlet metering valve, and pressure control valve. A hardened shaft seal allows air to enter the low-pressure circuit, which causes cavitation in the high-pressure pump and unstable rail pressure. The same principle applies to the Stanadyne 33702: air ingress through a worn throttle shaft seal changes the governor's hydraulic response. In both systems, a cheap seal failure can destroy an expensive hydraulic component. This is why OEM seal kits are not a commodity - they are a precision wear item.

Cleanliness is non-negotiable. Wash the pump exterior before disassembly. Remove all old gasket material with a plastic scraper, not a wire brush. Inspect sealing surfaces for scratches and corrosion. Lubricate new O-rings with clean diesel or petroleum jelly before installation. Do not use engine oil or grease. Torque cover screws in a cross pattern to the OEM specification. Over-torquing cuts the gasket; under-torquing allows extrusion. After assembly, pressurize the low-pressure side to 3–5 bar and check for leaks before mounting the pump.

Q1: Is Stanadyne 33702 a complete rebuild kit?
A: No. It is a seal and gasket kit. Hard parts such as plungers, delivery valves, and governor springs are not included and must be inspected separately.

Q2: Can I use 33702 on a common rail pump?
A: No. It is designed for Stanadyne DB2 and DB4 mechanical distributor pumps. Common rail pumps use different seal geometries and materials.

Q3: How do I know if my pump needs a seal kit?
A: Look for external diesel leakage, air bubbles in the return line, hard starting after sitting, and unstable governor response. Any of these indicate air ingress.

Q4: Can I reuse the copper washers in the kit?
A: No. Copper washers work-harden and lose sealing ability after one torque cycle. Always use new washers.

Q5: What fuel blends are compatible with the 33702 seals?
A: Diesel and biodiesel up to B20. Higher blends may cause seal swelling. Check with Stanadyne for B100 compatibility.

Q6: Does the kit include installation instructions?
A: Genuine Stanadyne kits include a diagram and torque sequence. If missing, consult the pump service manual. Do not guess torque values.
