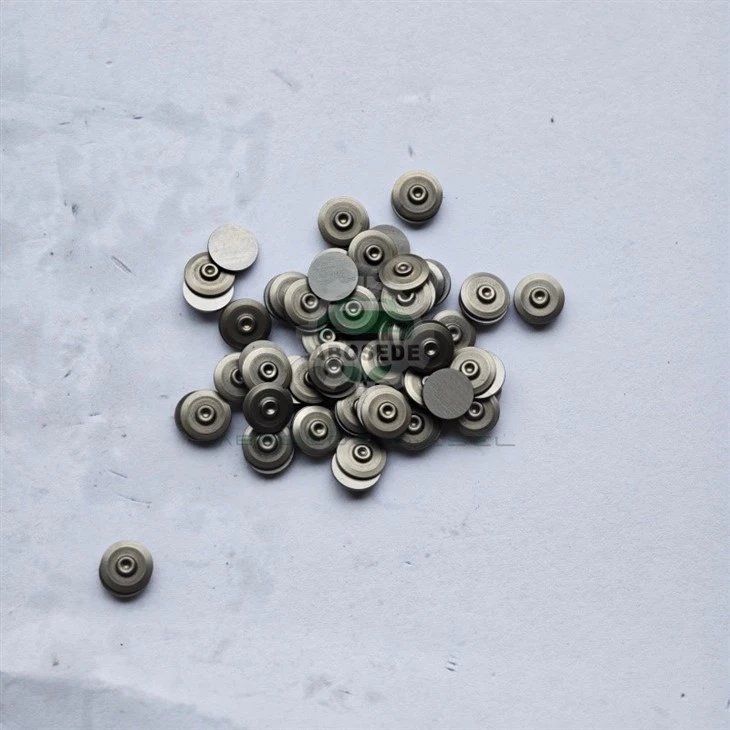

2057401 Spring Seat — Load Distribution Geometry in Common Rail Injector Control Valves

Injector repair discussions tend to revolve around nozzles, balls, and seats. The 2057401 spring seat sits in that same control valve stack, yet it rarely gets its own specification sheet. That is a mistake. This small hardened component sets the installed length of the control valve spring, which directly defines the preload force acting on the ball. Change the seat height by a few hundredths of a millimeter, and you change the cracking pressure of the control valve - and therefore the injector's hydraulic response curve.

In other words: the 2057401 spring seat is a calibration element disguised as a mechanical stop.

The height tolerance is the number that matters. Spring force scales linearly with compression; a 0.02 mm stack-up error translates into a measurable shift in valve opening behavior over millions of cycles.

A typical common rail control valve assembly stacks in this order:

🔹 Solenoid / piezo actuator
🔹 Armature or piezo stack
🔹 Control valve spring
🔹 2057401 spring seat
🔹 Valve ball
🔹 Ball seat (sealing interface)
🔹 Injector body bore

The spring seat is the reference plane that the spring pushes against. If it is not perfectly flat, the spring tilts, side-loads the ball, and creates uneven wear on the ball seat below it. This is one of the hidden causes of "mystery" leakage that survives a ball-and-seat replacement.

The seat does not slide or seal - it just sits there under load. That sounds simple, but it still wears. The spring end coil rotates slightly with every actuation cycle, creating a micro-fretting action against the seat face. Through-hardened steel at HRC 55–60 resists this far better than case-hardened alternatives, where the hardened layer can be breached by fretting and expose a soft core.

Surface flatness is equally important. A seat with a crowned face concentrates spring load at one point, which accelerates fretting and gradually changes the effective installed length.

The cost difference is small. The calibration difference is not.

1. Is the 2057401 spring seat reusable after an injector rebuild?
Only if the contact face is still flat and shows no fretting marks. Once the surface is disturbed, preload is no longer predictable.

2. Can I shim this seat to adjust preload?
Shimming changes installed length, but it also changes stack height. If the injector has a fixed armature gap, shimming will move that gap and cause other problems.

3. Does spring seat height differ between solenoid and piezo injectors?
Yes. Piezo stacks have different compliance characteristics, so the required preload and seat height are usually different even when the part number family looks similar.

4. What symptom points to a worn spring seat?
Gradual drift in pilot injection quantity that cannot be corrected by nozzle replacement or coding alone.

5. Is there a torque specification for the spring seat?
No - it is not a threaded component. It is retained by the injector's internal assembly. Correct installation depends on cleanliness and correct stack order.

6. How does fuel quality affect spring seat life?
Indirectly. Contaminated fuel accelerates wear on the ball and seat below, which changes the load the spring seat sees. The seat itself is not fuel-wetted in most designs.
