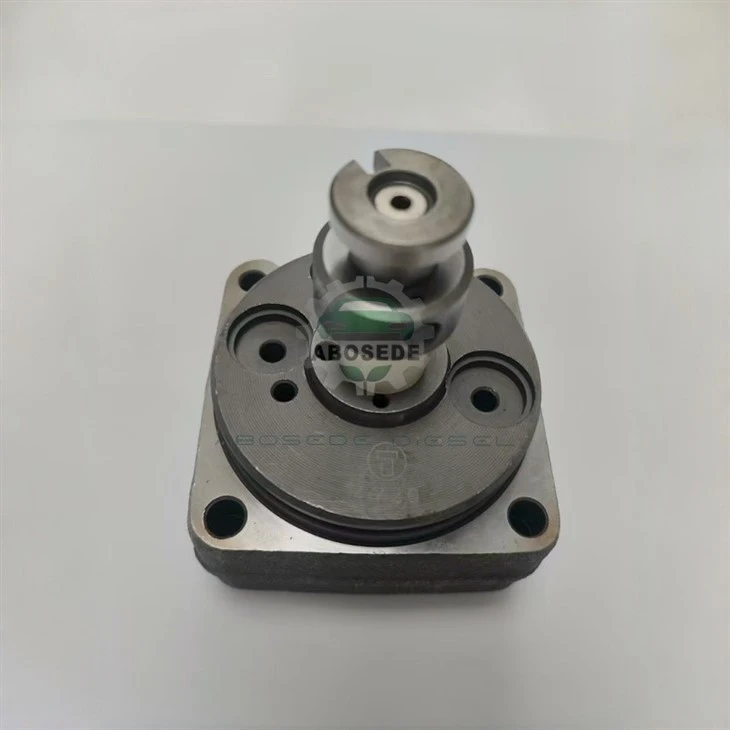

096400-1160 VE Pump Head — Fault Ownership: Deciding What The Head Is Actually Responsible For

Fuel-system comebacks often begin with a misassignment of blame. A hard start gets attributed to the hydraulic head, the head is replaced, and the symptom persists because the real owner was a tired transfer pump or an air leak at a filter housing. The 096400-1160 VE Pump Head is a precision assembly, but it is not responsible for every fuel-system symptom. This article builds a fault-ownership matrix: which complaints belong to the head, which belong elsewhere, and how bench evidence settles the dispute. The logic parallels common-rail fault isolation, where rail-pressure deviations are traced to a specific component before any part is condemned.

Family one - cold hard start with normal hot behaviour. Owners: glow system, compression, air ingress, transfer pump. The head is rarely the cause unless cold leakage is proven high. Family two - hot idle instability that clears above fast idle. Owners: rotor-to-bore leakage, delivery valve seating, seal hardening. This is genuine head territory. Family three - flat response under load with stable idle. Owners: delivery balance, restricted transfer passage, governor linkage. Head is a candidate, not a certainty. Family four - fuel in the sump or excessive return. Owners: injector nozzles, return circuit, lift pump. The head is almost never the owner here. Write the family first, then the candidate list. The 096400-1160 VE Pump Head earns replacement only when the family points to internal metering, not when the symptom is merely fuel-related.

When two technicians disagree about ownership, bench data ends the argument. Measure leakage at cold, at operating temperature, and after a hot soak. Measure delivery balance across all ports. Compare against the pump manufacturer's band. If hot leakage climbs while cold holds, the head owns the fault. If delivery balance is skewed at all temperatures, the head or the delivery valves own it. If both are inside band, the head is exonerated and the search moves upstream. This is the same arbitration role that injector correction data plays in common-rail diagnosis - the number decides, not the seniority of the technician.

Fitting a new 096400-1160 Distributor Head onto a pump with a restricted filter housing or a worn transfer pump produces a temporary improvement that fades within weeks. The new head restores metering, the underlying restriction re-contaminates or starves it, and the symptom returns. The customer concludes the part was poor quality; the workshop concludes the supplier is unreliable. Neither is correct. The system fault was never addressed. Before releasing the vehicle, confirm filter differential pressure, transfer pressure, and air-tightness of the suction side. These three checks cost minutes and prevent the most common misattribution in VE service.

A credible parts supplier states what the warranty covers and what it does not. A hydraulic head warranty typically covers manufacturing defects in material and workmanship, not damage from contaminated fuel, overheating, or incorrect installation torque. Write this into the job card at the point of sale, not after a dispute begins. In common-rail channels, warranty terms are tied to installation records and fuel-quality evidence; the same discipline belongs here. The 096400-1160 Hydraulic Head is a durable component, but it cannot survive a system that feeds it debris or runs it dry.

Q1 - How do I prove the head is at fault and not the injectors?
Run a delivery balance and leakage test. If both are in band, the head is exonerated and injector testing is the next step.

Q2 - Will a warranty claim be refused if I cannot show installation records?
Often yes. Suppliers need torque, seal, and fuel-quality evidence to distinguish a defect from an installation error.

Q3 - Can a restricted filter really imitate a failing head?
Yes. It starves the metering chamber and produces hard start and low power that look like internal leakage. Check differential pressure first.

Q4 - What is the single most useful bench number for ownership decisions?
Hot leakage. It separates thermal clearance growth from other causes more reliably than any single road-test observation.

Q5 - Should I replace delivery valves with the head?
Inspect them. If seating is worn or springs are tired, replace as a set. A new head with old delivery valves is an incomplete repair.

Q6 - How do I keep VE and common-rail diagnostics from contaminating each other?
Separate test fluids, separate receiving areas, and separate record logs. The isolation logic transfers; the hardware and fluids do not.
