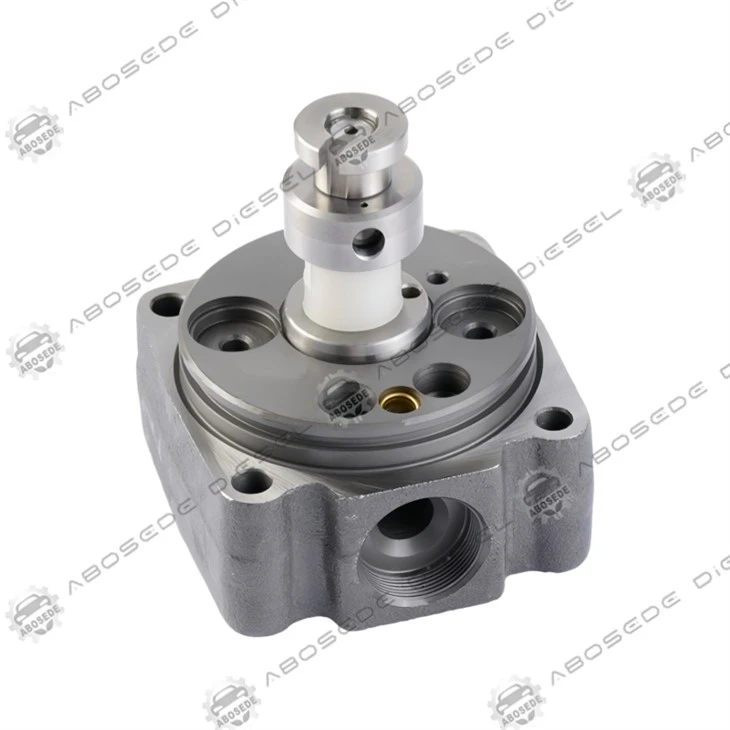

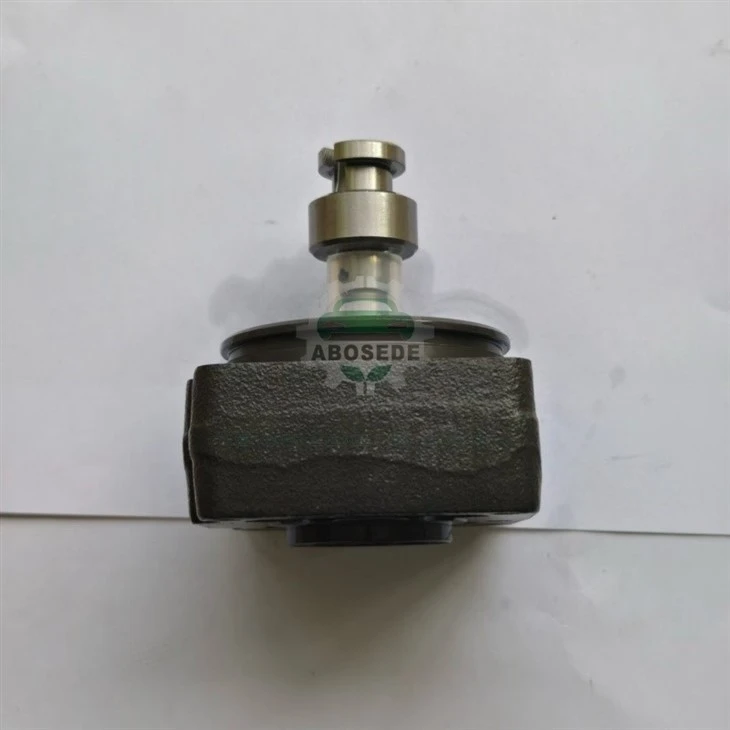

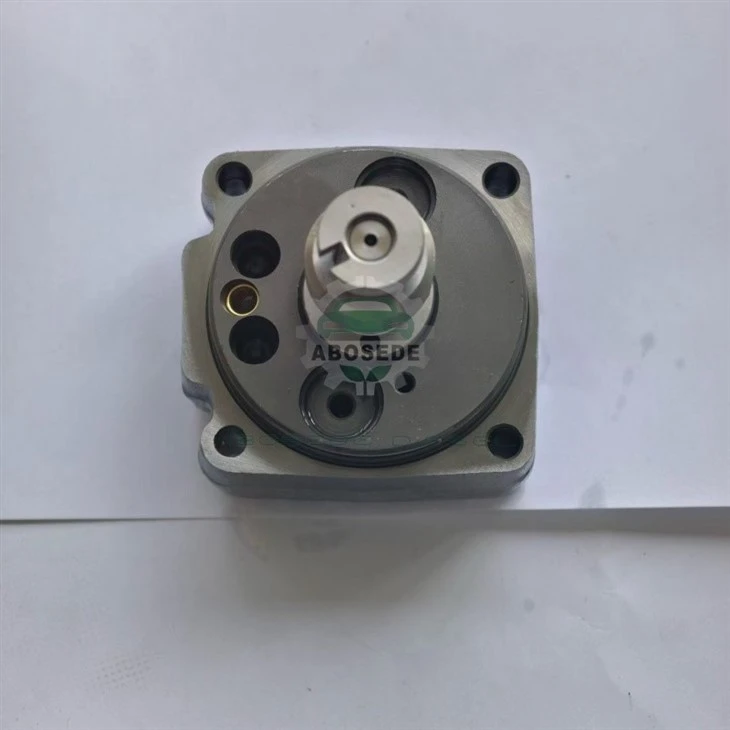

096400-0262 VE Pump Head For Komatsu 4D95L — The Metering Boundary That Defines Pump Behavior

Every VE pump has a metering boundary: the point where low-pressure fuel becomes timed, measured delivery. On the Komatsu 4D95L, that boundary lives inside the 096400-0262 VE Pump Head. Replace it with the wrong internal matching and the pump does not simply lose power - it changes personality: different hot idle, different load response, different cold-start demand. This guide frames the part as a boundary condition rather than a spare, and it borrows one habit from common-rail service: define the acceptable envelope first, then verify the hardware against it.

In a VE distributor pump, the hydraulic head houses the rotor and plunger pair that pressurize and distribute fuel to each cylinder. That makes it the governor of delivery timing and balance, not just a housing. A Komatsu 4D95L VE Pump Head with correct bore clearance and matched rotor restores the original envelope. One with mismatched internal geometry can still bolt on and run, but the envelope shifts. That is why fitment must be proven by pump plate, rotor code, and port orientation before the part is accepted.

Log the VE Pump Head 096400-0262 against a defined envelope: part number 096400-0262; VE distributor-type hydraulic head; engine coverage Komatsu 4D95L where this number is specified; four cylinders; diesel fuel; matched head body and rotor assembly; hardened alloy steel with precision-ground bore; QC points for dimensional check, hardness, surface finish, leakage, and flow-bench verification; fitment keys for pump plate, rotor code, port orientation, and engine code. This envelope is the reference against which the rebuilt pump is judged - not a marketplace description.

Before ordering a 096400-0262 Distributor Head, exclude the cheaper causes. Check filter restriction, transfer-pump pressure, air ingress, and injector balance. A hot-only surge with good cold start often points to internal leakage, but a restricted filter can imitate it. If exclusion tests pass and the fault follows the head, replacement is justified. This order protects the parts budget and prevents a good head from being blamed for a fuel-supply problem.

Mixed fleets put Komatsu 4D95L machines beside common-rail equipment. Keep two disciplines separate: common-rail tooling and flushing fluid must not migrate into VE work, and VE bench records must not be mixed with injector correction data. Share only the cleanliness standard. This separation keeps the Komatsu 4D95L Hydraulic Head evaluation valid and prevents cross-contamination from hiding a genuine VE fault.

Q1 - Does 096400-0262 have cross-reference numbers I should check?
Yes, but cross-references must be verified against the pump plate and rotor code, not accepted from a listing. Ask the supplier to confirm the reference against your machine serial before ordering.

Q2 - Can a worn VE head be rebuilt instead of replaced?
Sometimes, if bore and rotor are within tolerance. If scoring or clearance growth is beyond spec, replacement is the safer path. Bench data decides.

Q3 - How should the head be stored before installation?
Keep it sealed, rust-protected, and away from humid air. Fit seals only at assembly time; pre-fitted seals can harden in storage.

Q4 - What is the fastest post-install verification?
A cold start check followed by a hot idle and delivery balance test. If hot results drift while cold results are stable, suspect leakage or rotor matching.

Q5 - What equipment does a common-rail shop need for VE head testing?
A VE-capable flow bench, rotor orientation tooling, and clean filtered test diesel. Common-rail test stands alone are not sufficient.

Q6 - Why does the same part number behave differently on two 4D95L machines?
Machine hours, fuel quality, filter history, and injector condition all shift the envelope. The head restores the boundary; the rest of the system still has to be healthy.
