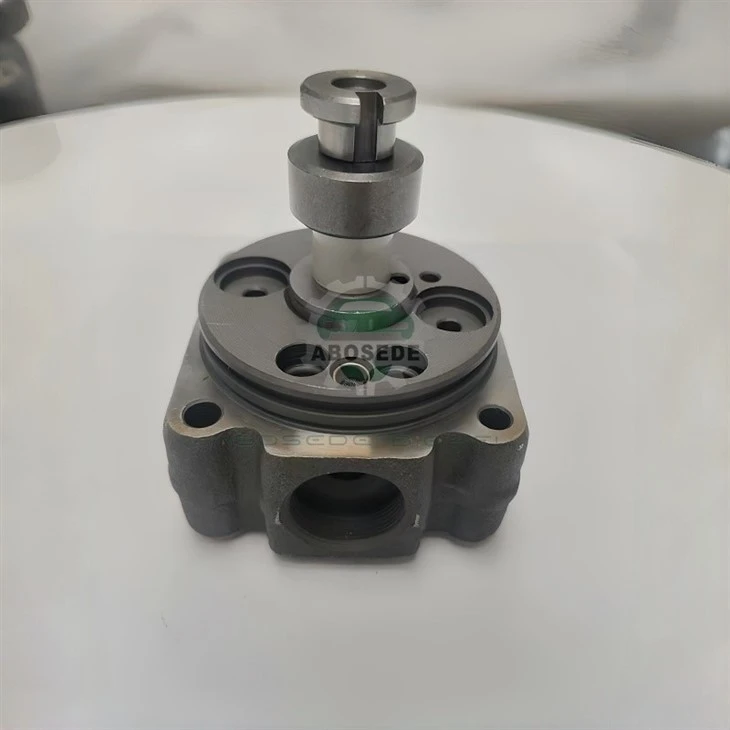

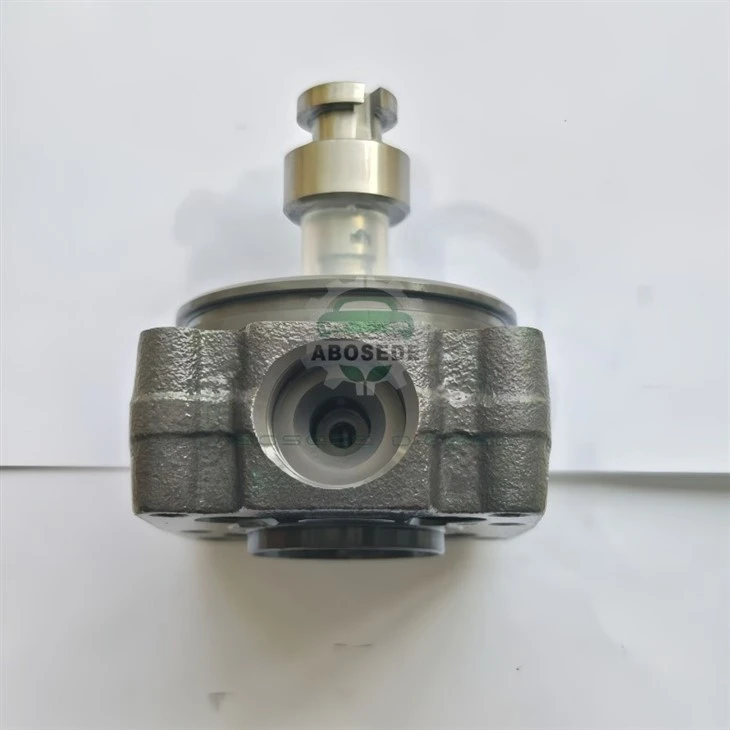

096400-1210 VE Pump Head For Toyota 11Z / 13Z — Closing The Gap Between Bench Pass And Road Performance

A hydraulic head that clears a bench test has proven one thing: it holds pressure under controlled conditions. It has not proven that it will hold pressure in a 11Z or 13Z that idles for hours, runs at varying load, and draws fuel through a filter of uncertain age. The 096400-1210 VE Pump Head is validated twice - once on the bench, once in service - and the two verdicts can diverge. This article examines why bench-pass and road-fail are different outcomes, what separates a part that survives the gap from one that does not, and how common-rail bench-to-vehicle logic applies to a mechanical distributor pump.

A flow bench supplies stable temperature, clean filtered test oil, steady drive speed, and a controlled return line. A Toyota 11Z or 13Z supplies none of these. Coolant temperature swings, fuel viscosity changes with tank temperature, drive speed fluctuates at idle, and the return line carries whatever the system allows. A head that passes at 40°C with clean fluid may leak differently at 85°C with fuel that has absorbed moisture. The bench is not wrong; it is narrow. The gap between its conditions and the engine's is where most post-installation complaints originate.

Bench runs typically hold a temperature. Engine operation cycles it. Each cold start contracts the head body, each warm-up expands it, and the rotor-to-bore clearance breathes with every cycle. A part with marginal clearance can hold at a steady 60°C and drift at the top of a hot soak. This is not a defect in the part number; it is a tolerance-stack position. A head sitting at the tight end of the band behaves differently from one at the loose end, and both are within specification. That is why the 096400-1210 Distributor Head needs a hot-soak verification, not just a steady-state bench pass.

Bench oil is clean, consistent, and free of water. Pump fuel is not. Moisture content, acid number, and particulate load all affect what happens at the metering gap over months. A head that holds pressure with test oil may show accelerated bore corrosion with high-moisture fuel stored in a vented tank. Common-rail service treats fuel quality as a direct input to component life and monitors water separation as routine data. For a Toyota 11Z Diesel Pump Head, the equivalent discipline is filter maintenance, water trap inspection, and fuel storage practice - the same three items that separate a long service life from a short one.

Three engineering choices separate a head that survives service from one that struggles. First: bore surface finish. A finer finish resists particle adhesion and reduces the chance that a single contaminant event becomes a permanent score. Second: rotor-to-bore clearance held near the centre of the band rather than at its edge, giving thermal expansion room without excessive leakage. Third: seal material compatibility with modern fuel blends, not just mineral diesel. These are not visible from a product photo. They show up in the supplier's QC data - hardness, roundness, surface roughness - and in the willingness to share it. In common-rail purchasing, the same three factors separate a reliable injector from a marginal one.

Q1 - My head passed the bench but idles rough hot. What does that indicate?
A clearance position at the loose end of the band, or a hot-soak leakage path the steady bench run did not expose. Re-test hot before condemning the part.

Q2 - Does test oil quality affect the bench verdict?
Yes. Contaminated or wrong-viscosity test oil can mask or exaggerate leakage. Use the specified fluid and replace it on schedule.

Q3 - How can I tell if a supplier's QC data is credible?
Ask for hardness, roundness, and surface roughness values with the batch. Suppliers who cannot produce them are selling a number, not a verified part.

Q4 - Is a hot-soak test necessary if the bench pass is clean?
Strongly advisable. Thermal expansion changes clearance, and the engine is the only place that cycling occurs.

Q5 - What fuel-related records matter for warranty?
Filter change dates, water trap events, and any contaminated fuel incident. These distinguish a part defect from a system fault.

Q6 - Can I compare two suppliers using only price and photos?
No. Price and photos do not show clearance position, surface finish, or seal material. Ask for QC data before comparing.
