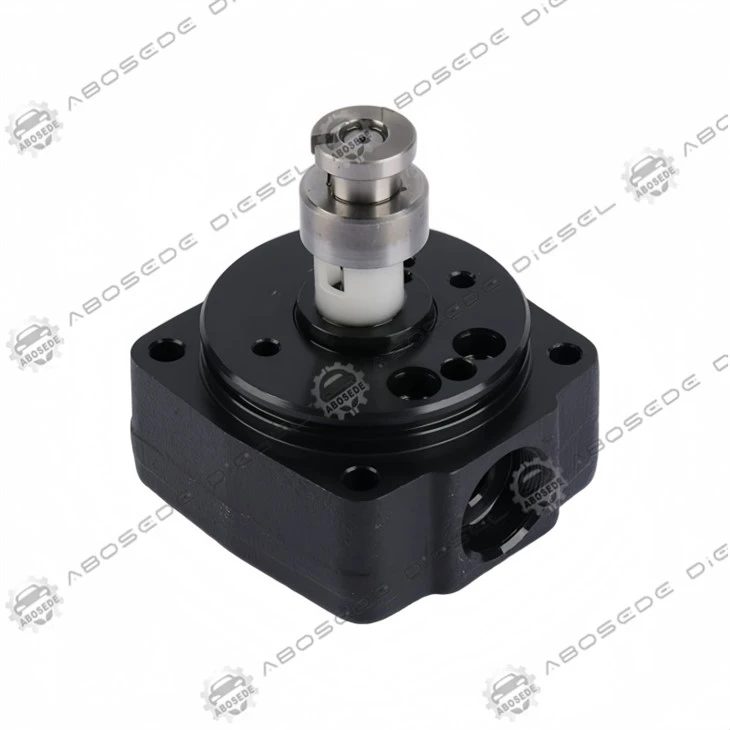

096400-1090 VE Pump Head For Toyota 1DZ — An Incoming Inspection Protocol For The Shop That Installs It

The riskiest moment in a VE pump repair is neither the teardown nor the bench test. It is the hour after the courier drops the box on the counter: the head goes straight onto the pump, and the only inspection is a glance at the part number on the label. That one habit accounts for a large share of repeat repairs, because surface damage, mismatched rotors, and old shelf stock can all pass a label check. This article treats the 096400-1090 VE Pump Head for Toyota 1DZ as a received part that must clear an incoming inspection before it is trusted. The protocol mirrors common-rail receiving discipline, where injectors and high-pressure components are checked at the dock, not after the engine is running.

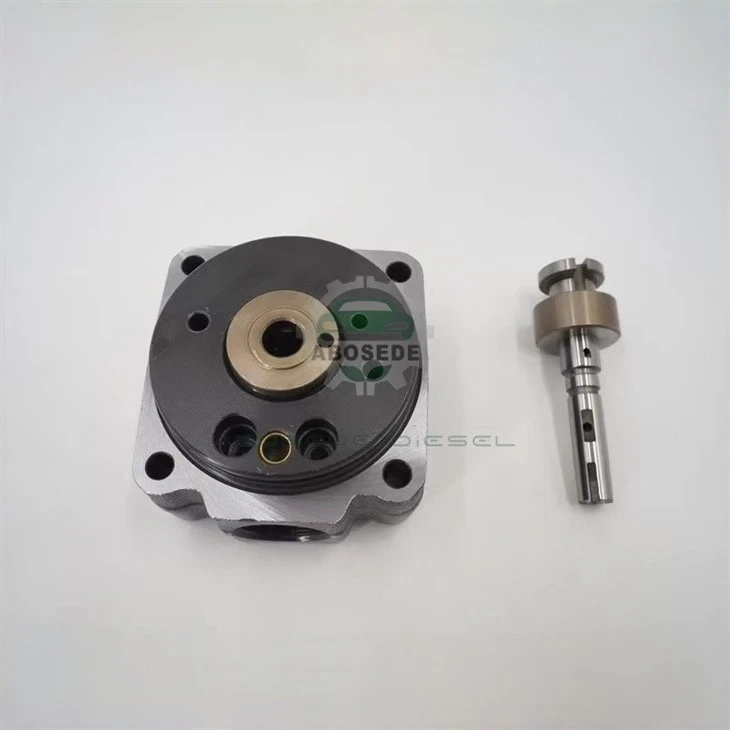

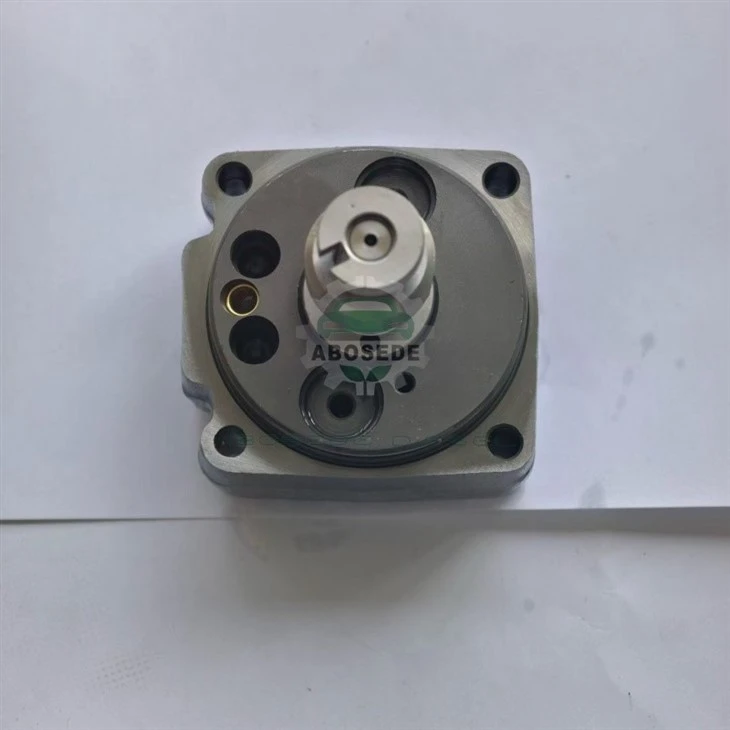

Check one: external packaging integrity and lot label. A crushed box with intact parts is acceptable; a pristine box with no lot label is not. Check two: part number marking consistency on the head body - the 096400-1090 VE Pump Head should read as a single stamped or laser-etched string with no over-stamping. Check three: presence of a matched rotor and plunger set, not loose subcomponents. Check four: bore surface under magnification for directional polishing, which usually signals reconditioning rather than new production. Check five: plug and port protection caps still seated. A part that fails any of these is photographed and quarantined before it goes anywhere near the pump.

The head is a tolerance stack, so measure the stack. Confirm rotor diameter against the supplied specification, check bore roundness at two planes, and verify port alignment against the original pump's distributor window. A basic bore gauge and a flat surface are enough for a workshop-level check; a CMM is not required. Record the measurements against the batch number. This gate is the VE equivalent of verifying injector correction codes before installation in common-rail work - the part fits, but does it fit within the envelope? If the numbers are outside the supplier's declared range, raise it before assembly, not after a comeback.

Two consumables are routinely underestimated. First, test fluid. Use filtered diesel from a dedicated, labeled container; common-rail flushing fluid must never enter a VE circuit because residual additives and contamination distort leakage readings. Second, the seal kit. Fit the complete kit at assembly, not in stages, and do not anneal copper washers as a shortcut. Heat-hardened seals that survive the first bench run often fail after the first sustained duty cycle. On a Toyota 1DZ that sees stop-start industrial duty, this failure mode is common and easily prevented.

The 096400-1090 Distributor Head must be confirmed against the pump nameplate, rotor code, and port orientation. Engine code alone is insufficient, because 1DZ installations vary across applications and production periods. If the nameplate is unreadable, photograph the body, ports, drive end, and any stamped rotor marking, then ask the supplier to confirm before the part is unpacked further. This is the single check that removes the most expensive error class: a correct-looking head with the wrong internal matching.

Q1 - Is a dimensional check realistic without a metrology lab?
Yes. A bore gauge, a flat surface, and a specification sheet cover the critical checks. It is not a lab-grade report, but it catches gross mismatches.

Q2 - What should I do if the lot label is missing?
Quarantine the part and request lot documentation from the supplier before assembly. Missing lot data makes a later dispute hard to win.

Q3 - Can I install first and test on the engine?
You can, but then the engine becomes your only test bench. Receiving and bench checks are cheaper than a second teardown.

Q4 - How do I spot a reconditioned head sold as new?
Directional polishing in the bore, over-stamped numbers, and mismatched subcomponents are the usual signals. Magnification and photographs help.

Q5 - Does the seal kit brand matter?
Consistency and material compatibility matter more than brand. A complete set fitted at assembly beats a premium partial set.

Q6 - What records should be kept for warranty purposes?
Receiving photographs, measurements, batch number, bench results, and the completed checklist. These form the evidence pack if a claim is needed.
