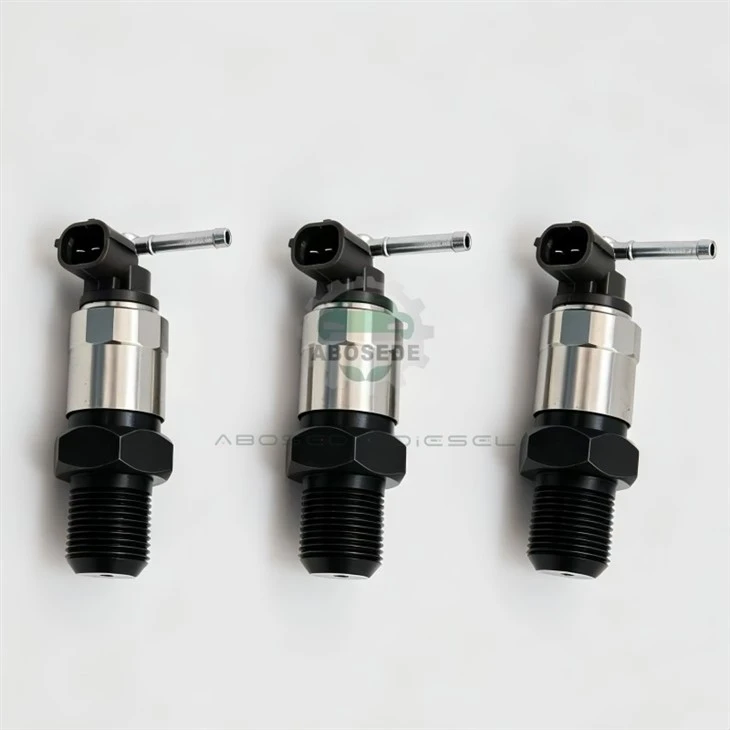

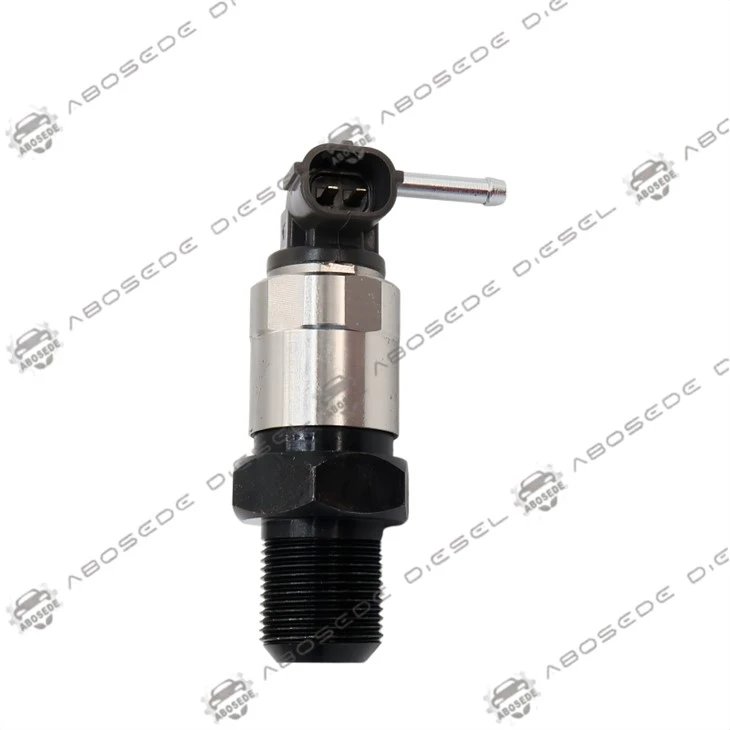

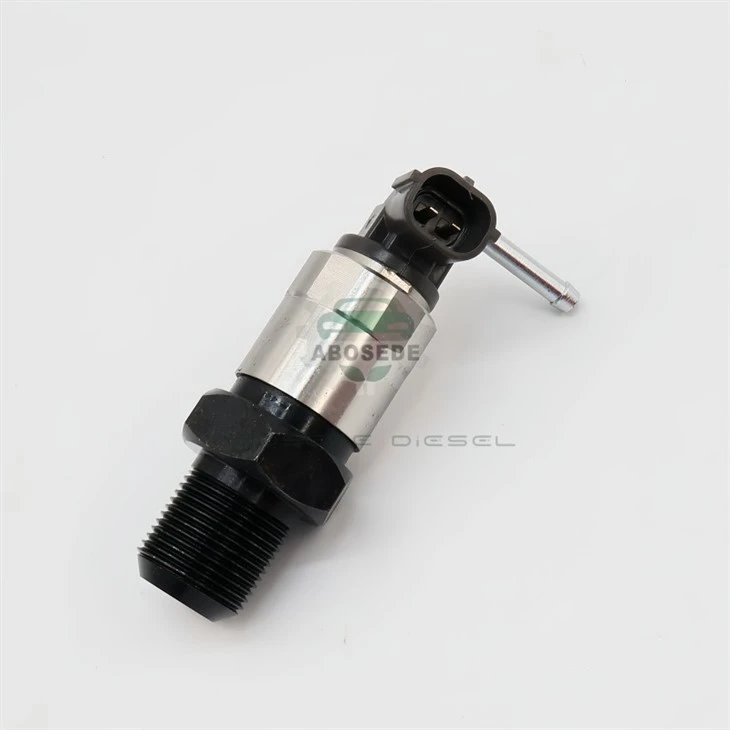

04286681 Common Rail Pressure Sensor – Direct Replacement For High-Pressure Fuel Systems

That service call you took last week-excavator derating mid-lift, no active fault, just a sluggish response from the rail. You swapped the pump, checked the injectors, still nothing. The logging oscilloscope showed the ECU receiving pressure data that didn't match what the gauge read. This is exactly why workshops across Lagos, Nairobi, and Jakarta keep the 04286681 on their fast-moving shelf. It eliminates the guesswork in common rail troubleshooting by giving the control unit an accurate pressure picture-no more chasing ghosts in the fueling map.

This rail pressure sensor does its real work under bonnet temperatures that would cook lesser electronics. The internal piezoresistive bridge maintains signal linearity from cold cranking right through to extended high-idle periods-common when running auxiliary hydraulics on wheel loaders. The 04286681 outputs a clean analog signal that the fuel injection control unit interprets without needing offset corrections, which means your diagnostic time shrinks. When the reading drifts, the ECU either over-fuels or cuts back, both scenarios hurting your customer's productivity. Fitting this unit restores the proper voltage-to-pressure relationship, allowing the high-pressure pump to modulate delivery based on actual demand rather than estimated values.

You will find this sensor specified for common rail systems in Cummins QSB series, Isuzu 4HK1, and Mitsubishi 6M60 power units-workhorses commonly found in dump trucks, medium-duty cranes, and agricultural sprayers. It also directly services Perkins 1200E and Deutz TCD engines that populate the rental fleet segment across emerging markets. The 04286681 mounting geometry matches the factory port depth, so no adapter spacers or thread reducers are required. For wholesale buyers consolidating inventory, this single SKU covers a broad swath of the 4- to 8-litre diesel segment, reducing the number of line items you need to warehouse for emergency breakdown coverage.

The rail port must be absolutely clean. Any carbon flake or metallic burr left in the thread bore will distort the sealing face, causing a micro-leak that presents as a gradual pressure drop-often misdiagnosed as pump wear. Before threading the 04286681, wipe the mating surface with a lint-free cloth and inspect the O-ring groove for deformation. Tighten to 25 N·m using a crow-foot adapter on a torque wrench; never use an impact gun. The connector pins are gold-plated to resist corrosion from the high-sulphur fuel still used in some regions, but dielectric grease on the harness side remains advisable for coastal operation environments.

Consider the alternative: replacing an entire rail assembly or performing an injector return-flow test because the ECU keeps logging a pressure plausibility fault. Both are labour-intensive and expensive for the end-user. The 04286681 offers a first-line defence against nuisance codes like P0191 and P0193, which often clear permanently after sensor renewal. For the workshop owner, this translates to faster bay turnover and fewer comeback vehicles. For the parts distributor, it means a steady-moving item that supports the daily revenue stream without occupying excessive storage volume. Stocking this sensor ensures you have an immediate answer when a customer walks in with a truck that starts fine cold but loses power climbing a graded haul road.

Q1: How can I distinguish a genuine-grade 04286681 from a visually identical copy that fails within weeks?
A: Examine the laser-engraved marking on the metal body-authentic units show a crisp, non-removable code. Test the resistance between the signal pin and ground; a healthy sensor reads above 100kΩ when unpowered, while low-grade copies often drop below 50kΩ, indicating poor internal insulation.

Q2: What is the typical shelf-life consideration for bulk inventory stored in non-climate-controlled warehouses?
A: The O-ring material can harden over time if exposed to prolonged temperatures above 50°C. Rotate stock using a FIFO system and store cartons off the floor to minimize heat transfer from concrete slabs.

Q3: Does this sensor require any calibration or matching procedure when fitted to a replacement ECU?
A: No. The common rail control unit reads this as an absolute analogue input. No VIN coding or injector trim reset is triggered by changing this part. Simply clear stored fault codes after installation.

Q4: Is this unit suitable for biodiesel blends up to B20, which are common in some African markets?
A: Yes. The sensing diaphragm and seal compound resist swelling from ester-based fuels. However, regularly inspect the connector pins for white deposit build-up, as B20 can attract moisture into the harness connector over extended service intervals.

Q5: What return rate do other wholesalers typically experience with this part number?
A: Industry feedback places the non-failure return rate below 1.2% for this configuration, with most returns attributed to shipping damage rather than functional defect. This makes it a reliable backbone item for your pressure sensor category.
