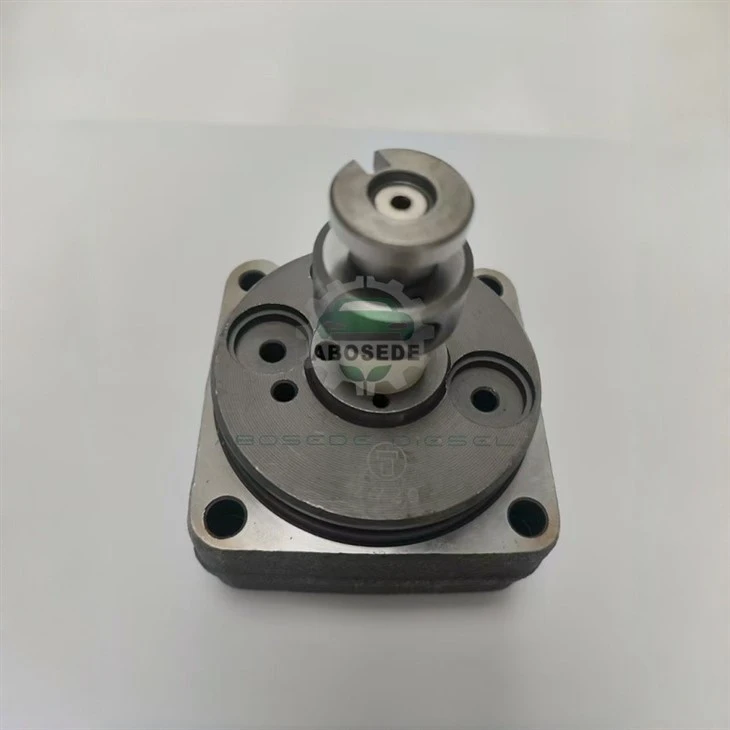

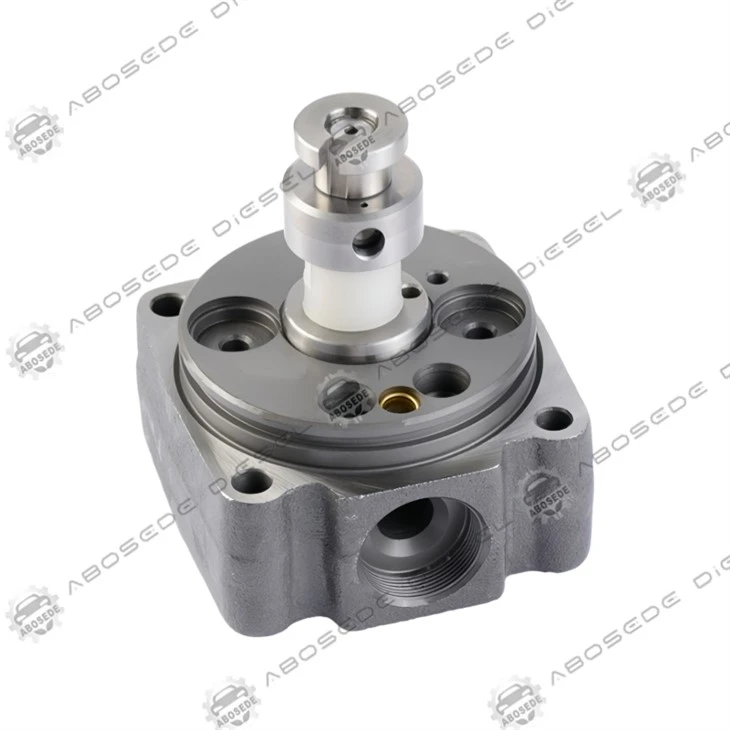

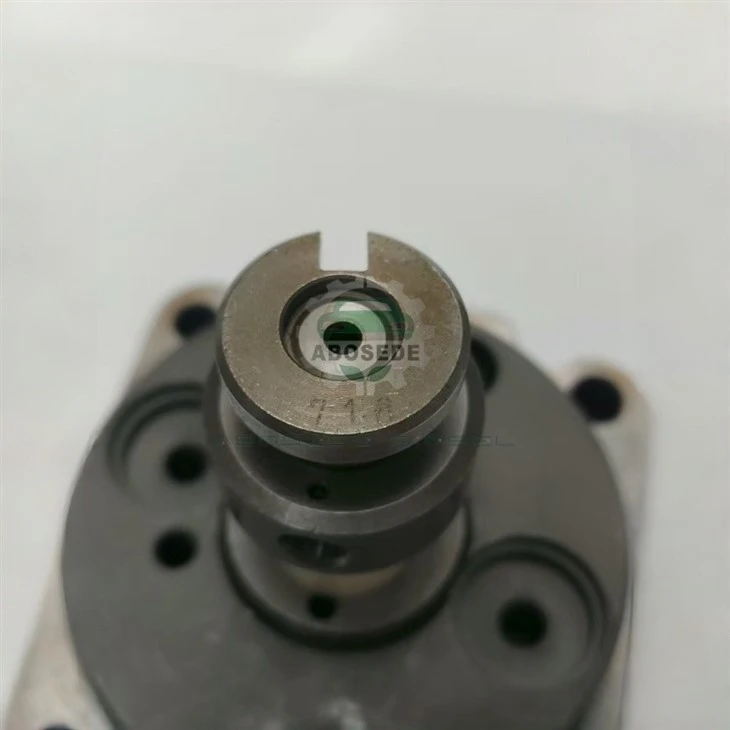

096400-0371 VE Pump Head For Toyota 2L — Return-Rate Thinking Before Rebuild Thinking

Most hydraulic head problems on a Toyota 2L are not discovered at the bench; they surface as returns. A pump that starts well but draws a comeback three weeks later usually traces back to one of three avoidable decisions: accepting a head without matching the rotor code, reusing hardened seals, or installing on a fuel system that was never flushed. The 096400-0371 VE Pump Head for Toyota 2L is therefore best evaluated through return-rate logic - what causes a part to come back, and which checks remove that cause before the vehicle leaves. This article works backwards from returns to selection, sealing, and install discipline, and it keeps one eye on common-rail practice, where contamination and traceability are already treated as engineering variables.

First cause: rotor mismatch. A head that bolts on but carries a different rotor code shifts delivery balance, and the driver reports rough idle or weak pull. Second cause: seal reuse. Hardened O-rings and gaskets that were fine on the bench leak once heat cycles accumulate. Third cause: dirty fuel path. Transfer lines and filter housings that were not flushed push particles straight into the new metering gap. Each cause is preventable with one action: verify the rotor code, fit a complete seal set, and flush before assembly. None of these require new tooling - only sequence discipline.

A hydraulic head is a stack of clamped surfaces: head-to-housing, delivery valve seats, and port fittings. Each interface has a torque value and a surface finish requirement. Under-torque produces external weeping; over-torque distorts the bore and changes internal leakage. Use the pump manufacturer's torque figures, a calibrated wrench, and clean, dry threads. Replace copper washers and sealing rings rather than annealing them. In common-rail work, the same principle applies to high-pressure union nuts - the difference is only the pressure scale, not the discipline. A Toyota 2L VE Pump Head that is correctly clamped will hold its leakage signature far longer than one assembled by feel.

Part number: 096400-0371. Pump family: VE distributor-type hydraulic head. Engine coverage: Toyota 2L where this number is specified. Cylinders: four. Fuel: diesel. Assembly: matched head body with rotor and plunger set. Material focus: hardened alloy steel, precision-ground bore. QC points: dimensional check, hardness, surface finish, internal leakage, flow-bench delivery balance. Fitment keys: pump nameplate, rotor code, port orientation, engine code. Log all of these against the vehicle or machine serial so a later complaint can be compared with the original baseline rather than argued from memory.

The Toyota 2L is a rotary VE application, not a common-rail engine, but the same workshop often handles both. Carry over three habits: filtered test diesel, lint-free handling, and written bench results. Do not carry over pressure assumptions or injector correction logic - a VE pump is judged by leakage and delivery balance, not by correction codes. Keeping common-rail flushing equipment separate from VE test fluid prevents cross-contamination and keeps the 096400-0371 Distributor Head evaluation honest.

Q1 - What is the most common reason a 096400-0371 head is returned?
Rotor or port mismatch, usually from ordering by engine code alone without checking the pump nameplate.

Q2 - Can I reuse the original seals if they look intact?
No. Heat-hardened seals often fail after the first long duty cycle. Fit a complete new seal set at assembly.

Q3 - How should the head be stored before fitting?
Keep it sealed and rust-protected, away from humid air. Fit seals only at the time of assembly.

Q4 - Is a flow bench mandatory after installation?
Not mandatory, but strongly advised. Cold-start, hot-idle, and delivery balance results give you a baseline for future diagnosis.

Q5 - Do cross-reference numbers replace the pump plate check?
No. Cross-references help sourcing; the pump plate and rotor code remain the final authority.

Q6 - What torque guidance applies to the head and delivery fittings?
Follow the pump manufacturer's figures with a calibrated wrench and clean dry threads. Do not estimate by feel.
