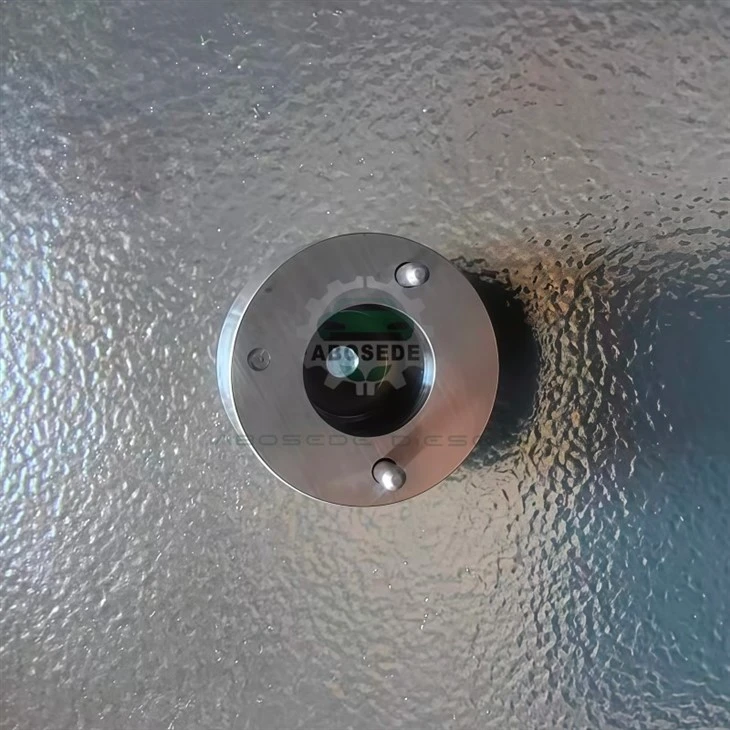

7207-0138 E3 EUI Injector Spring Chamber Assembly

The 7207-0138 is a precision spring chamber assembly engineered for E3 series 4-pin electronic unit injectors (EUI) used in light-duty and mid-range diesel platforms. For repair shops and diesel parts distributors across North America and Europe, this component sits at the heart of the injector's hydraulic control circuit, directly influencing fuel metering consistency and injection timing accuracy. When original injectors are rebuilt rather than replaced, sourcing a genuine-grade spring chamber becomes a critical decision for shops that cannot afford comebacks on common rail and EUI-equipped vehicles.

The 7207-0138 spring chamber is manufactured to original tooling standards, ensuring dimensional tolerances and surface finishes match the OEM assembly. It is catalogued under manufacturer number 7207-0138-12B1 and is commonly listed alongside E3 injector service kits. The unit weighs approximately 1 kg and arrives in original or neutral packaging depending on order volume, with a standard 6-month warranty against manufacturing defects. This chamber is not a generic diesel injector shim or spacer; it is the complete spring housing that retains the injector's internal return spring and armature assembly. Distributors should note that counterfeit spring chambers often exhibit inconsistent spring seat depths, which manifest as erratic pilot injection quantities after rebuild.

This EUI spring chamber is principally deployed on E3 injectors found in a range of diesel passenger cars and light commercial vehicles. European workshops will recognise its application within Toyota and PSA group platforms utilising the 1.5 D-4D and related HDi engines, where E3 injectors are fitted. The 4-pin EUI architecture is sensitive to internal pressure retention; a worn or contaminated spring chamber produces rough idle, cold-start misfire, and fuel rail pressure deviation codes that mimic pump or sensor failure. For independent repair shops, keeping 7207-0138 on the shelf means being able to complete a full injector recondition in-house rather than outsourcing to a specialist, protecting both margin and turnaround time.

Fitting a replacement spring chamber demands a clean bench and strict adherence to injector assembly torque sequences. The chamber must seat flush against the injector body; any debris trapped between mating surfaces will alter the armature lift and distort the injector's fuel delivery curve. Before disassembly, mark the injector orientation and record any trim codes stored in the ECM-these will need recalibration after the rebuild. Lubricate new O-rings with clean diesel, never grease, and verify that the return spring sits correctly in its seat before torquing the chamber retaining fasteners. Post-assembly, every rebuilt EUI should undergo back-leakage testing and, where equipment permits, end-of-line flow bench calibration to confirm the spring chamber is performing to the injector's original specification.

In the diagnostic bay, a failing spring chamber rarely triggers a direct fault code. Instead, it corrupts the injector's ability to hold control chamber pressure, producing symptoms that technicians misattribute to the high-pressure fuel pump or fuel control actuator. On E3 EUI systems, the spring chamber governs the spill valve response characteristics; a degraded chamber causes injection duration scatter across cylinders, leading to cylinder balance faults, elevated fuel return flow, and increased particulate emissions. For a diesel repair shop, the economic argument is straightforward: replacing an entire set of injectors costs several times more than a spring chamber rebuild, yet the diagnostic outcome-restored idle stability and corrected injection quantities-is equivalent when the chamber is the only worn component. Distributors who stock 7207-0138 position themselves as enablers of cost-effective EUI servicing, a segment that grows as fleets extend service intervals and defer major component replacement.

Q1: Can I fit this spring chamber without recalibrating the injector on a test bench?
A: No. Any internal injector component replacement alters the hydraulic response. Always perform back-leakage and flow testing after rebuild.

Q2: How do I identify a genuine 7207-0138 versus a low-cost copy?
A: Inspect spring seat depth and surface finish under magnification. Copies typically show machining marks and inconsistent seat concentricity.

Q3: Does this chamber suit both passenger car and commercial E3 injectors?
A: It is specific to the E3 4-pin EUI family. Verify the injector body stamping before ordering-later E4 units use different internal geometry.

Q4: What is the typical shelf life, and are storage conditions critical?
A: Indefinite if kept sealed and dry. Unpackaged chambers must be stored in a dust-free environment; corrosion on the spring seat ruins the part.

Q5: Do you offer bulk pricing for workshops rebuilding multiple injectors per month?
A: Yes. Distributor and volume workshop pricing is available; contact with your monthly rebuild estimate for a quotation.

Q6: Is a warranty claim honoured if the injector fails after rebuild?
A: The 6-month warranty covers the chamber itself against material or machining defects. Failure caused by incorrect installation or contaminated fuel is excluded.
