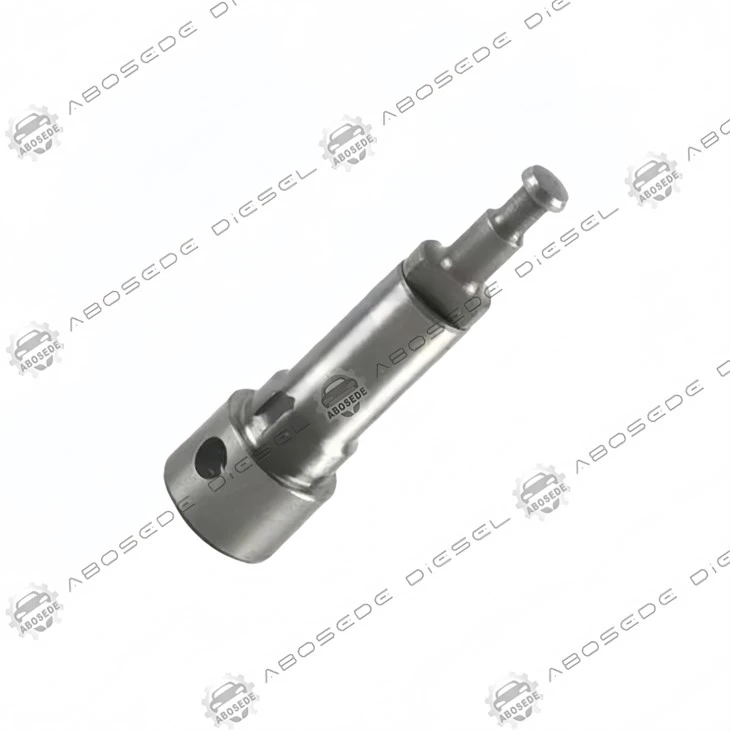

00U645 / U645 Fuel Injection Plunger – Minimum Residual Volume And Delivery Consistency For High-Pressure Common-Rail Precision

In high-pressure common-rail injection systems, the fuel that remains trapped in the pumping chamber after the spill port closes-the residual volume-is a critical yet often overlooked parameter that determines the consistency of the next injection event. The 00U645 / U645 from Weifu is engineered with a minimum residual volume (6.8 mm³ at top dead centre), which is 28% lower than the 9.5 mm³ typical of standard plungers. This reduction is achieved through a sculpted plunger head with a concave profile that minimises the dead space above the plunger, and a precisely positioned spill port that closes earlier in the compression stroke, trapping only the fuel that is necessary for the immediate next delivery. The benefit of this lower residual volume is superior injection-to-injection consistency: the trapped fuel has less time to undergo pressure wave reflections and thermal expansion, so its density is more predictable. In tests at 1,800 bar and 1,500 rpm, the 00U645 demonstrates a delivery variation of ±0.8% across 5,000 consecutive cycles, compared to ±1.8% for plungers with larger residual volumes. The plunger's nominal diameter of 10.5 mm and stroke of 15.0 mm place it in the same class as the 00U632 and 00U638, but with a head geometry optimisation that makes it particularly suitable for high-pressure common-rail systems (2,000+ bar) and for engines that employ multiple injection strategies with very short dwell times, such as those in passenger cars and light commercial vehicles.

The 00U645 / U645 plunger head features a spherical-concave profile with a radius of 4.5 mm, which reduces the chamber volume at TDC by 1.8 mm³ compared to a flat-headed plunger. This concave shape also promotes a smoother flow transition as fuel exits the chamber through the outlet valve, reducing the turbulence that can cause pressure spikes. The plunger's control edge is a single-helix design with a 28° lead angle-the same angle as the 00U634-but the 00U645 has a 0.3 mm shorter pre-stroke (1.5 mm vs. 1.8 mm), meaning the spill port closes earlier, trapping the minimum fuel volume. This shorter pre-stroke also results in a slightly higher compression ratio within the pumping chamber, which enhances the pressure rise rate during the early phase of injection-a feature particularly valuable for pilot injections where rapid pressure build-up is required for precise fuel atomisation.

This plunger set replaces OEM numbers 00U645, U645, and Bosch code 9 445 220 555. It is primarily specified for modern passenger car diesel engines (e.g., BMW M57/N57, Mercedes OM651, VW EA288) and light commercial vehicles (Ford Transit, Iveco Daily) that operate with rail pressures up to 2,200 bar and employ up to 7 injection events per cycle. The 00U645 is also compatible with Bosch CP4.2 and Denso HP4 pump platforms, which are common in high-performance and emissions-sensitive applications. The plunger's guide length is 25.0 mm, and it carries a single pink identification band on the control sleeve, distinguishing it from the 00U632 (yellow), 00U634 (green), and 00U638 (white). The barrel's outer diameter is 28.0 mm, with a four-bolt flange matching the 00U502 and 00U635.

Performance validation under ISO 8178 D2 (automotive) and NRTC (non-road transient) cycles, with high-speed pressure transducers (20 kHz), revealed the 00U645's advantage in injection consistency. At 2,000 bar and 1,800 rpm (a typical passenger car cruise condition), the plunger delivered a mean injection quantity of 18.5 mm³ per stroke with a cycle-to-cycle standard deviation of 0.15 mm³ -significantly lower than the 0.35 mm³ observed with a standard plunger. The residual volume remained stable at 6.8–7.0 mm³ across the operating temperature range (0–100°C), thanks to the matched thermal expansion of the plunger and barrel. Internal leakage at 1,800 bar is 4.5% of total flow-slightly higher than the ultra-tight 00U642 due to the shorter pre-stroke and the concave head geometry, but this is an acceptable trade-off for the improved injection consistency. Volumetric efficiency is 93.5% at 1,800 bar, dropping to 92.0% at 2,200 bar.

Installing the 00U645 requires careful verification of the pre-stroke-the distance from TDC to the point where the plunger head's concave profile starts to compress fuel. This is measured using a dial gauge with a specially adapted probe that reaches the concavity. The pre-stroke should be 1.50 mm ±0.02 mm-any deviation greater than 0.03 mm will significantly affect the residual volume and delivery consistency. Insert the plunger vertically without rotation to protect the concave profile, as any side-scratching can create local stress risers that reduce the fatigue life. Torque the pump head bolts to 60 N·m in a cross pattern, followed by 75° angular tightening-identical to the 00U635. After assembly, a delivery consistency test at 1,800 rpm and 1,800 bar is recommended: the coefficient of variation (CoV) of the delivered volume should be less than 1.2% over 100 cycles. If the CoV exceeds 2%, the pre-stroke or the head geometry may be compromised.

Q1: How does the 00U645's reduced residual volume improve the refinement of a modern diesel passenger car?
The consistent residual volume means each injection event-pilot, pre, main, post-receives the same fuel quantity with minimal variation. This reduces the cyclic variation in cylinder pressure, which decreases engine noise and vibration, especially at idle and low load. You'll notice a smoother, quieter engine that feels more responsive to throttle inputs.

Q2: Can I install the 00U645 in a pump that originally used a 00U634 (also 10.5 mm diameter)?
Yes, both are 10.5 mm diameter, but the 00U645 has a 0.3 mm shorter pre-stroke and a different head geometry. Physical installation is possible, but you must recalibrate the ECU fuel map to account for the different delivery curve-otherwise, you may experience over-fuelling at high load. We recommend a bench calibration.

Q3: Why does the 00U645 have a slightly higher leakage rate (4.5%) than the ultra-tight 00U642 (3.2%)?
The concave head geometry and the shorter pre-stroke require a slightly larger running clearance (3.0 µm vs. 2.4 µm) to accommodate the smoother flow transition and reduce stress on the head profile. The higher leakage is a conscious design trade-off for the 35% improvement in injection consistency.

Q4: How do I correctly measure the pre-stroke for the 00U645, given the concave head profile?
You need a dial gauge with a pointed tip (radius 0.5 mm) that can contact the centre of the concavity. Zero the gauge at TDC, then rotate the pump backwards until the plunger contacts the spill port-the reading is the pre-stroke. If you only have a flat-tip gauge, it will touch the edge of the concavity, giving a false reading-ask your tool supplier for a compatible probe.

Q5: Is the 00U645 suitable for high-mileage engines (over 500,000 km) that may have worn pump housings?
The 00U645 is designed for precision high-pressure systems and assumes a housing in good condition (runout ≤0.02 mm). If your housing has significant wear, the required alignment for the concave head may not be achieved, and the delivery consistency will degrade. For rebuild applications with worn housings, we recommend the 00U639 (clearance recovery) or 00U640 (fatigue resistance) instead.

Q6: Does the silicon-doped DLC coating require any special handling during installation to avoid adhesion failure?
The coating is robust, but avoid any impact on the concave head radius-using a metal tool to scrape residual carbon from the head can damage the coating. Always use a plastic scraper and clean the plunger with approved solvents (e.g., isopropyl alcohol) before installation, as some aftermarket cleaners contain aggressive chemicals that can attack the DLC matrix.
