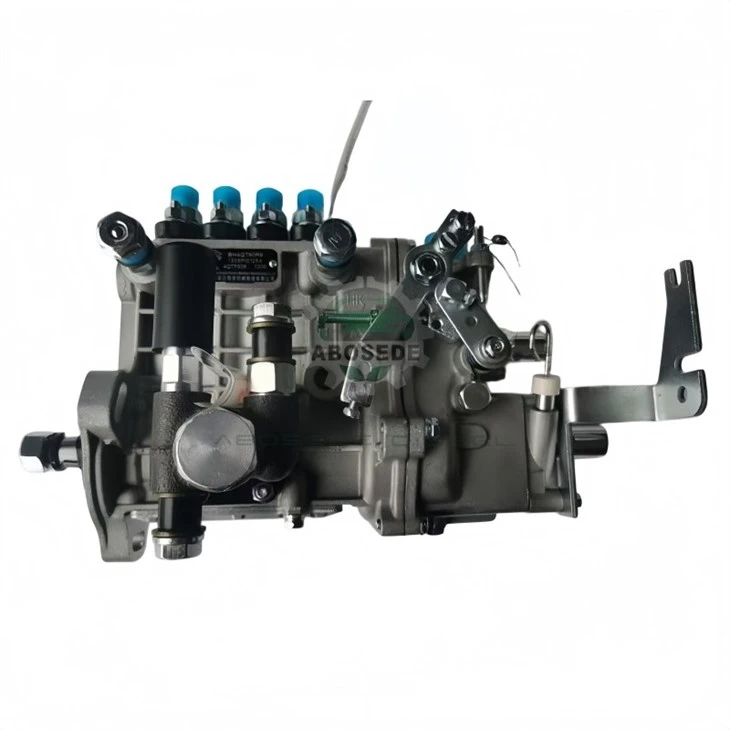

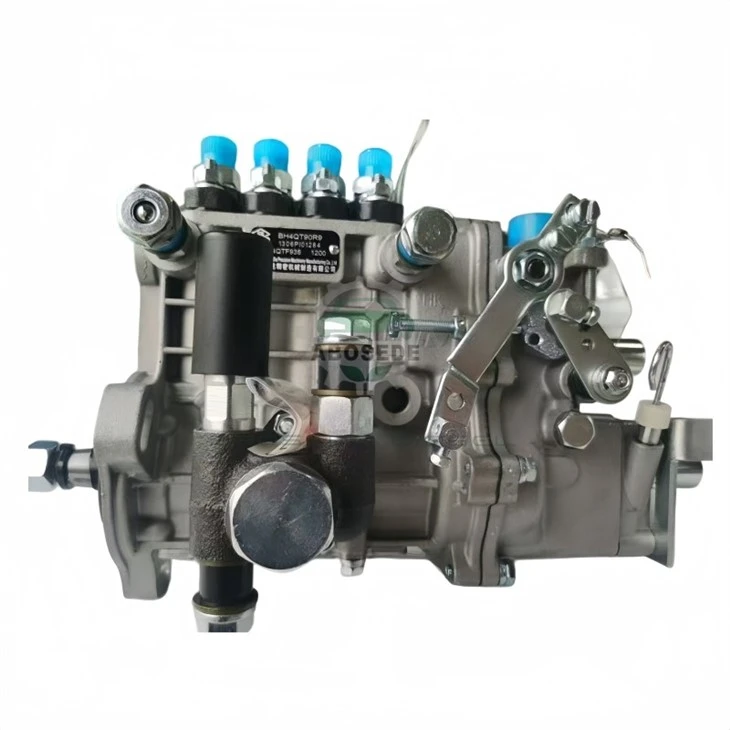

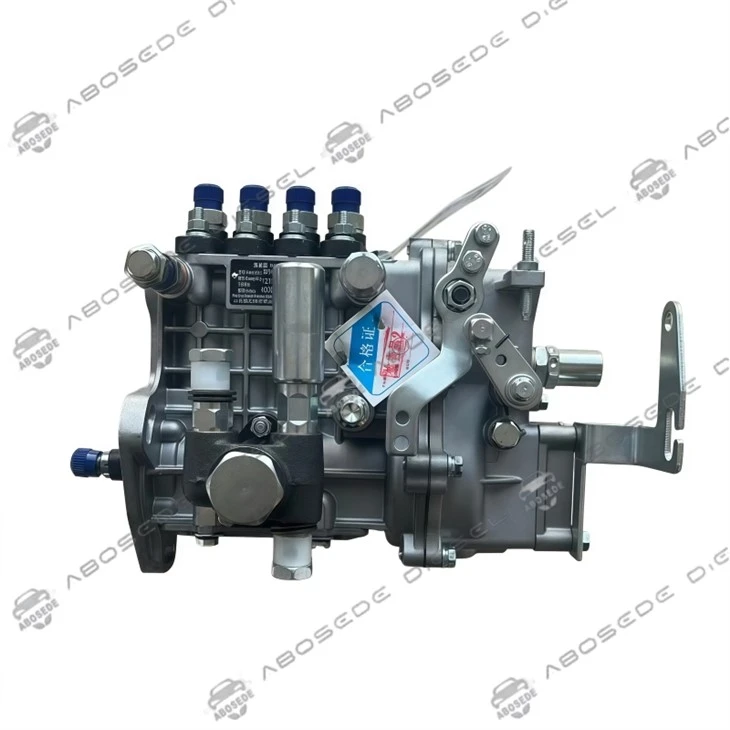

KANGDA BH4Q75R8 (4Q73) Inline Fuel Injection Pump For Xichai 490 Diesel Engine

The KANGDA BH4Q75R8 is an inline plunger fuel injection pump manufactured by Shandong KANGDA Precision Machinery under order number 4Q73. It is engineered for 490-series diesel engines used across Xichai and Changchai power platforms, rated for 3000 RPM direct injection operation. Every unit undergoes factory verification of delivery consistency, governor response, and plunger sealing integrity prior to dispatch, giving wholesale buyers a reliable baseline for resale into fleet maintenance channels.

The four plunger-and-barrel assemblies are synchronized through a camshaft-driven rack mechanism, delivering metered fuel in 1-3-4-2 firing order. Mounting flange geometry and drive shaft spline configuration follow original KANGDA pump pad specifications, permitting drop-in replacement without adapter plates.

This BH4Q75R8 serves 490-series engines across Kama light trucks, HELI forklifts equipped with Xinchai 485/490 powerplants, 485 tractors, Kangda 1150 agricultural machinery, and Xichai 490NB engine platforms. Repair and parts wholesalers covering Southeast Asia and Africa will find this pump addresses a broad installed base where mechanical injection remains the dominant architecture, largely due to its tolerance of variable fuel quality and straightforward field diagnosis without electronic service tools. Distributors supplying irrigation pump sets, small gensets, and light construction equipment should also treat this unit as a recurring stock line rather than a special-order part.

Before pump removal, lock cylinder 1 at compression TDC and scribe the drive gear-to-pump shaft alignment. Do not rotate the pump shaft after separation; the keyway orientation must transfer unchanged to the replacement unit. Apply clean engine oil to the O-ring seal, torque mounting fasteners evenly, and confirm the rack moves freely through full travel before final tightening. Air trapped in the pump gallery after installation is a frequent cause of hard starting and uneven idle-bleed the low-pressure circuit completely before first crank. On units returning to service after long storage, flush the delivery valves with clean diesel and inspect the plunger surfaces for varnish before mounting.

For diesel repair wholesalers serving construction and agricultural fleets, the BH4Q75R8 represents a steady-demand line item. The 490 platform continues active service across Africa and Southeast Asia, where replacement cycles follow hour-meter intervals rather than electronic diagnostics. This pump's mechanical architecture eliminates driver module failure points, making it a practical stock item for distributors supporting forklift fleets, tractor repair networks, and genset maintenance operations in those regions. Buyers comparing this unit against budget alternatives should weigh plunger hardness, governor spring consistency, and flange machining tolerance, since these three factors separate long-service pumps from short-cycle replacements.

Q1: Can I fit this pump to a turbocharged 490 variant?
The BH4Q75R8 is calibrated for naturally aspirated configurations. Turbocharged 490ZD platforms require a different delivery curve to match increased air mass; using this calibration will run lean under boost and risk elevated exhaust gas temperatures.

Q2: What distinguishes the 4Q73 order number from other BH4Q75R8 listings?
The 4Q73 designation identifies a specific calibration and build configuration within the BH4Q75R8 family. Always match order number, pump model stamping, and flange bore spacing against the original unit before ordering.

Q3: How should I handle incoming stock inspection?
Verify that the rack drops freely through full travel when the pump is held horizontally. Check the plunger assemblies for free vertical movement and confirm the delivery valves seal properly. Any binding at this stage indicates storage-related varnish or transit damage.

Q4: What fuel quality considerations affect pump lifespan in tropical climates?
High humidity accelerates moisture contamination and microbial growth in fuel tanks, leading to rack bore corrosion. Recommend water separator inspection at every service interval and fuel polishing for equipment stored for extended periods.

Q5: Does this pump accept B20 biodiesel blends?
B5–B20 can be used with shortened filter change intervals, but higher biodiesel concentrations degrade the governor assembly elastomers. For B100 operation, specify a rebuild with biodiesel-compatible seals.
