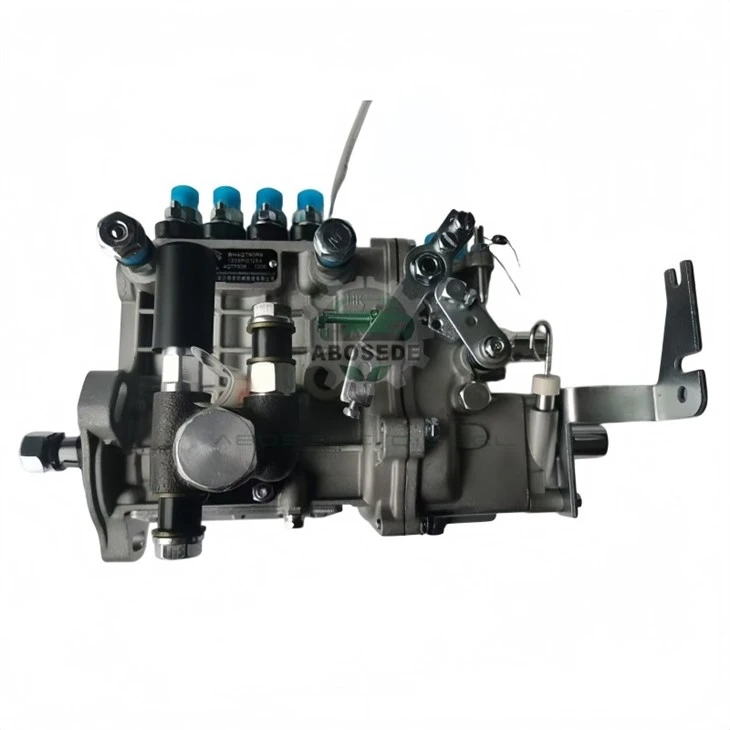

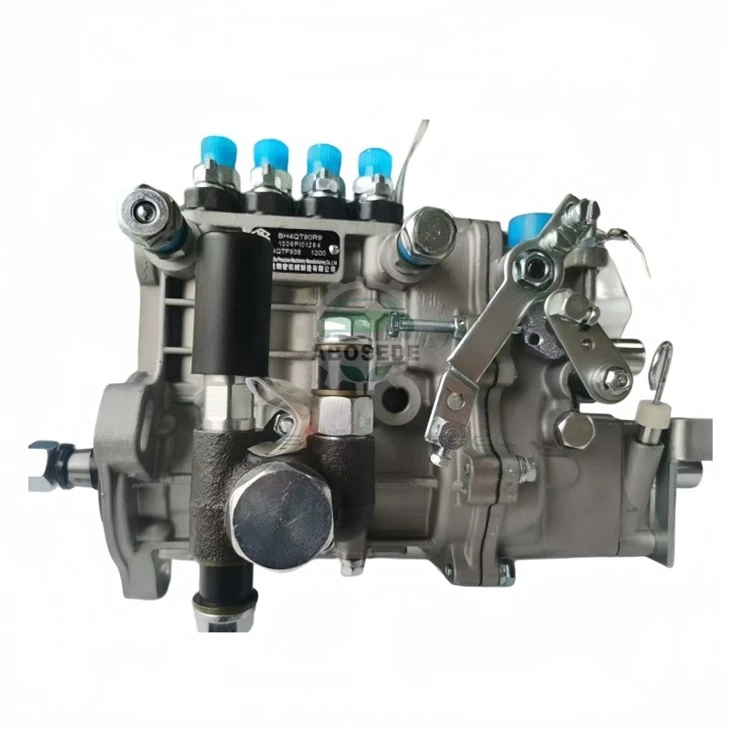

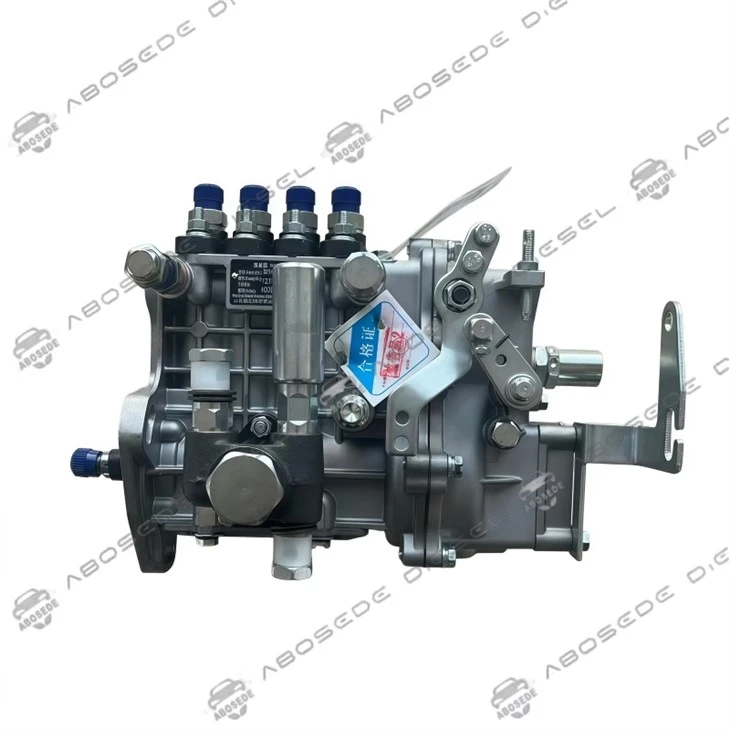

KANGDA 4Q75 BH4Q65R8 Diesel Fuel Injection Pump For Laidong 485 Engine

This KANGDA 4Q75 (BH4Q65R8) mechanical fuel injection pump assembly is a direct-fit replacement engineered for Laidong 485 diesel engines operating at 3300 RPM in turbocharged applications. Manufactured by Shandong Kangda Precision Machinery, this inline plunger-type pump delivers factory-calibrated fuel metering for reliable cold starts, stable idle quality, and consistent power delivery under load. Whether you operate a repair shop servicing agricultural equipment or distribute diesel components to fleet maintenance operations, this pump restores the fuel system performance that Laidong 485 platforms demand.

The BH4Q65R8 is an inline mechanical injection pump featuring four plunger-and-barrel assemblies arranged in a Bosch-derived BQ housing architecture. The order number 4Q75 identifies this specific calibration within Kangda's BQ series, matching the fuel delivery curve required by the Laidong 485 engine at its rated 3300 RPM turbocharged operating point. The pump uses a mechanical all-speed governor to regulate fueling across the entire RPM range, with a flange-mount interface that aligns with the engine's timing gear cover. Each plunger pair is precision-lapped to maintain volumetric efficiency within microns, ensuring that injection timing and atomization pressure remain stable even as the pump accumulates service hours.

This pump is calibrated specifically for the Laidong 485 diesel engine, a four-cylinder industrial powerplant widely deployed in small tractors, forklift trucks, and stationary generator sets across Southeast Asia, Africa, and South America. The turbocharged 3300 RPM configuration places this engine in a higher-output category than naturally aspirated 485 variants, meaning the injection pump must deliver fuel volumes matched to elevated boost pressure and combustion chamber temperatures. Repair shops servicing Laidong-powered agricultural machinery will find the BH4Q65R8 appropriate for engines exhibiting symptoms of fuel starvation under load, excessive black smoke at idle, or hard starting after the engine reaches operating temperature.

Correct installation begins with verifying that cylinder number one is positioned at top dead center on the compression stroke, with the flywheel timing mark aligned to the engine's pointer. The pump drive gear must engage the idler gear without forcing the shaft, as the woodruff key and taper fit are designed for a slip engagement. Before tightening the flange mounting nuts, technicians should rotate the pump body within its slotted holes to achieve the injection advance specified for the Laidong 485 turbo application. After mechanical installation, bleed the low-pressure circuit using the manual primer on the fuel filter housing until bubble-free diesel flows from the return line. Running the pump dry, even briefly, will score the plunger barrels and permanently reduce delivery volume on all four cylinders.

When a Laidong 485 has accumulated over 3,000 operating hours and begins exhibiting inconsistent governor response, white smoke during cold starts, or fuel dilution in the crankcase oil, the plunger-to-barrel clearance has typically exceeded the wear limit that any calibration adjustment can compensate for. Attempting to repair a worn BQ-series pump by replacing individual delivery valves or plunger springs rarely restores the injection timing curve to factory specification, because the camshaft lobe profile and control rack also exhibit wear that is not visible during visual inspection. Installing a complete BH4Q65R8 assembly eliminates all wear variables simultaneously and provides a 12-month warranty against manufacturing defects.

Q1: Does the 4Q75 order number guarantee fitment on any Laidong 485 engine?

No. The 4Q75 identifies the pump's calibration group, but Laidong produced 485 variants with different injection timing specifications depending on whether the engine is turbocharged or naturally aspirated.

Q2: Can this pump be used with biodiesel blends common in overseas markets?

The hard-anodized bore and viton seals tolerate B20 blends without swelling, but B100 requires upgraded elastomers in the delivery valve holders that are not standard on this part number.

Q3: What is the return rate on this pump when installed by non-OEM technicians?

Kangda BQ-series pumps returned as defective are overwhelmingly found to have installation-related failures: contaminated fuel, incorrect timing, or dry-run scoring.

Q4: Is the BH4Q65R8 available with a core deposit program?

Yes. Several Kangda distributors offer core credit for the returned old pump, which is remanufactured to service exchange specifications and resold in markets where new OEM pricing is prohibitive.

Q5: What is the typical lead time for restocking this pump after seasonal demand spikes?

March through May coincides with planting season in key export markets, creating a 4-to-6 week lead time for BH4Q65R8 orders placed after February.
