KANGDA 2QT50 BH2QT90R9 – Direct Fit Pump For Lijia SL2105ABD Stationary Diesels

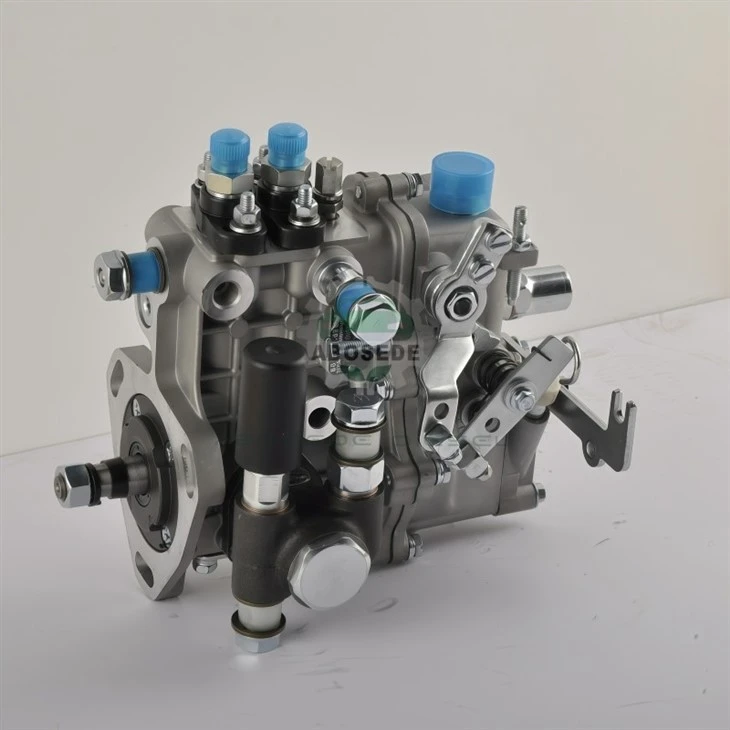

This KANGDA 2QT50 inline fuel injection pump, equipped with the BH2QT90R9 plunger and barrel assembly, delivers precisely metered fuel to the Lijia SL2105ABD two-cylinder diesel engine. Commonly installed aboard marine generator sets, agricultural drying units, and mobile hydraulic power packs, this pump sustains the rated 17.5 kW output across continuous 1500 RPM operation. Field failure data indicates that plunger-to-barrel clearance exceeding 0.008mm reduces injection pressure by nearly 18%, directly translating into visible black smoke and sluggish governor response-making a factory-spec replacement the most time-efficient correction for workshop technicians.

The BH2QT90R9 hydraulic head incorporates a 9mm plunger diameter with a ground helix angle specifically profiled for the SL2105ABD's swirl-type combustion system. Factory calibration sets the delivery valve opening threshold at 175 bar, while the mechanical governor employs a flyweight-and-spring arrangement that restricts speed droop to 4% between no-load and full-rated load. Total fuel rack travel measures 12.5mm, with the maximum fuel stop screw locked to the engine's 17.5 kW fuel consumption curve. For repair shops operating a Hartridge or Bosch EPS test stand, the dynamic injection timing should advance to 22° BTDC at 1500 RPM-any deviation indicates either incorrect shim thickness beneath the plunger spring or progressive wear on the camshaft lobe profile.

While the SL2105ABD designation anchors this pump's primary fitment, the 2QT50 unit also appears in Lijia-powered reefer container gensets, irrigation pivot drives, and small-scale sawmill carriages that demand unwavering speed stability under variable torque. Unlike highway truck engines that experience transient load spikes, these stationary applications subject the roller tappet and control sleeve to constant, unrelenting friction at a single operating point-a condition that gradually erodes the governor spring tension and introduces low-speed instability. Parts distributors serving coastal repair hubs frequently stock the KANGDA 2QT50 for pre-season overhauls, particularly before monsoon months when backup power availability becomes mission-critical. Always verify the Lijia build suffix stamped on the cylinder block-SL2105ABD units produced prior to 2012 used a shorter fuel cam ramp, requiring a different delivery valve spring rate than later production runs.

Service records from Gulf Coast diesel shops reveal three recurring mistakes that ruin a fresh BH2QT90R9 within the first 100 hours. The most common oversight involves neglecting to check drive gear end-float-excessive axial movement allows the fuel cam to contact the housing bore, generating metallic debris that quickly scores the plunger and barrel mating surfaces. Second, technicians frequently over-torque the high-pressure line flare nuts, distorting the cone seat and causing internal stress fractures that weep fuel under load. Third, failing to prime the low-pressure circuit fully before starting allows the delivery valve to hammer against dry seats, permanently denting the valve face and destroying injection consistency. After mounting the pump, crank the starter with all injector line nuts cracked open until solid fuel-free of aerated foam-spurts from every outlet, then snug each line progressively from the pump outward to the injector.

Q1: Does the BH2QT90R9 pump share the same mounting flange pattern as a Bosch PFR-type pump?
A: No-the bolt hole spacing and dowel pin locations differ. Fitting a Bosch unit requires an adapter plate, which alters the injection timing geometry. The KANGDA 2QT50 uses Lijia's proprietary flange casting for direct bolt-on replacement.

Q2: What symptoms indicate my old pump's governor is failing rather than the plunger?
A: Governor wear causes speed hunting-oscillation between 1440 and 1560 RPM at steady load. Plunger wear, conversely, shows as consistent low power across all speeds with heavy black smoke. A quick check: pinch the return line-if engine speed stabilizes, the governor spring has softened.

Q3: Can I swap just the BH2QT90R9 plunger barrel instead of the complete pump assembly?
A: Technically yes, but in-shop lapping requires specialized tooling and a clean-room environment. Most service managers prefer complete pump replacement to avoid comebacks from improperly mated delivery valve and plunger sets.

Q4: How does fuel viscosity affect this pump's calibration accuracy?
A: Winter-grade diesel with lower cetane reduces delivery valve opening response, slightly retarding effective injection timing. Shops in cold climates should adjust the fuel rack stop screw by 1/8 turn richer for ambient temperatures below 5°C.

Q5: What documentation should accompany a wholesale order of KANGDA 2QT50 pumps?
A: Request batch test certificates showing static injection pressure and governor cut-off speed for each unit. Reputable suppliers provide these printouts, confirming the pump left the factory within ±2% of SL2105ABD calibration maps.
