KANGDA 4QF81c BH4Q60R8 Diesel Injection Pump For Laidong LL480Q

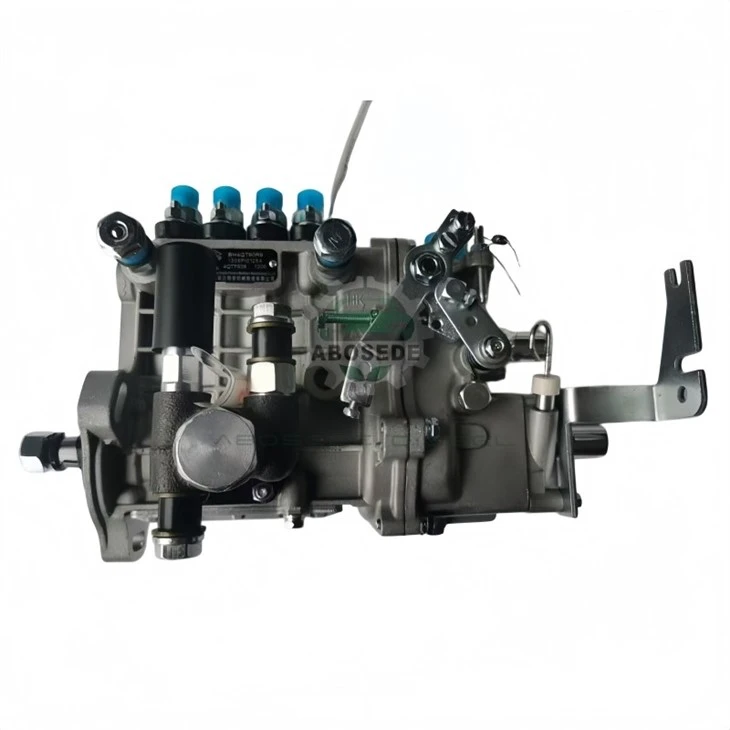

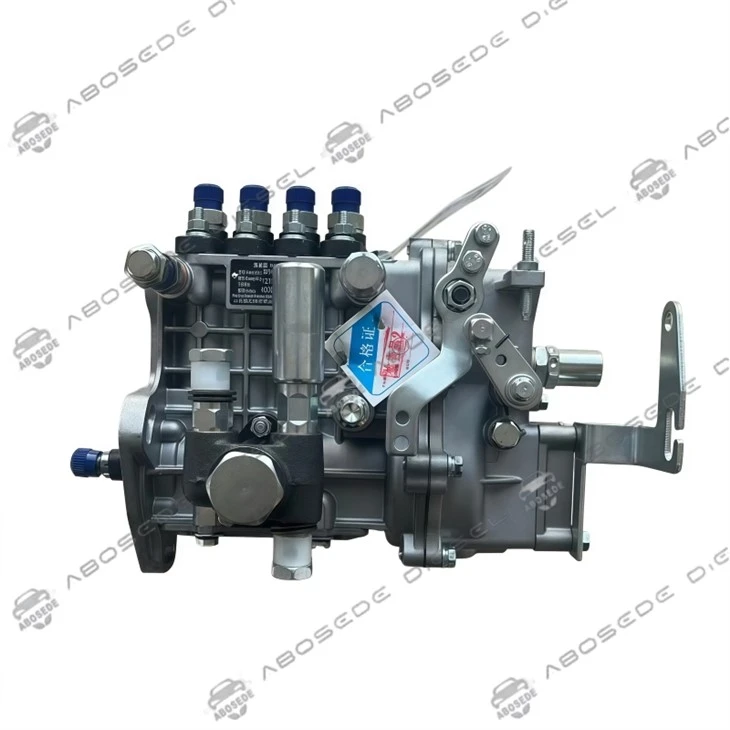

KANGDA 4QF81c (model BH4Q60R8) is a four-cylinder BQ-series inline injection pump calibrated for the Laidong LL480Q turbocharged diesel engine governed at 3000 rpm. For repair shops and parts distributors servicing Chinese light trucks and agricultural machinery, this pump represents a direct-swap fueling solution that eliminates the guesswork of cross-referencing generic BQ pumps against Laidong's specific delivery curve. The unit arrives bench-verified, ready for installation on LL480Q platforms without ECU adaptation or harness modification.

The LL480Q powers a narrow but demanding slice of the working vehicle market: Aofeng low-speed tippers, light cargo trucks, and agricultural haulers that rarely see highway duty but accumulate brutal hours under partial load. These engines run in dust-heavy environments with inconsistent fuel quality, and the injection pump absorbs the consequences. The BH4Q60R8 is not interchangeable with the BH4Q60R7 or generic four-cylinder BQ units; Laidong's delivery curve for the turbocharged 3000 rpm rating differs in plunger geometry and governor response. Shops that stock this specific code avoid the comebacks that follow "close enough" substitutions-hard cold starts, rolling idle, and black haze under throttle that no amount of timing tweaking will cure.

Timing this pump correctly requires finding the LL480Q's static advance mark on the flywheel or pump flange, not simply aligning the old pump's scribe line. The drive hub and keyway must engage cleanly; forcing the nut onto a misaligned taper damages the pump shaft and produces timing drift that mimics governor failure. After torquing the mounting bolts, verify rack travel through full throttle sweep before connecting the shutoff cable-a binding rack from a distorted flange will cause the engine to hang or refuse shutdown. Replace the fuel inlet and return washers unconditionally. On the test stand, confirm delivery against the LL480Q data sheet at the specified pump rpm; a pump that "looks right" but flows outside tolerance will produce either lazy power or excessive exhaust smoke.

In the BQ pump architecture, the plungers and delivery valves rely entirely on diesel for lubrication and cooling. Water intrusion or a restricted filter starves these surfaces, and the resulting wear manifests as rail pressure loss-except this is a mechanical system, so the symptoms appear as long cranking, low power, and governor instability rather than diagnostic trouble codes. By the time a shop has pulled the pump, sent it for resealing, and discovered that the plungers are scored beyond reclamation, the customer has been without the vehicle for a week. Keeping a KANGDA 4QF81c on the shelf converts a two-week ordeal into a same-day repair. The economics favor replacement over rebuild for this displacement class: the core's residual value rarely justifies the labor and parts cost of a full mechanical restoration, especially when the original unit's internal wear cannot be assessed without disassembly.

Q1: How do I confirm the BH4Q60R8 is the correct pump before I remove the old unit?
A: Locate the nameplate on the governor housing. The model code is stamped alongside the KANGDA order number. If the plate is missing or illegible, measure the flange bolt pattern and compare the drive hub taper to the replacement; Laidong changed flange details across LL480Q production years, and a visual match alone is unreliable.

Q2: Does this pump ship with a test report I can show a skeptical customer?
A: Yes. Each unit includes delivery and timing verification data recorded at the specified test conditions. For wholesale accounts, batch-level documentation is available for warranty registration and resale compliance.

Q3: Can I install this pump without a test stand if the engine ran before the swap?
A: You can install it, but you cannot verify delivery volume or governor behavior. A pump that idles smoothly in the bay may lean out under load or fail to reach governed speed. At minimum, perform a road-load check with a fuel pressure gauge and confirm that no-load high idle matches the LL480Q specification.

Q4: What kills these pumps fastest in the field?
A: Water in the fuel and restricted inlet flow outpace all other causes. The BQ plunger clearances are unforgiving of contamination. Shops that sell this pump should bundle a fuel filter and advise the customer to drain the water separator weekly-not monthly.

Q5: What is the warranty stance on wholesale orders?
A: Twelve months against manufacturing defects. Claims are voided by contaminated fuel evidence, improper timing, or governor tampering. Core returns are inspected for water etching and rack damage before credit is issued.
