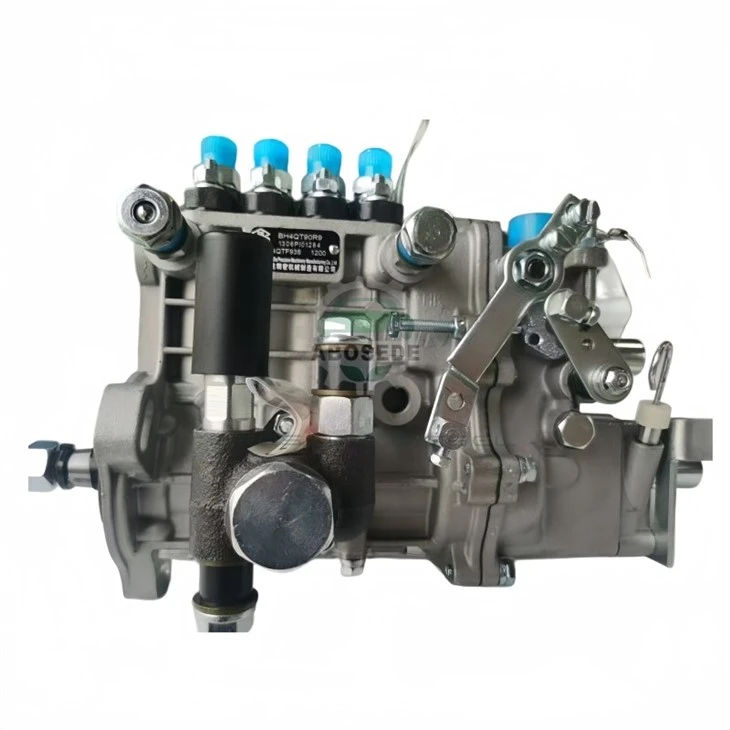

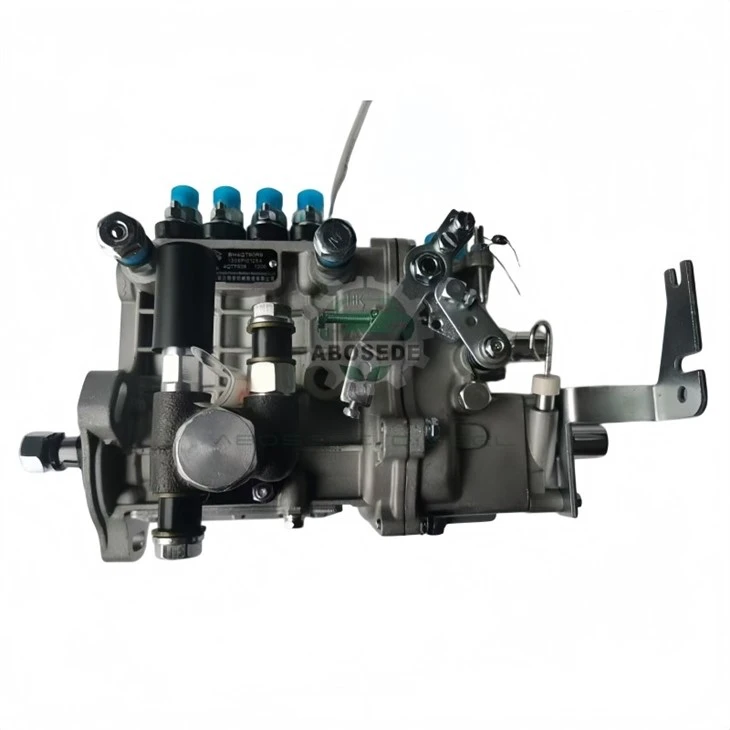

KANGDA 4Q82a/4Q82a-1 BH4Q75R8 Diesel Fuel Injection Pump For Yangdong 480 Engines

This KANGDA-built BH4Q75R8 injection pump assembly is a direct-fit replacement for Yangdong 480 series diesel engines rated at 29 kW and governed to 3000 rpm. Designed as an inline plunger-type fuel injection pump for four-cylinder direct-injection platforms, it restores precise fuel metering and delivery pressure on workhorses found in light trucks, industrial gensets, and agricultural machinery. Each unit is assembled to KANGDA's aftermarket tolerances, offering workshops a commercially sensible alternative to higher-priced OEM supply channels without sacrificing bolt-on compatibility.

The Yangdong 480 engine family is widely distributed across light-duty transport and stationary equipment in export markets, and this BH4Q75R8 pump is calibrated specifically for the 29 kW / 3000 rpm direct-injection variant . Because the 480 platform uses a 1.809L displacement with a 1-3-4-2 firing order, the pump's internal cam profile and delivery valves are matched to the engine's injection sequence and combustion chamber geometry . This unit suits three-wheel cargo vehicles, small forklift applications, and stationary fire pump or genset drives where the Yangdong 480 is specified as the prime mover . Repair facilities servicing mixed fleets will appreciate that the 4Q82a-1 order number cross-references to the common BH4Q75R8 aftermarket channel, simplifying inventory consolidation across Yangdong-powered assets.

Mounting the BH4Q75R8 requires attention to the drive coupling alignment and static timing marks before the flange bolts are torqued. The pump's 46 mm flange bore spacing is fixed to the Yangdong 480 timing case, so misalignment typically stems from a worn coupling or a damaged keyway rather than the pump housing itself. Technicians should verify that the injection pump sprocket or gear mates cleanly with the camshaft drive before setting static timing to the engine's specified lift point. Because the 480 uses a direct injection combustion system, even minor timing drift translates into hard starting, white smoke, or elevated exhaust gas temperature under load . After installation, bleed the low-pressure circuit at the filter head and crack each high-pressure line at the injector until fuel weeps, then torque the lines to spec before cranking. A post-installation governor response check at idle and mid-speed confirms that the pump's internal linkage has not been disturbed during shipping.

For an independent diesel repair shop, the decision to replace rather than reseal a worn BH4Q75R8 often comes down to turnaround economics. Resealing an aging inline pump addresses leaks but leaves the plunger-and-barrel clearances, delivery valve seats, and governor spring fatigue unaddressed-wear that silently degrades fuel delivery consistency and causes uneven cylinder balance. A complete KANGDA assembly eliminates the guesswork: every BH4Q75R8 ships with new plungers, delivery valves, and governor components already calibrated and bench-tested. For parts distributors serving agricultural and light commercial accounts, stocking the 4Q82a-1 variant alongside the base 4Q82a covers the Yangdong 480 service demand without duplicating SKUs. The commercial logic is straightforward: one box, one part number, and a drop-in fit that returns the vehicle to service within a single shift rather than tying up a bay for days awaiting a specialized pump rebuild.

Q1: Can I install the 4Q82a-1 pump on a Yangdong 480 that originally carried a different pump model?
A: Only if the engine's timing case flange and drive coupling match the BH4Q75R8 mounting pattern. The 480 platform was produced with variations across emission tiers and industrial applications; verify the 46 mm flange bore spacing and drive key orientation before ordering.

Q2: Does this pump require recalibration after installation?
A: No bench calibration is needed. The BH4Q75R8 is preset at KANGDA's facility. However, static timing must be set to the Yangdong 480 specification during installation, and idle speed should be verified against the engine data plate.

Q3: What is the realistic service life of this pump in a 3000 rpm continuous-duty application?
A: In genset or fire pump service running near 3000 rpm, expect 2,500–4,000 hours before measurable delivery degradation, provided fuel filtration is maintained. Light truck and agricultural use typically extends beyond that range due to lower average load factors.

Q4: Does KANGDA offer a core charge or return policy for old units?
A: Core policies vary by distributor. This is an aftermarket-new assembly, not a rebuilt unit, so no core deposit is typically applied. Confirm with your supplying wholesaler before returning any take-off pump.

Q5: Will this pump support biodiesel blends common in export markets?
A: Yes, up to B20 is acceptable with standard elastomer seals. For sustained B100 use or fuels with high acid values, consult your fuel supplier and consider a pump built with upgraded seal materials.

Q6: How can I distinguish a genuine KANGDA 4Q82a-1 from a low-quality copy?
A: Genuine units carry the KANGDA branding and the BH4Q75R8 model stamp on the pump body. The 4Q82a-1 order number should appear on the packaging label. Inspect the flange machining quality and confirm the governor cover fasteners are torqued and marked.
