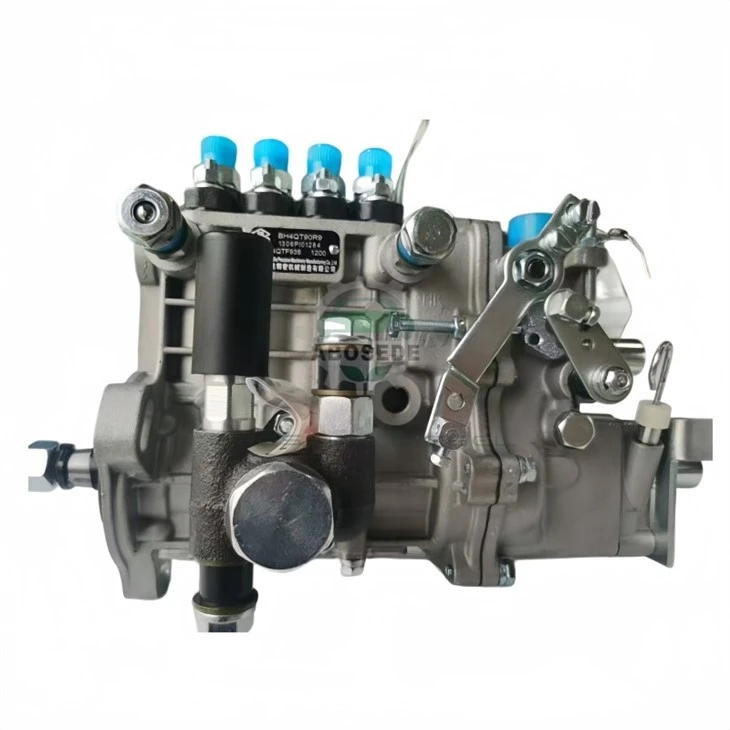

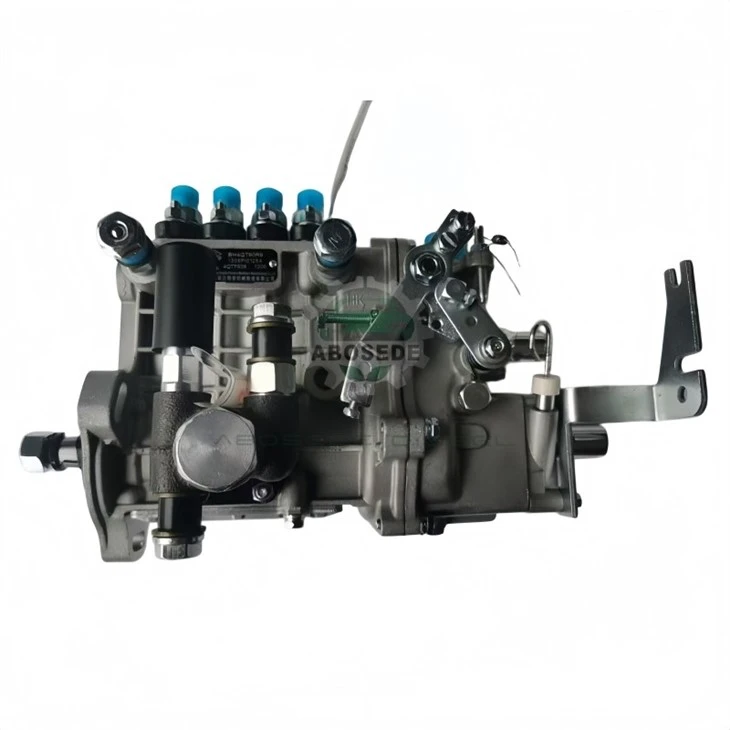

KANGDA 4Q81a-1 BH4Q60R8 Injection Pump For Laidong LL480Q Turbo Diesel Engines

Assembled by Shandong KangDa Precision Machinery, this KANGDA diesel fuel injection pump is identified by order reference 4Q81a-1 and pump model BH4Q60R8. It was developed around the Laidong LL480Q power plant, a turbocharged unit rated at 3000 rpm. Metering accuracy under sustained load defines what this BQ series mechanical pump delivers, and every unit is bench-tested for plunger sealing, delivery valve integrity, and governor response before it leaves the factory. Workshops handling Laidong-equipped machinery will find it a direct-fit replacement that requires no adapter work.

Cylinder 1 must first be brought to Top Dead Center on the compression stroke before the BH4Q60R8 is offered up to the gear housing. The pump shaft is then rotated until its timing mark lines up with the housing reference-on LL-series engines this corresponds to roughly a 9 o'clock shaft position with the engine locked at TDC. A light coat of clean diesel should be applied to the flange O-ring prior to insertion so that pinching is avoided. Mounting flange bolts are torqued progressively in a cross pattern, a step that prevents pump body distortion. At the pump outlet and injector inlets, fuel line union nuts are finger-tightened first; final torque is applied only after every line sits without stress. Bleeding follows through the fuel filter bleed screw, and the engine is cranked with the fuel shut-off solenoid energized until fuel appears at the injector lines. Rotating the pump body while mounting bolts remain loose is a mistake that can damage the delivery valve and plunger assembly through misalignment under load.

KangDa's BQ series inline pump family includes the BH4Q60R8, which uses a 4-cylinder layout matched to the LL480Q engine's 80 mm bore and 90 mm stroke. A mechanical governor governs operation, and splash lubrication is employed, so internal lubrication does not depend on engine oil pressure-an advantage for engines that sit idle for long stretches between work cycles. Plunger diameter and cam lift are calibrated against the LL480Q's fuel demand curve under turbocharged aspiration. The delivery valve holding thread is sized at M12×1.25, which keeps high-pressure line connections secure. Laidong's standard φ46/φ50 step interface is followed by the flange mounting pattern, allowing the pump to seat flush against the gear housing without shimming or adapter plates. Other KangDa BQ variants share the 4Q81a-1 order code lineage with the BH4Q60R8, yet the internal cam profile and rack travel are uniquely matched to the LL480Q's 3000 rpm governed speed.

In China's light truck and agricultural transport sector, the LL480Q engine built its reputation by powering vehicles such as the Aofeng SD2310 series and Foton BJ1010 platforms, where 30 kW output at 3000–3200 rpm is called for. These engines turn up in small tractors, harvesters, and low-speed cargo vehicles exported across Southeast Asia, Africa, and Latin America. The BH4Q60R8 pump therefore matters to repair shops and parts distributors supporting mixed fleets of Chinese-origin diesel equipment-machines that share the LL480Q block but may arrive with different pump variants over their service life. Cross-compatibility errors with the naturally aspirated BH4Q60R7 or BH4Q65R8 variants, which look superficially similar but differ in fuel delivery calibration, are avoided when the correct pump is identified by the 4Q81a-1 order number.

End-of-life failure in a BQ series pump seldom stays contained within the pump itself. Metallic particulate is released into the fuel stream as plunger wear advances, and it travels downstream to the injectors, where nozzle erosion and injector seat damage are accelerated. Replacing only the injectors while a worn pump remains in service guarantees repeat failure within a short interval. Proactive BH4Q60R8 replacement at the first signs of erratic idle, power surging under load, or extended cranking before start shields the entire fuel system from cascading contamination. Correct injection timing and delivery volume are restored by this pump, and existing injectors may still be salvageable-provided replacement happens before metal debris reaches the nozzle tips.

Q1: The nameplate is missing. How can I tell whether my LL480Q takes the BH4Q60R8?
A: Look for the 4Q81a-1 order number stamped on the pump body, which is the definitive identifier. Turbo-matched cam profiles distinguish the BH4Q60R8; naturally aspirated LL480Q units usually run a different delivery curve.

Q2: Does the pump need bench calibration before it goes on the engine?
A: No. Governor and rack travel calibration is set at the factory on every BH4Q60R8. Only if off-spec behavior appears after installation should idle speed and maximum fuel stop screws be touched in the field.

Q3: What void conditions should buyers know about regarding warranty?
A: 12-month coverage against manufacturing defects is standard. Evidence of water contamination, foreign object ingress, or field disassembly of the delivery valve assembly voids coverage.

Q4: Can a non-turbo LL480Q run this pump as a stopgap?
A: It will mount, but the fuel delivery curve is optimized for turbocharged aspiration, so over-fueling and black smoke at low rpm should be expected. Treat it as an emergency measure only and fit the correct naturally aspirated variant as soon as possible.

Q5: What makes the rack stick on BQ pumps?
A: Fuel varnish from extended idle periods, combined with ultra-low-sulfur diesel lacking adequate lubricity additive. Hunting idle and failure to return to idle when the pedal is released are the telltale symptoms. Regular fuel filter replacement is the primary preventive measure.

Q6: Are the flange gasket and mounting hardware included?
A: The BH4Q60R8 ships as a bare pump assembly. Flange O-rings, delivery valve holders, and mounting bolts are ordered separately, or reused only when inspection confirms they remain within service limits.
