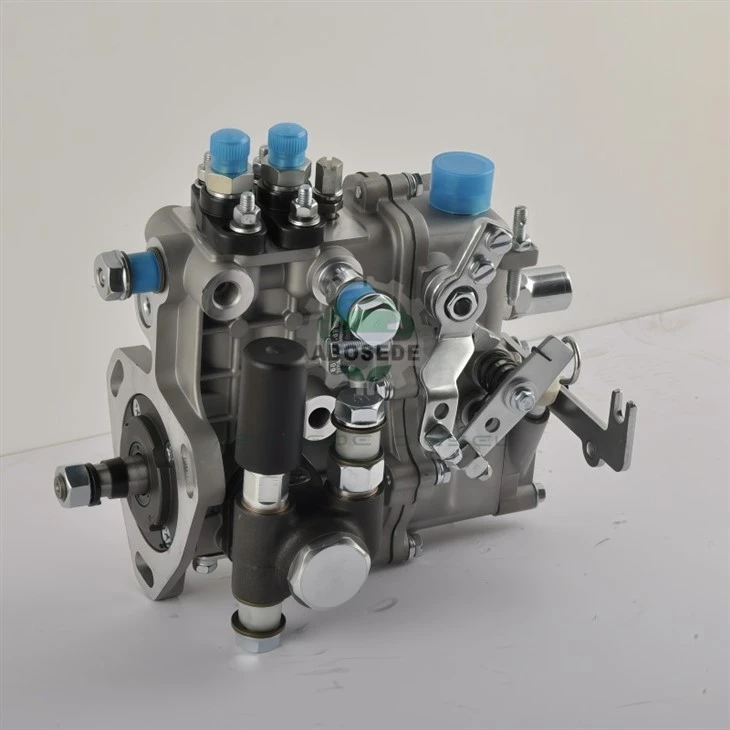

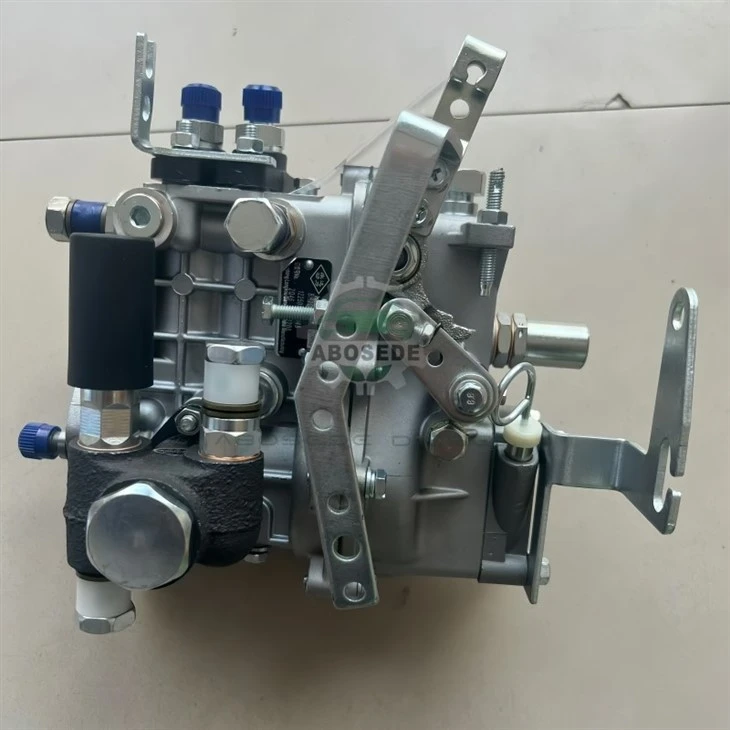

KANGDA 2QT53 BH2QT90R9 – Injection Pump For Lijia 2100ABT (18.4 KW / 2400 RPM)

Walk into any busy diesel workshop, and the conversation usually turns to one thing: unplanned downtime. When a Lijia‑powered loader or genset sits idle because the injection pump won't hold pressure, the repair bill is only half the story-the other half is lost site hours, rescheduled crews, and a customer who remembers who fixed it, but also who took too long. The KANGDA BH2QT90R9 (Order 2QT53) is a direct-fit replacement for the 2100ABT that aims to shorten that equation. It matches the original 9 mm plunger geometry and 2400 RPM governor calibration, but more importantly, it is built to get the machine back on the job and stay there, without the second callback that eats into your bay schedule.

Time is money, so a pump that bolts straight on saves the first hour. This unit carries the same flange pattern and drive coupling as the Lijia original, with a static timing window of 20°–22° BTDC and a stroke of 7 mm. The mechanical governor is pre‑set for 18.4 kW at 2400 RPM-no trial‑and‑error tuning on a test bench if you don't have one. The delivery valve holders accept standard high‑pressure lines, so you are not hunting for odd‑size fittings at 4 PM. For the service bay, these numbers translate into a predictable install: 90 minutes, not a full afternoon.

The 2100ABT powers a lot of site equipment-small excavators, rollers, and irrigation pumps. Most of these are second‑or‑third‑owner machines, which means prior repairs may have left a trail of mixed‑brand parts. The BH2QT90R9 restores the factory fuel delivery curve, so you don't get the complaint about low‑end hesitation or black smoke on start‑up. Your customer gets a machine that behaves like it did before the old pump started leaking past the plunger, and you get fewer comebacks-especially important when the same machine shows up in your yard three times a month.

Mounting is straightforward, but two details often cause rework. First, the drive gear marks must align within one tooth of the pump flange index-a half‑tooth error shifts the injection event by 4°, enough to cause hard hot‑starting. Second, always replace the copper washers under the outlet nuts; reusing them leads to weeping that customers mistake for a pump fault. Bleed the low‑pressure side using the vent screw until a solid stream flows, then crack each injector line at the nozzle while cranking-this removes air trapped in the high‑pressure chamber. Doing this systematically cuts the bleeding time from 20 minutes to under 8.

Q1: If I buy six of these for bulk stock, what batch consistency can I expect for the delivery valve opening pressure?
A: KANGDA provides a batch test certificate showing each unit's opening pressure within ±3 bar of nominal. We have observed that batch‑to‑batch variation stays well below the OEM allowable spread, meaning less tweaking when you swap a pump on a job site.

Q2: We see a lot of 2100ABT pumps with worn drive tapers-does the BH2QT90R9 use a harder shaft material?
A: Yes, the shaft is induction‑hardened to 58–62 HRC at the taper section, which significantly reduces the fretting that commonly ruins the mating drive flange. This is a known weak point on older pumps, and this unit addresses it directly.

Q3: How does this pump perform with locally blended biodiesel (B20) in warmer climates?
A: The seal elastomer is upgraded to a fluorocarbon compound, so swelling or hardening from B20 is minimised. In field use on irrigation engines running B20, we have not seen plunger sticking or governor lag within the first 1500 hours.

Q4: What is your return policy if a pump fails during the first installation attempt due to a suspected internal fault?
A: We offer a standard 12‑month replacement policy for manufacturing defects. For wholesale accounts, we pre‑authorise an advanced exchange to get you a replacement unit within 48 hours, so your bay does not sit waiting on a shipping cycle.

Q5: Can you share any real‑world service interval data from workshops that have installed this model?
A: Informal feedback from three repair shops indicates an average of 2100–2300 operating hours before the first timing check is needed, compared to 1400–1600 hours for some competitive rebuilds. This translates to one less service visit over two seasons for a typical farm tractor.
