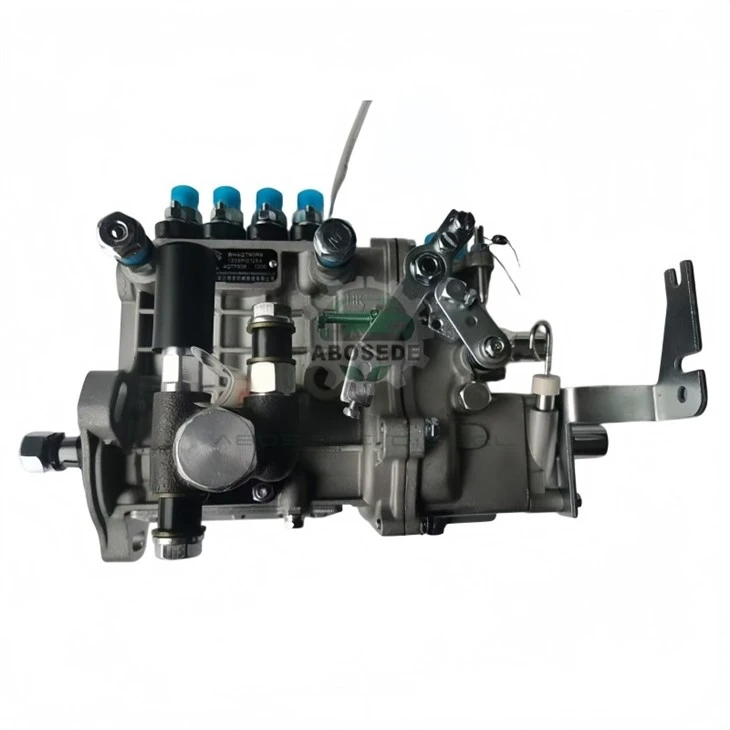

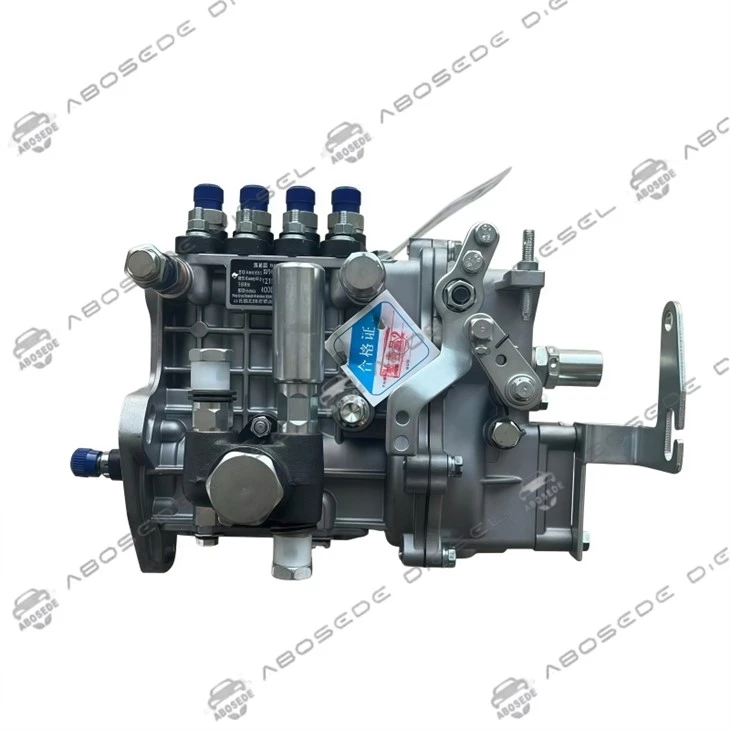

KANGDA 4Q83 BH4Q80R8 Mechanical Fuel Injection Pump For Wudong 490 Diesel Engines

The KANGDA 4Q83 fuel injection pump, catalogued under model code BH4Q80R8, is built for the Wudong 490 four-cylinder direct-injection diesel rated at 3200 rpm. Workshops and parts distributors supplying Wudong-powered tractors, loaders and gensets will find this mechanical inline assembly a straightforward service swap: plunger delivery and governor response are verified on the test bench before each unit leaves the Kangda line. The 4Q83 order number covers the complete pump, while BH4Q80R8 is the model reference buyers should quote when checking interchange.

Calibration of this BH4Q80R8 pump targets the Wudong 490 powerplant, a four-cylinder direct-injection diesel found across Chinese-origin agricultural tractors, compact wheel loaders and stationary generator sets exported to Southeast Asia, Africa and South America. Because the 3200 rpm rating sits at the high-speed end of the 490 family, the governor curve and plunger delivery have been set for machinery that needs quick throttle recovery under shifting load rather than fixed-speed running. Note that the 4Q83 number identifies the full pump assembly, not an internal subcomponent, and BH4Q80R8 is the code to use for interchange lookup. Machines arriving with fuel delivery complaints often trace the fault to worn plunger elements or a sticking metering sleeve, which keeps this pump a fast-moving stock line for distributors concentrating on diesel fuel system parts for compact industrial engines.

The table below consolidates the hard parameters required for fitment verification and parts-counter lookup.

Rotate the engine until the number-one cylinder reaches top dead center on compression, then confirm the injection pump flange marks line up with the timing cover indicator before the original pump comes off. The pump drive gear position should be marked against the flange plate prior to loosening the retaining nut; once that reference is lost, full static timing must be re-established and bay time is wasted. Immediately cap the high-pressure outlets and fuel inlet union after disconnection so grit cannot enter the delivery valves. When refitting, tighten the flange fasteners progressively in a cross pattern to the OEM torque figure instead of driving them home with an impact gun, since distorted flanges cause fuel seepage and false air ingress that masquerades as pump failure. Bleed the low-pressure circuit at the pump inlet before cranking, then crack each high-pressure line at the injector in sequence until the fuel runs bubble-free. Check idle stability and smoke opacity at no load before the machine is released.

When a Wudong 490 owner reports hard starting, power derate or black smoke under load, the real question is not repair versus replacement in principle but whether a calibrated exchange unit beats a bench overhaul whose cost may outrun the machine's residual value. The BH4Q80R8 assembly ships from KANGDA with the governor and delivery valves preset, which removes the need for a local injection pump test bench that many independent shops in export markets simply do not run. That counts when a tractor is blocking a harvest window or a generator is holding up a cold-chain facility. Plunger-and-barrel clearances inside this pump are measured in microns, so contaminated fuel or a neglected water separator will wear them out long before the camshaft or bearings show distress. Shops carrying this unit find the 4Q83 number moves steadily alongside filter kits, mainly because the failure mode is predictable and the call is easy once delivery volume drops below the engine's starting threshold.

Q1: After fitting the 4Q83 to a Wudong 490, is recalibration on a bench necessary?
A: Not if static timing is correct and the original drive gear index has been kept. Governor and delivery settings are locked in at assembly.

Q2: Which fuel system symptoms point to replacement rather than adjustment of this pump?
A: White smoke that persists at operating temperature, low delivery at the injector nuts and return flow above specification together suggest internal leakage past the plunger elements. Worn clearances cannot be recovered by adjustment.

Q3: Will this BH4Q80R8 pump tolerate the biodiesel blends sold in export markets?
A: B7 to B20 is acceptable where fuel quality stays consistent and the water separator is drained on schedule. Blends above that speed up elastomer seal degradation, so service intervals should be shortened.

Q4: How does a distributor check stock rotation on this part number?
A: Inspect the flange face for corrosion and turn the pump shaft by hand to confirm it moves freely. A sealed unit with outlet caps in place has no shelf-life limit.

Q5: What installation mistake most often causes early failure?
A: Skipping the low-pressure bleed before cranking. The transfer pump section runs dry and scours the plunger surfaces before fuel reaches the high-pressure head.

Q6: Can buyers find this pump listed under another order number?
A: The BH4Q80R8 model code is the main interchange reference. Certain catalogues file the same assembly in the 4QF-series family, though the 4Q83 order number remains the most direct lookup.
