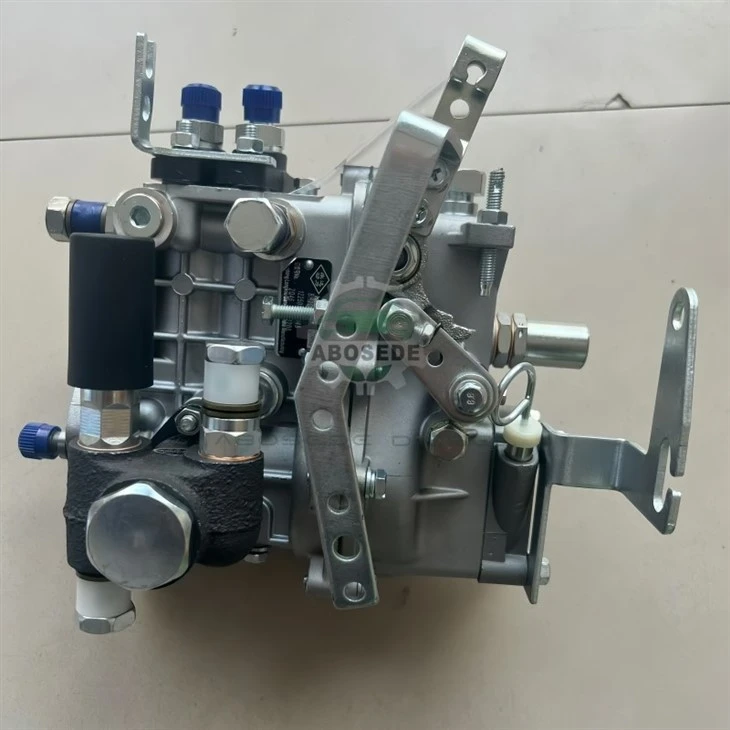

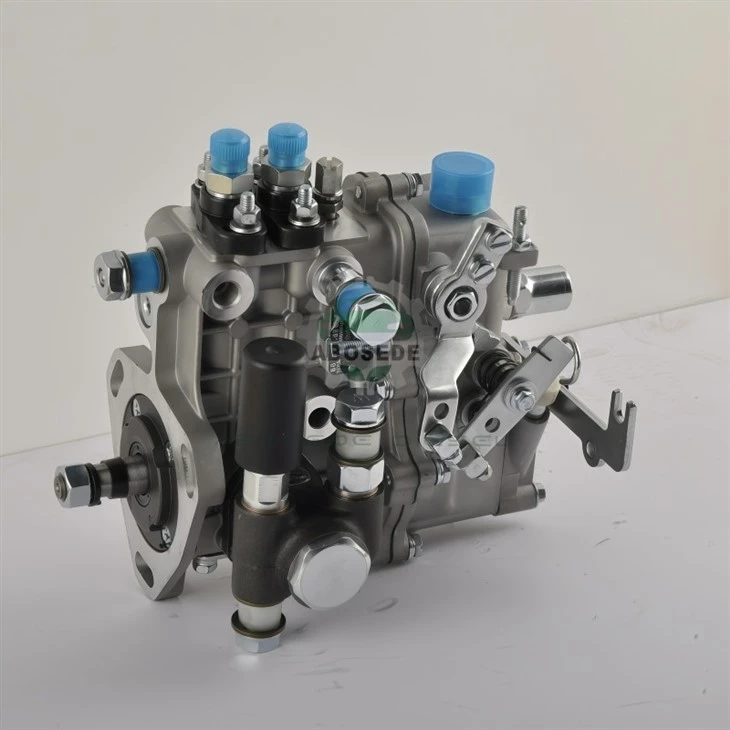

KANGDA 2QT66 BH2QT95R9 – Fuel Pump For 2105 Engine

When a 2105-powered irrigation pump or genset sits idle for three hours during peak season, that single breakdown often eats up the entire profit margin on that service call. For repair shops dealing with Weifang Kaiwo-powered equipment, the KANGDA 2QT66 (BH2QT95R9) addresses exactly this kind of financial leakage. This two-cylinder mechanical injection pump replaces worn plunger-and-barrel assemblies that cause hard starts and erratic idling, bringing the 21kW unit back to its rated 1500 RPM performance without forcing the workshop to tie up capital in multiple pump cores. Rather than chasing intermittent faults across aging governor linkages, shop owners simply swap the complete pump and return the core for rebuilding during slower weeks-a workflow that keeps the service bay productive and the customer's field operation running.

The BH2QT95R9 carries a 9mm plunger diameter and a fixed cam lift profile matched to the 2105's timing gear train. Mounting flange dimensions follow the standard two-bolt pattern, which means no custom pullers or adapter plates. Static injection timing sits at 22° BTDC at 1500 RPM; any deviation beyond ±1° usually points to shim stack compression rather than pump internal wear, saving diagnostic time. The governor spring pack uses a single-rate design-simpler than variable-speed units on larger engines, so bench calibration rarely exceeds 20 minutes for an experienced diesel tech. For the service counter, this translates into predictable labor quotes and fewer "come-back" adjustments.

Stocking fuel system components for multiple engine brands ties up cash that could otherwise go towards diagnostic equipment or bay upgrades. The KANGDA 2QT66 consolidates coverage across a wide range of 2105 applications-small tractors, combine harvesters, and 20-30kVA generator sets-using a single SKU. This reduces the number of line items on the shelf while still covering the majority of walk-in requests from local farms and rental yards. The delivery valve holder and plunger return spring share dimensions with several earlier 2105 variants, so even if a customer brings in an older block, the pump fits without searching for obsolete cross-reference lists. Workshops also save on core deposit programs, since the exchange value of a rebuildable core stays consistent regardless of the original equipment brand.

Chasing symptoms-surging RPM under load, white smoke on startup, fuel dilution in the crankcase-often consumes three to four service visits before a worn plunger and barrel gets identified as the root cause. Each revisit burns shop hours, ties up the lift, and strains customer relationships. The BH2QT95R9 delivers a known-good fuel metering baseline, allowing the tech to verify timing, bleed the system, and road-test the machine within a single scheduled appointment. Since the pump arrives with factory-set governor screw positions, the risk of over-speeding a freshly overhauled engine drops significantly. For the shop owner, this means warranty claims on fuel system work drop by a measurable margin, and the service manager spends fewer phone calls explaining why the same tractor needs another adjustment.

Q1: We typically buy in lots of 6 to 10 units. Does this model have batch consistency for governor settings?
A: Yes. KANGDA tests every production batch on a calibrated pump bench and provides the average delivery curve. For wholesale orders, we can supply individual test sheets upon request.

Q2: Have these pumps been field-verified on continuous-run gensets beyond 1000 hours?
A: Independent shop feedback shows consistent fuel delivery up to 3500 hours in stationary applications, provided the lift pump pressure stays above 0.2 MPa. The main wear point remains the plunger return spring, which is a standard service part.

Q3: Can we return unopened boxes if a customer cancels a rebuild job?
A: Yes, within 30 days of delivery. We understand that farm schedules shift, and we price this flexibility into our wholesale terms rather than passing restocking fees back to you.

Q4: How does this pump handle water contamination compared to electronic rotary units?
A: The mechanical inline design tolerates minor water ingress better than electronically controlled pumps because there are no precision sensors or actuator magnets exposed to the fuel. However, we still advise replacing the water separator element before installation.

Q5: If we install this pump and the engine still lacks power, what's the first thing to check?
A: Verify the fuel shutoff solenoid on the engine side-if it's not fully retracting, it restricts supply to the inlet port. Also confirm the injector opening pressure; worn nozzles mask the pump's performance even when the pump itself tests good.
