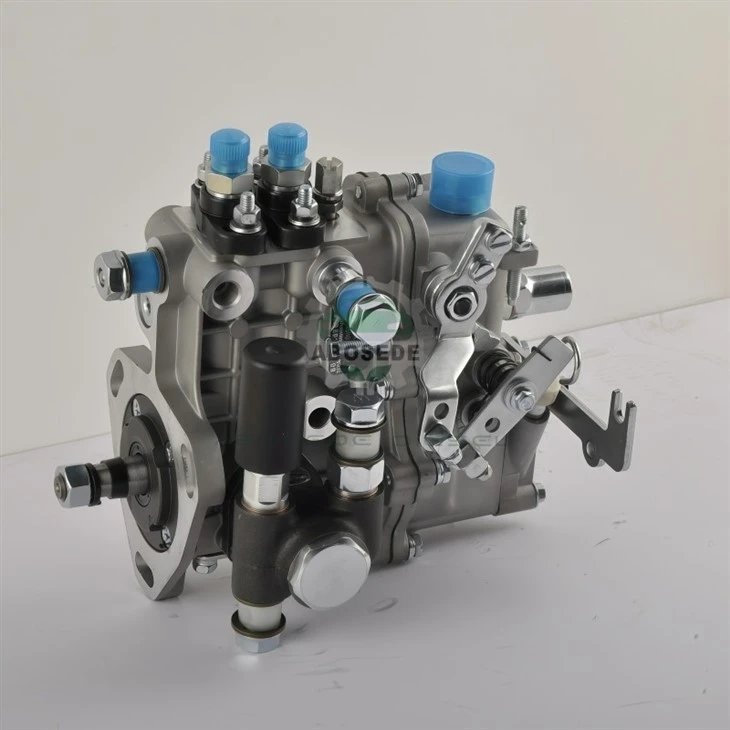

KANGDA 2QT59 / BH2QT90R9 – Injection Pump For Laineng LN2110

Workshop engineers and parts buyers specify the KANGDA 2QT59 (pump model BH2QT90R9) when servicing the Laineng LN2110 diesel power unit. This mechanical in-line pump delivers the fuel quantities needed for 27 kW output at 2200 RPM. Without relying on electronic controls, the unit offers a straightforward solution for agricultural machinery and stationary plant equipment where dependability under load matters more than complex diagnostics.

Cleanliness during fitting directly determines post-installation performance. Before bolting the BH2QT90R9 to the LN2110 drive housing, inspect the drive gear backlash – acceptable range sits between 0.10 and 0.20mm. Align the pump flange timing mark with the flywheel TDC reference point; any deviation here alters injection advance and reduces power delivery. Critical precaution: never rotate the crankshaft while high-pressure lines remain disconnected, because the BH2QT90R9 relies on fuel circulation for internal bearing lubrication. Replace all copper sealing washers at delivery valve holders and torque those holders to 40–45 Nm using a calibrated wrench. After mounting, purge air via the injector return line, then verify plunger lift with a dial gauge against the factory lift curve. For workshops accustomed to common rail systems, the mechanical setup saves time – no diagnostic interface, no coding, no relearn routines.

Manufacturers fitted the BH2QT90R9 as original equipment to the Laineng LN2110, a 2.1-litre engine found in compact tractors, generator heads, and self-priming irrigation pumps across European agricultural regions. Beyond the LN2110, the 2QT59 calibration matches engines sharing the BQ-series pump mounting flange and drive shaft orientation – some Yanmar 2-cylinder industrial derivatives and early Kubota blocks accept this pump, although shaft taper verification remains mandatory. Repair depots maintaining mixed fleets will find the mechanical governor advantageous in high-vibration environments where ECU-controlled pumps frequently flag sensor errors. The 27 kW continuous rating makes this SKU relevant for backup gensets and marine auxiliary drives, provided the rotation direction matches the application.

Construction uses high-strength cast iron with a protective coating that withstands B20 biodiesel blends without flaking. The inlet thread measures M14×1.5, while outlet ports accept 6mm OD high-pressure steel lines. Maximum injection pressure reaches 1200 bar – a figure achieved through the 9mm plunger stroke within the barrel assembly. The BH2QT90R9 designation encodes the specific cam lift profile and delivery valve timing calibrated for the LN2110's combustion chamber characteristics. Replacement service kits (gaskets, plunger barrels, delivery valves) remain available through wholesale channels. Compared to electronically governed pumps, this unit's mechanical governor responds directly to speed changes via flyweight action, delivering fuel corrections without signal latency – a trait valued in sudden load applications like wood chippers or hydraulic power packs.

Q1: Is this BH2QT90R9 interchangeable with a common rail pump on the LN2110?
A: No – the LN2110 was never produced with a common rail system. This mechanical pump is the correct factory-specified type for that engine block.

Q2: What mileage or hours can a workshop expect before plunger wear appears?
A: With 250-hour fuel filter changes and water separator maintenance, the plunger/barrel set typically exceeds 8000 operating hours before cold-start timing drifts noticeably.

Q3: Does the 2QT59 ordering number include the drive coupling or gear?
A: The package contains the pump assembly only. Reuse your existing drive gear and coupling, or order Laineng-specific adapters separately through our commercial team.

Q4: How do we verify correct fuel calibration for the 27 kW LN2110 application?
A: The factory calibration is locked by the 2QT59 code. As a quick check, measure delivery valve opening pressure – it should read 175 bar. Any significant variation suggests a mismatched core.

Q5: Are overhaul kits stocked for this KANGDA pump model?
A: Yes – plunger barrels, delivery valve sets, and complete gasket kits are held in inventory for the BH2QT90R9. Volume discounts apply for trade buyers.

Q6: What guarantee covers wholesale orders of these pumps?
A: A 12-month manufacturer's warranty against material or workmanship defects applies. Extended coverage terms are negotiable for fleet maintenance contracts.
