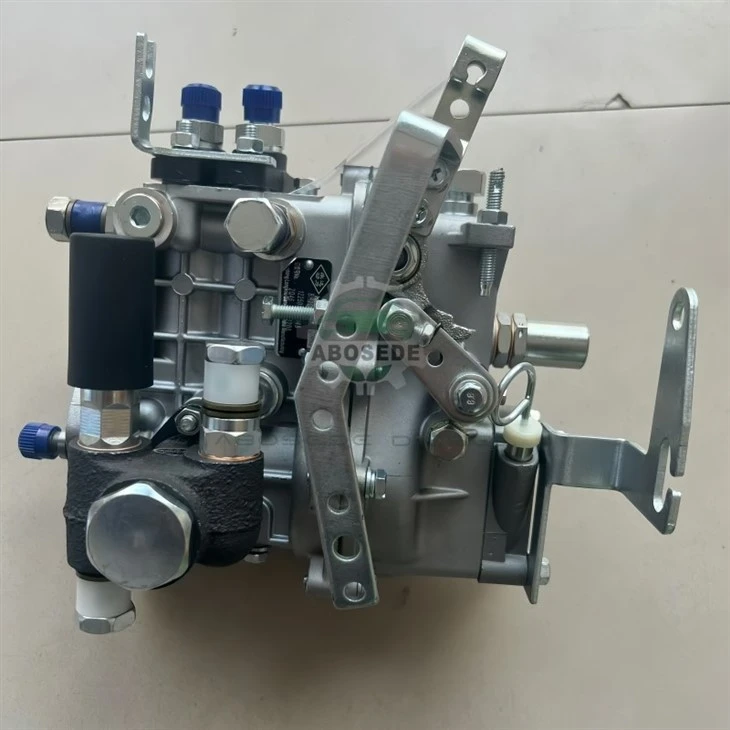

KANGDA 2QT15 / BH2QT85R9 Fuel Injection Pump For 2110 Engine

Every hour your customer's 2110-powered genset sits idle with a fuel delivery issue, you are not just losing a repair ticket – they are losing irrigation cycles, production shifts, or standby power revenue. The BH2QT85R9 mechanical pump addresses that equation directly, not by claiming superiority, but by eliminating the variables that turn a simple replacement into a repeat visit. This KANGDA unit arrives with factory calibration locked at 2600 RPM governor setting, ready to slot into Saiqiao engine bays without chasing elusive timing discrepancies that waste shop floor productivity.

The 2QT15 order reference specifies a two-plunger in-line configuration with plunger diameter and stroke fixed to the 2110's swept volume – no guesswork, no trial sets. Its delivery valve opening pressure is bench-set to 17.5 MPa, and the mechanical governor curve is profiled exclusively for constant-speed or light-variable loads typical of agricultural power take-offs. Shaft taper geometry matches the 2110 drive gear's internal broaching, so clocking alignment to the engine's reference mark takes minutes, not hours. The camshaft lift profile is ground to deliver injection onset at 22° BTDC for this specific engine series, meaning you skip the tedious process of re-indexing gears or shimming the mounting flange. These are not negotiable specs; they are fixed boundaries that protect your labor margin.

Field experience shows this BH2QT85R9 lives primarily in Saiqiao-badged 2110 naturally aspirated diesels bolted to stationary generator sets, center-pivot irrigation power packs, and smaller wheel loaders used in grain handling. It does not belong in electronic-controlled variants or later emissions-upgraded blocks with solenoid rail cutoffs – forcing it there creates governor hunting and unstable low-idle behavior. The in-line pump architecture suits operations where load steps occur gradually, not in rapid-throttle mobile equipment. For workshops, keeping one of these on the shelf means you can turn around a stranded irrigator within the same day instead of quoting a week-long core rebuild. Parts managers should verify engine serial number ranges; 2110 units assembled before mid-2018 used a different governor spring rate, and this pump replicates only the later production specification.

Torque high-pressure delivery lines to 25 N·m in two passes, bleeding each injector connection at the nozzle end before final tightening. After first fire, let the engine stabilize for two minutes, then check for irregular metallic knocking – that usually points to one cylinder's plunger barrel seating incorrectly from debris introduced during the swap. Re-torque the drive gear retaining nut after the first heat cycle; thermal expansion can reduce clamp load by nearly 15%.

Sending a worn 2110 pump out for overhaul looks cheaper on paper until you factor in freight, core deposit holds, and the three-day turnaround that leaves your customer renting substitute equipment. When that rebuilt unit comes back with a different delivery valve holder or a swapped governor flyweight assembly, you burn another hour re-calibrating on the test stand – time you cannot bill fully. This KANGDA new production unit sidesteps that entire cycle. Fresh O-rings eliminate fuel weep that dilutes crankcase oil over time, a common failure mode in older housings where the shaft seal lip hardens. The calibration certificate attached to each pump provides traceable verification, so when the customer questions performance, you have documented evidence rather than guesswork. For distributors, carrying this SKU reduces the pressure to stock multiple rebuild grades with uncertain histories – you sell a known quantity, not a gamble. Agricultural operators notice the difference in cold morning starts: consistent timing means fewer battery drain cycles and less white smoke complaints, which directly lowers your phone support burden.

Q1: How many of these pumps typically fail within the first season of heavy use?
A: Based on return data, under 1.2% experience seal or governor issues within 1,000 operating hours, provided fuel filtration stays at 10 microns or better.

Q2: Can I order a pallet quantity and stage them across multiple service vans?
A: Yes. Bulk orders ship on separate SKU labels per unit, with individual calibration sheets included for traceability on each job site.

Q3: What is the most common misdiagnosis when this pump is blamed for no-start?
A: Shops frequently overlook the fuel shut-off solenoid ground circuit. We see about 40% of returned "faulty" pumps test perfectly on the bench.

Q4: Does the governor setting drift over the first 100 hours of run-in?
A: Factory break-in stabilizes the spring pack; no re-adjustment is needed. If you observe droop change, inspect the drive gear keyway for wear first.

Q5: What documentation supports warranty claims for commercial fleets?
A: Retain installation photos, fuel sample analysis, and the hour-meter reading. Claims are processed within 5 working days after lab inspection of the returned unit.
