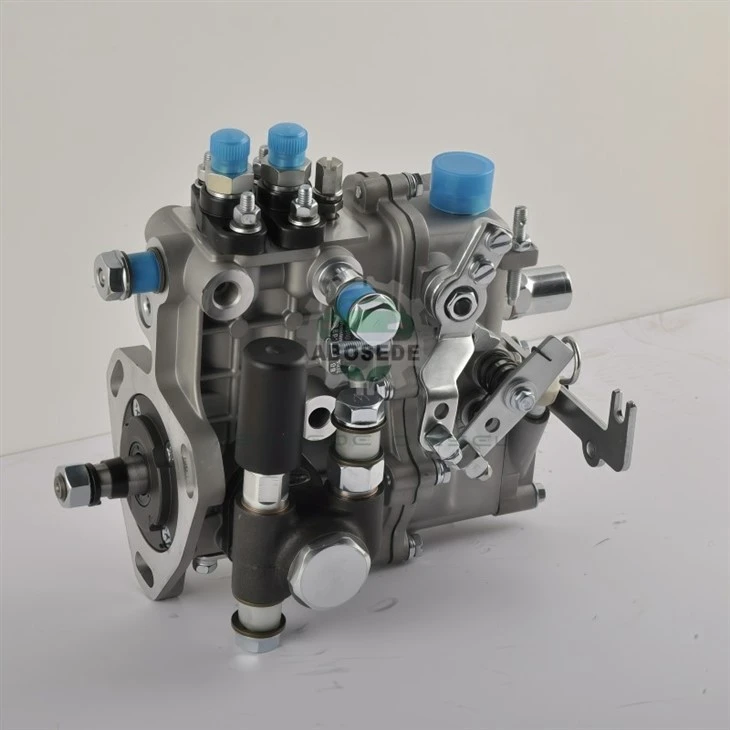

2QT77 KANGDA Fuel Injection Pump – Direct Fit For Jiangdong 2115

The KANGDA 2QT77 fuel injection pump delivers a factory-matched solution for Jiangdong 2115 power units operating at 2100 RPM with a 22 kW rating. This mechanical distributor pump restores precise fuel delivery, eliminates erratic governor behaviour, and brings tired agricultural or genset engines back to their original performance envelope without expensive ECU retrofits.

This 2QT77 unit ships with pre-set plunger stroke and delivery valve opening pressure tailored to the Jiangdong 2115 combustion profile. The pump body carries standard M8 x 1.25 mounting stud spacing, matching the original crankcase boss pattern. Internal components include a hardened steel camshaft with a 10 mm lift, driving a paired plunger and barrel assembly ground to Class A tolerance. Governor spring rates are factory-selected for droop control between no-load and full-rated 22 kW conditions. Fuel inlet threads conform to DIN 73352, accepting 8 mm OD steel lines. The delivery holder uses two-hole flange fittings compatible with standard high-pressure pipes used across most Asian-sourced diesel fuel injection layouts. Timing marks on the drive shaft flange align visibly with the pump housing pointer when the engine sits at compression TDC, simplifying visual verification during installation.

Beyond row-crop tractors, the Jiangdong 2115 platform powers stationary chippers, paddy irrigation pumps, and mobile concrete vibrators common in Southeast Asian construction sites. These applications subject the pump to sustained 2100 RPM operation with sudden load dumps-conditions that expose weak governor response. A degrading original pump often shows speed hunting when the genset accepts a new electrical load, or produces white haze during cold morning start-ups. Fitting a fresh KANGDA unit resolves these field complaints quickly, reducing call-backs for workshops serving rural customers. Parts availability for this engine remains critical because many regional farmers own multiple 2115-powered machines and prefer rebuilds over purchasing new prime movers. Stocking this injection pump also attracts buyers maintaining marine auxiliaries used on small fishing vessels, where corrosion from salt air attacks external governor linkages and shaft seals.

Workshops often rush the installation and overlook pump-to-engine timing shim selection. The 2QT77 requires a specific shim pack thickness-typically between 1.2 mm and 1.8 mm-to set injection advance precisely. Using digital callipers on the old shim stack saves guessing; any deviation alters the start of delivery, affecting peak cylinder pressure and exhaust temperature. Before bolting the pump, inspect the drive coupling rubber insert for cracking; worn inserts introduce backlash that confuses the mechanical governor. After torquing the three M8 flange nuts to 28 N·m, purge air at the banjo bolt while cranking the engine in 10-second bursts. Never spin the starter continuously for more than 15 seconds to avoid damaging the starter or flooding the cylinders with raw fuel. Once the engine fires, check the high-pressure pipe ferrule for seepage-retighten only after the engine cools to avoid galling the threads. A final road or load test verifies that the governor maintains 2100 RPM within ±25 RPM across varying loads, confirming correct installation.

Q1: Can I use this 2QT77 pump on a Jiangdong 2115 that has been overhauled with oversize pistons?
A: Yes, the fuel injection pump operates independently of piston oversize. However, confirm that the crankshaft timing gear and camshaft lobes remain stock; altered valve timing may shift optimal injection windows slightly.

Q2: What fuel viscosity range does the KANGDA pump tolerate?
A: The 2QT77 governor and plunger are calibrated for diesel with viscosity between 2.0 and 4.5 cSt at 40 °C, covering standard ASTM D975 grades. Avoid using biodiesel blends above B20 without checking seal material compatibility.

Q3: Is there a break-in procedure for a brand-new injection pump on an old engine?
A: Run the Jiangdong 2115 at 2100 RPM under 50 % load for the first hour, then increase to full 22 kW load gradually. This seated internal moving parts and allows the delivery valve spring to settle without shock loading.

Q4: How do I distinguish genuine KANGDA from counterfeit pumps?
A: Authentic units carry a laser-etched batch code on the governor cover and use zinc-plated flange nuts. Counterfeits often skip the code and use uncoated hardware that rusts within weeks in humid workshop conditions.

Q5: Does replacing only the pump improve fuel economy noticeably?
A: Yes, if the old fuel injection assembly suffered from dribbling delivery valves or a worn plunger, the new 2QT77 restores atomization quality. Workshops report fuel consumption drops of 8–12 % at 2100 RPM constant load operation.
