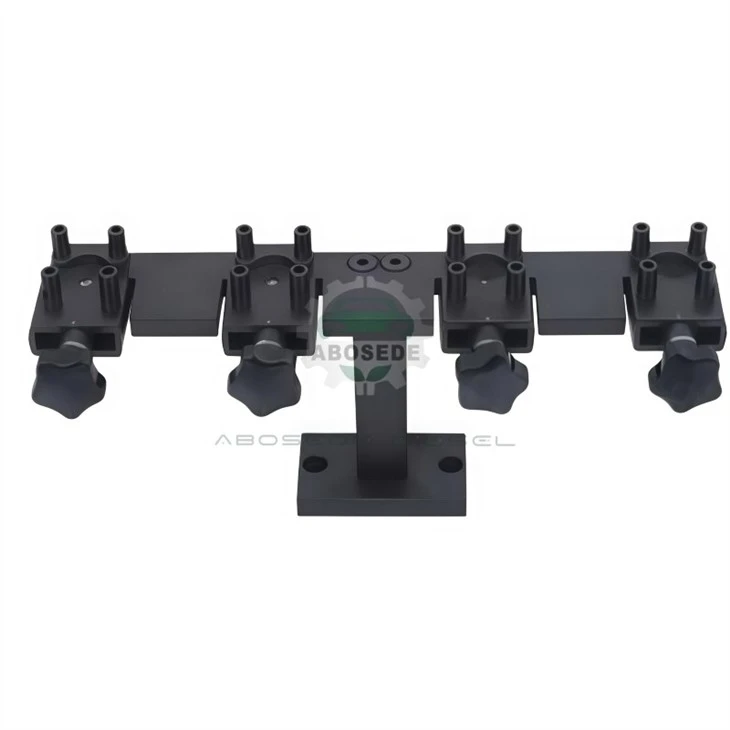

T04 Injector Stand – Precision Holding Fixture For Common Rail Diagnostics

The T04 Injector Stand is a professional-grade mounting solution engineered to address the inherent instability and alignment challenges technicians face when servicing high-pressure Common Rail Diesel (CRDI) injectors. Moving beyond the limitations of conventional vices, this stand provides a rigid, multi-axis platform that securely accommodates a wide spectrum of injector bodies. It effectively eliminates the risk of mechanical damage during torque-intensive procedures and ensures that critical diagnostic measurements are conducted under perfectly repeatable conditions, bridging the gap between basic disassembly and precision flow-bench calibration.

Constructed from high-grade alloy steel with a corrosion-resistant finish, the T04 Injector Stand is built to withstand the punishing environment of a high-volume diesel workshop. The unit features a robust mounting plate and a finely machined rotatable insert, which provides 360-degree accessibility for the technician . This configuration allows for infinite adjustment of clamping jaws, accommodating injector body diameters typically ranging from 20mm to 45mm without the need for additional adapter plates. The stand utilizes a clamping screw mechanism that guarantees a secure lock on the injector body, preventing vertical or horizontal displacement during the removal of high-torque nozzle nuts . This ensures that the force applied during disassembly is absorbed by the stand rather than the sensitive internal components of the injector, preserving the integrity of pilot valves and needle lift sensors.

Designed for universal application, the T04 Injector Stand delivers broad compatibility across all leading CRDI systems, including Bosch, Delphi, Denso, and Siemens injectors . Whether servicing common rail injectors for light-duty vehicles, heavy-duty commercial trucks, or off-highway machinery, this stand provides a stable foundation for a variety of tasks. It is the ideal companion for stage 3 repair processes, specifically for performing injector stroke measurements and setting the precise valve clearance required for optimal hydraulic performance . Unlike product-specific mounting plates that limit versatility, this universal design ensures that a single workstation can handle the diverse flow of injectors passing through a modern diesel repair facility, making it a high-ROI asset for independent workshops and fleet maintenance operations .

Bosch: 0445 120 series (e.g., 0445120123, 0445120007, 0445120059, 0445120121, 0445120070, 0445120231, 0445120078, 0445120393)

Bosch: CRIN, CRI, solenoid and piezo variants

Denso: HP0, HP3, HP4 series, CRIN2

Siemens: Piezo and solenoid injectors

The T04 Injector Stand is not merely a holding device but a strategic tool for minimizing costly comebacks. In the high-stakes environment of diesel fuel injection repair, the precision of the repair is directly reliant on the stability of the fixture. By providing a rigid platform, this stand enables technicians to accurately perform plunger stroke calibration and measure the armature lift, ensuring that the rebuilt injector meets the manufacturer's strict tolerance limits for injection quantity and spray pattern. This precision directly translates to reduced engine vibration, improved fuel economy, and lower emissions for the end-user. It protects the workshop from the liability of premature injector failure due to internal misalignment, thereby reinforcing the shop's reputation for reliable, high-quality diesel engine overhauls.

Q1: Is the T04 compatible with Bosch CRI piezo injectors, or is it limited to solenoid types?
A: The T04 stand is mechanically universal. Its adjustable jaws and clamping mechanism are designed to securely hold both Bosch solenoid injectors and the wider bodies commonly found in piezo injector variants. It does not interface with the electrical driver circuit, so it is compatible for disassembly and mechanical calibration of all physical injector sizes .

Q2: Will the rotatable insert accommodate a rigid high-pressure steel line without bending it?
A: Yes. The rotatable insert allows the injector to be turned relative to the stationary mounting plate. This facilitates the perfect alignment of the injector inlet with your test bench's rigid high-pressure line, preventing lateral stress and ensuring a leak-free connection during testing .

Q3: What is the maximum torque the clamping screw can withstand to prevent the injector from spinning?
A: The clamping screw exerts substantial force on the float-mounted jaws to secure the injector body. The stand is engineered to comfortably handle the high torque required to loosen and tighten injector nozzle nuts (often exceeding 100 Nm), ensuring the injector remains static and the risk of technician injury is minimized .

Q4: Does this stand come with the necessary adapters to fit Denso injector sizes, or must they be purchased separately?
A: The stand is designed with a variable aperture and adjustable jaws. This eliminates the need for specific size adapters for most common injector diameters, including Denso HP0/HP3 series. The float-mounted jaws adapt to the injector's width across flats (WAF) automatically during clamping .

Q5: Is the T04 built with corrosion resistance to withstand diesel fuel and cleaning solvents?
A: The stand is manufactured from high-strength steel with a robust protective coating to resist corrosion and pitting from exposure to diesel fuel, penetrating oils, and ultrasonic cleaning fluids, ensuring long-term durability in a harsh workshop environment .

Q6: Will this stand fit on my existing Bosch EPS or DCI test bench mounting holes?
A: The T04 features a stationary mounting plate with standard slots for Allen bolts. It is designed to be retrofitted onto most workbenches or specifically bolted down onto existing test bench bases, offering a universal mounting solution .
